Overview

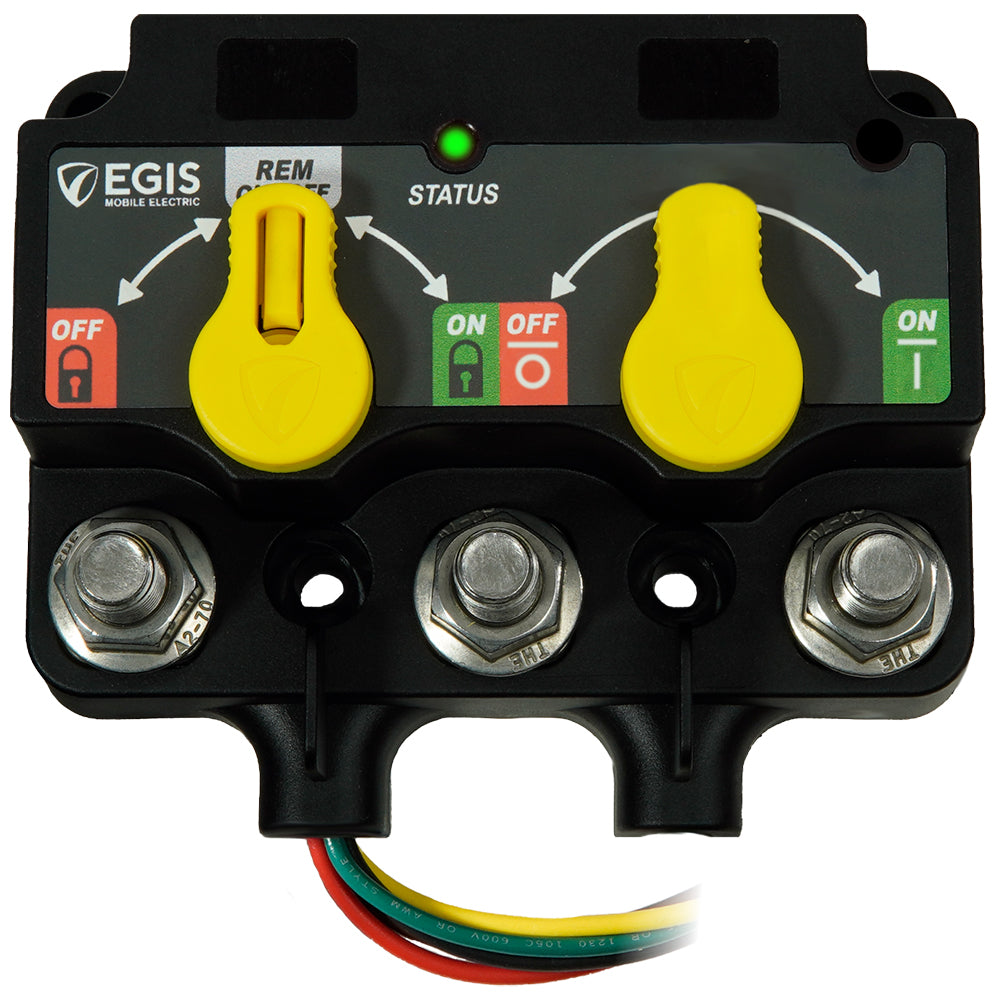

Bring battery switching and charge management together with the Egis XD Series Dual Flex 2. For multi-battery installations, this compact module replaces two separate high-amp relays and removes the external link cables between them.
Key features
- Combined relay packaging reduces the space needed for separate devices and their connecting cables.
- Manual control knobs make override operation and locked-on or locked-off states easier to identify.
- DIP switches let installers configure relay functions for the electrical system.
- Link and cross-link busbar accessories allow expansion with other single, dual or triple XD relays.
- A front-facing LED provides a visible indication of device status.
- Sealed construction and stainless steel cable lug studs support installation in demanding environments.
Specifications
- Series: XD
- Model: Dual Flex 2, ACR-Mech Only
- Configuration: Knobs and flying wires
- Total continuous current: 500 A
- Maximum cranking current: 1500 A
- Voltage range: 8–36 VDC
- Off-state current draw: 1.3 mA
- State-change current: 5 A at 12 VDC; 3 A at 24 VDC
- Mechanical switching life: 1,000,000 cycles
- Sealing ratings: IP67/IP6K9K
- Cable lug stud material: Stainless steel
- Mounting hardware size: 1/4-20 or M6
Good to know
Standard busbar interconnect accessories support two- or three-battery systems.
Specifications
| Brand | Egis Mobile Electric |
|---|---|
| Manufacturer part # | 8720-1390 |
| UPC | 850053879494 |
| Boxed dimensions | 8 x 4 x 3 in |
| Shipping weight | 1.7 lb |
