Egis Mobile Electric

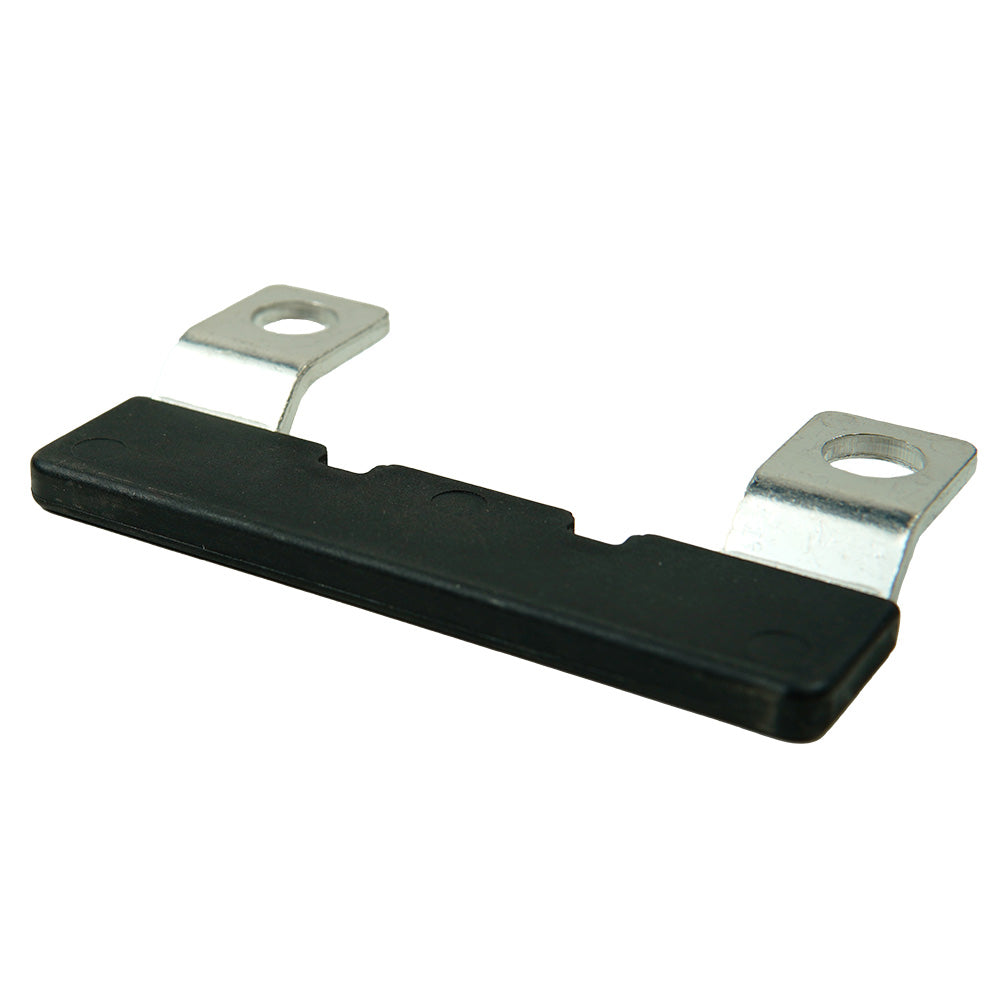

Egis XD Relay Cross-Over Bus Bar

Egis XD Relay Cross-Over Bus Bar

OM-EGISMOBILEEL-XDRELAYCROSS-8791

$20.24
$20.24
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis XD Relay Cross-Over Bus Bar connects Egis XD relays in compact electrical layouts. It can be used to join XD Single, Dual, and Triple XD Relays in different arrangements, including connections with the Egis 8700 Mechanical Disconnect.

  • Brand: Egis Mobile Electric
  • Product type: Relay cross-over bus bar
  • Compatible with: Egis XD Single, Dual, and Triple XD Relays
  • Also works with: Egis 8700 Mechanical Disconnect
  • Continuous current: 500 amps
  • Maximum voltage: 72 VDC
  • Material: Tin-plated copper
  • Size: 90 x 47mm
  • Thickness: 2.8mm (1/8 inch)
  • Terminal stud hole size: 10.5mm (3/8 inch)
  • Insulation: Protective insulation helps prevent accidental contact shorts between XD relays
  • Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

BrandEgis Mobile Electric
Manufacturer part #8791
UPC850035199886
Boxed dimensions5 x 3 x 3 in
Shipping weight0.6 lb
Country of originCHINA
