Egis Mobile Electric

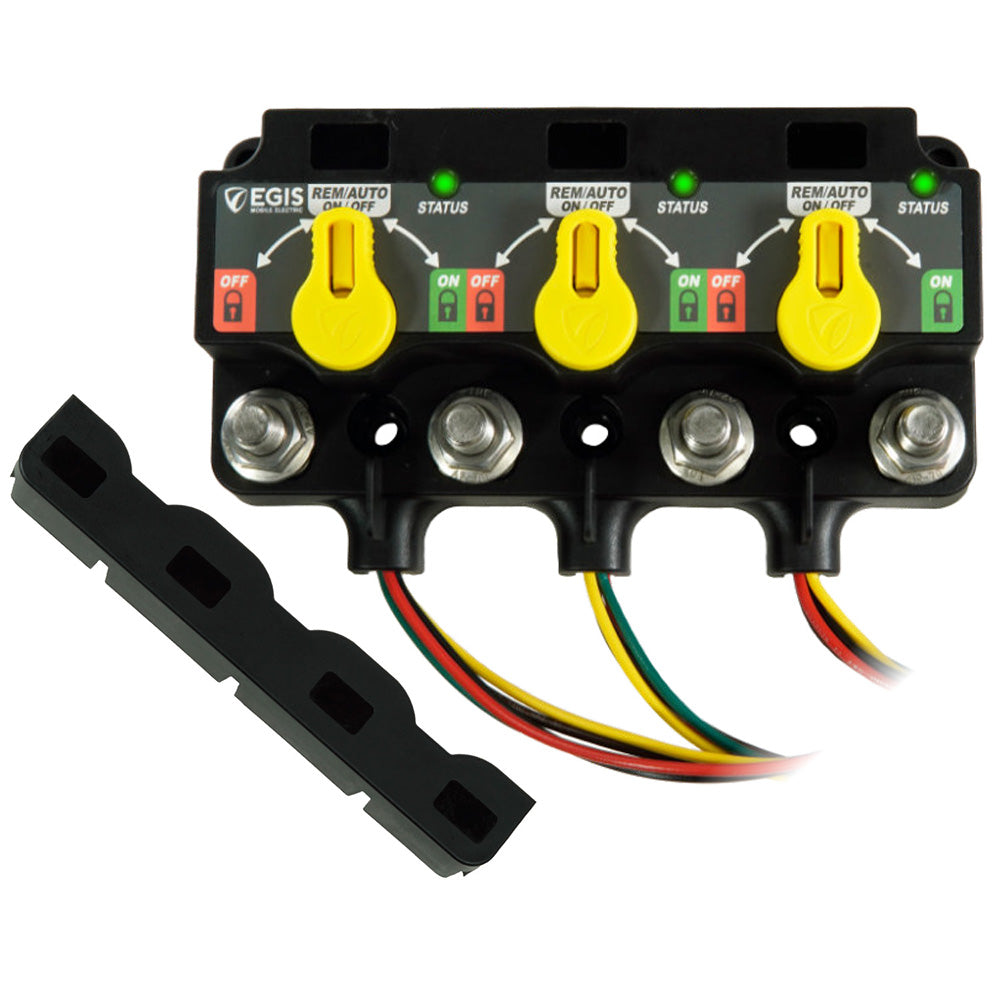

Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM
Egis XD Flex L Triple (Relay/ACR/Relay) w/Knobs - DTM
SKU:OM-EGISMOBILEEL-XDFLEXL-86301535
Low stock: 1 left
Couldn't load pickup availability
Overview
Manage battery switching with the Egis Mobile Electric XD Flex L Triple Relay/ACR/Relay unit with manual knobs and DTM connections. It serves lithium battery installations that need higher available charge and discharge voltage settings, with configurable operation for battery disconnection or voltage-based control.
Key features
- Each relay supports 500 amps continuously for high-current battery switching.
- DIP switches let you configure relay/battery disconnect, voltage-sensing relay or low-voltage disconnect functions.
- Front-facing manual knobs let you lock relays on or off, including during servicing.
- Remote ON/OFF/Auto inputs let you open or close each relay or allow voltage-sensing operation.
- On-board LEDs and optional remote LED feedback help you monitor individual relays.
- A sealed enclosure and integrated thermal overload protection support operation in demanding installations.
Specifications
- Brand: Egis Mobile Electric
- Model: XD Flex L Triple
- Configuration: Relay/ACR/Relay
- Manual controls: Front-facing override knobs
- Connector version: DTM
- Continuous current capability: 500A per relay
- Combined off-state current draw: 1.3mA
- Battery systems: Lithium-ion, lithium polymer and lithium iron phosphate
- Configuration controls: DIP switches
- Remote control inputs: ON/OFF/Auto
- Protection: Integrated thermal overload protection
- Warranty: 4 years
Good to know
External LED indicators are optional. The manual override provides backup operation if power is lost and allows switched loads to be locked off for downstream circuit servicing.
Specifications
| Type | Electric |
|---|---|
| Brand | Egis Mobile Electric |
| Manufacturer part # | 8630-1535 |
| UPC | 850074331698 |
| Boxed dimensions | 8 x 6 x 3 in |
| Shipping weight | 2.75 lb |
