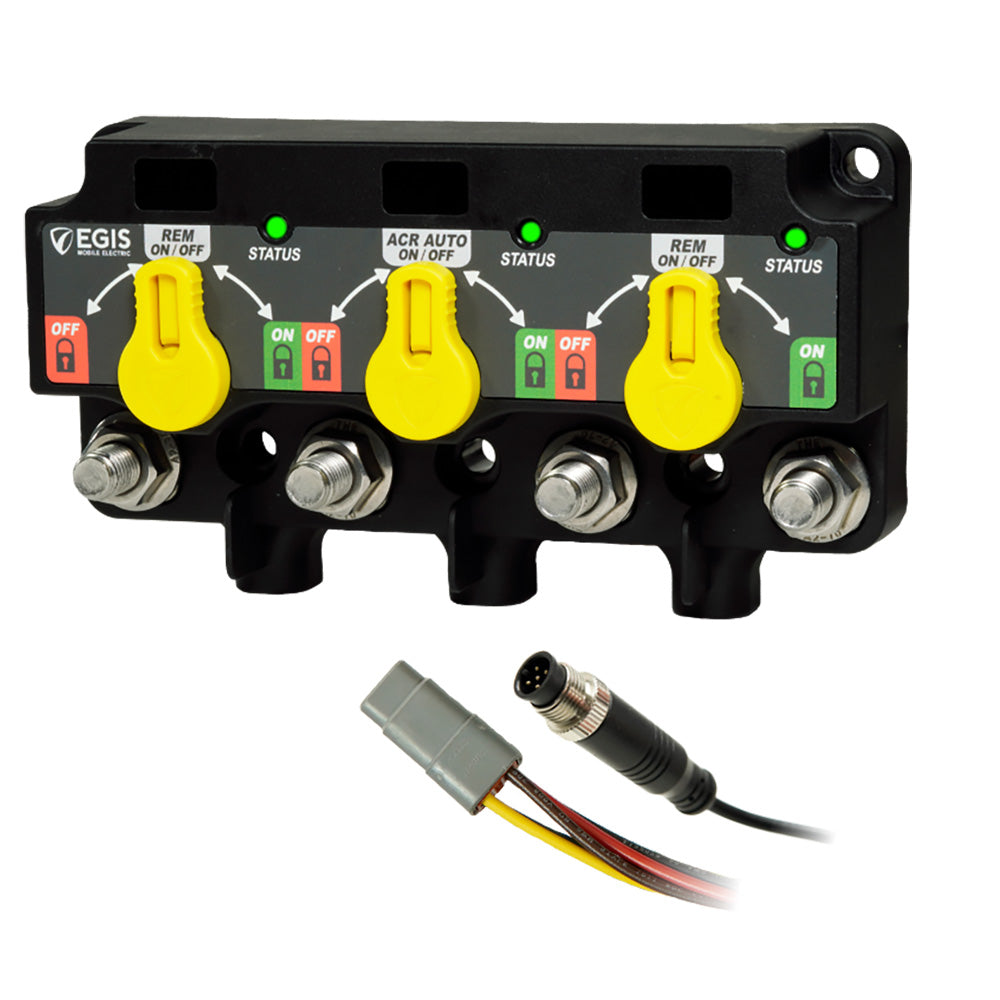

Egis Triple XD - NMEA 2000 - Relay/ACR/Relay w/Knobs - 12 Position DT

The Egis Mobile Electric Triple XD is an NMEA 2000 electrical control device combining relay, ACR, and relay functions in a 12-position DT configuration with knobs. It is built for marine electrical systems that need high-current switching, manual override awareness, programmable relay behavior, and integration with NMEA 2000 monitoring and control.

• Brand: Egis Mobile Electric
• Product type: Triple XD relay/ACR/relay with knobs
• Configuration: 12 Position DT
• Network: NMEA 2000 integration for switch control, switch status monitoring, and battery voltage monitoring
• Environmental sealing: IP67/IP6K9K
• Hardware: Stainless steel cable lug studs
• Mounting: Large mounting holes accept 1/4-20 / M6 attachment hardware
• Current rating: 500A continuous / 1600A cranking per switch
• Control inputs: Operates through NMEA 2000 or discrete analog inputs
• Programming: Relay functions can be set with dip switches
• Manual control: Manual control option shows override state and locked off or locked on status
• Battery function: Shares charging on either of two batteries and isolates batteries when no charge sources are present
• Expansion: Can expand with Link and Cross-Link Busbars to additional Dual, Triple, or Single XD Relays
• System support: Supports 2 or 3 battery systems with standard busbar interconnect accessories
