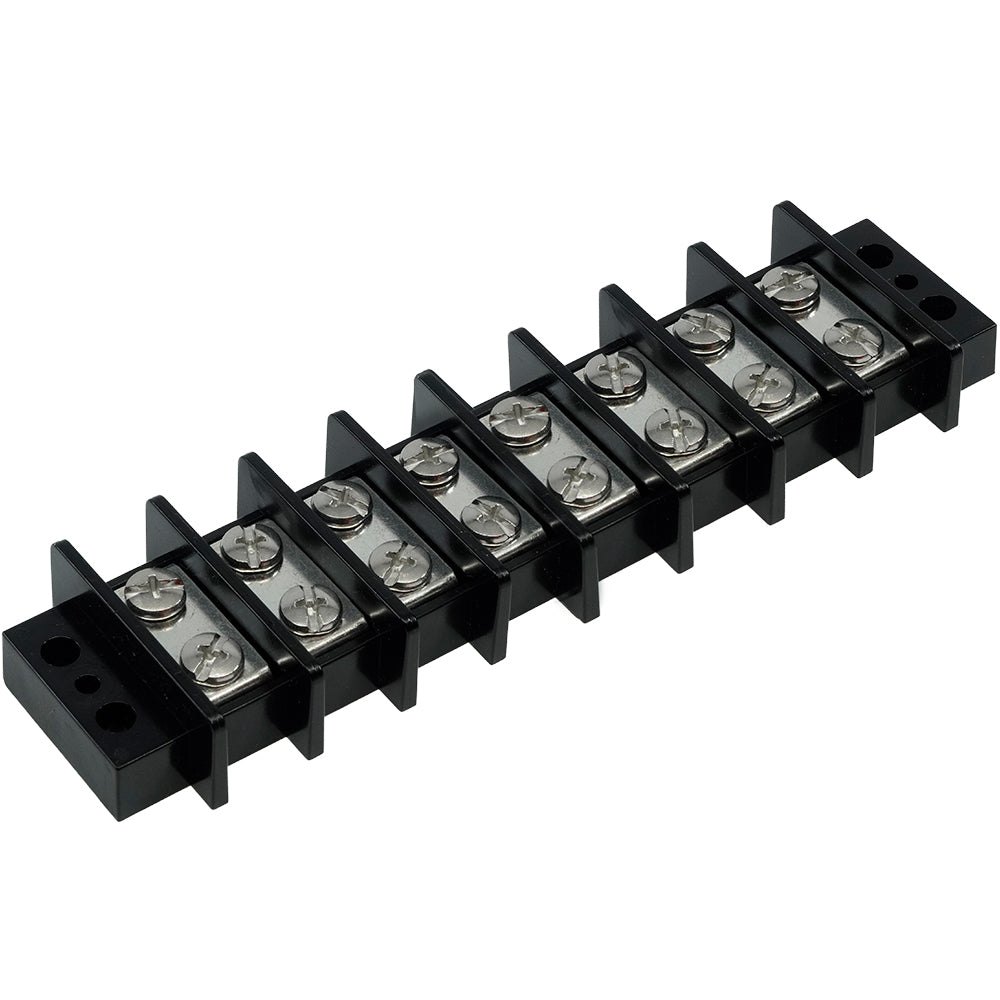

Egis Terminal Block - 65 Amp - 8 Circuit

Egis Terminal Block - 65 Amp - 8 Circuit

OM-EGISMOBILEEL-TERMINALBLOCK6-226508

$25.63
$25.63
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis Mobile Electric 8 circuit terminal block provides paired screw terminals for organizing electrical connections in marine and harsh-environment applications. It uses tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials.

  • Product type: Terminal block
  • Circuits: 8 circuit
  • Continuous current: 65 amps
  • Maximum voltage: 250 Vac/Vdc
  • Voltage rating: 125 Volt AC or DC
  • System support: 12, 24, 36, and 48 Vdc systems; 120/240 Vac applications
  • Connection style: Screw terminal connection pairs with one input and one output screw
  • Conductors: Separate copper alloy bus bars for each matching connection pair
  • Conductor material: Tin-plated copper alloy
  • Hardware material: Stainless steel
  • Insulation: High-temperature insulation material with high insulation walls
  • Dielectric strength: 2000Vac
  • Design detail: Anti-rotation ribs on conductor strips
  • Compliance: CE Marked and ROHS Compliant
  • Warranty: 4-year warranty

Specifications

BrandEgis Mobile Electric
Manufacturer part #2265-08
UPC850053879777
Boxed dimensions10 x 3 x 1 in
Shipping weight0.4 lb
