Egis Terminal Block - 65 Amp - 10 Circuit
Egis Terminal Block - 65 Amp - 10 Circuit
SKU:OM-EGISMOBILEEL-TERMINALBLOCK6-226510
Low stock: 3 left
Couldn't load pickup availability
Overview

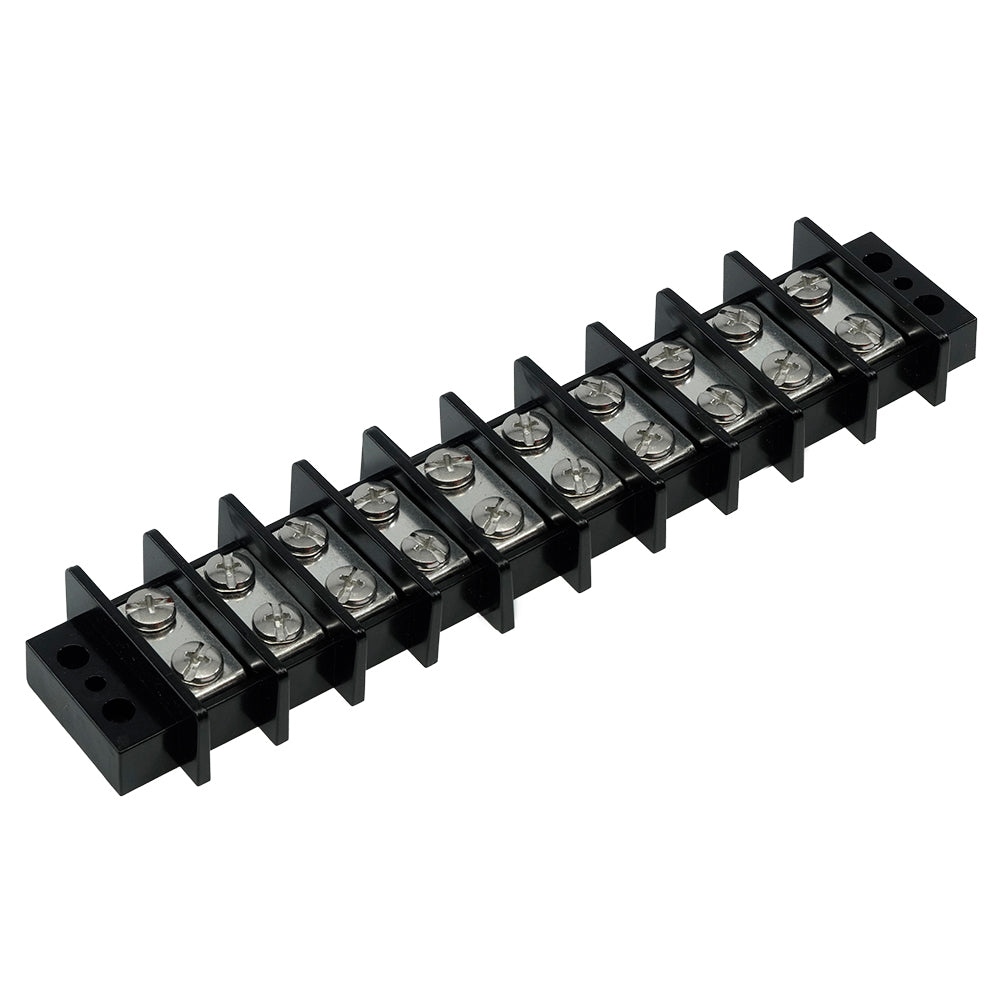

The Egis Mobile Electric terminal block provides 10 circuit connection pairs for marine and mobile electrical installations. It uses screw terminals, separate copper alloy bus bars, and insulated walls to organize ring terminal splices.
- Product type: Terminal block
- Circuits: 10 circuit
- Continuous current: 65 amps
- Maximum voltage: 250 Vac/Vdc
- Dielectric strength: 2000Vac
- Conductors: Tin-plated copper alloy
- Hardware: Stainless steel
- Insulation: High-temperature insulation material
- Connection style: Screw terminal connection pairs with one input and one output screw
- System support: 12, 24, 36, and 48 Vdc systems, plus 120/240 Vac applications
- Design detail: Anti-rotation ribs on conductor strips
- Compliance: CE marked and ROHS compliant
- Warranty: 4-year warranty
Specifications
| Brand | Egis Mobile Electric |
|---|---|
| Manufacturer part # | 2265-10 |
| UPC | 850053879784 |
| Boxed dimensions | 10 x 3 x 1 in |
| Shipping weight | 0.45 lb |
