• Egis Terminal Block - 30 Amp - 6 Circuit
1 1

Egis Mobile Electric

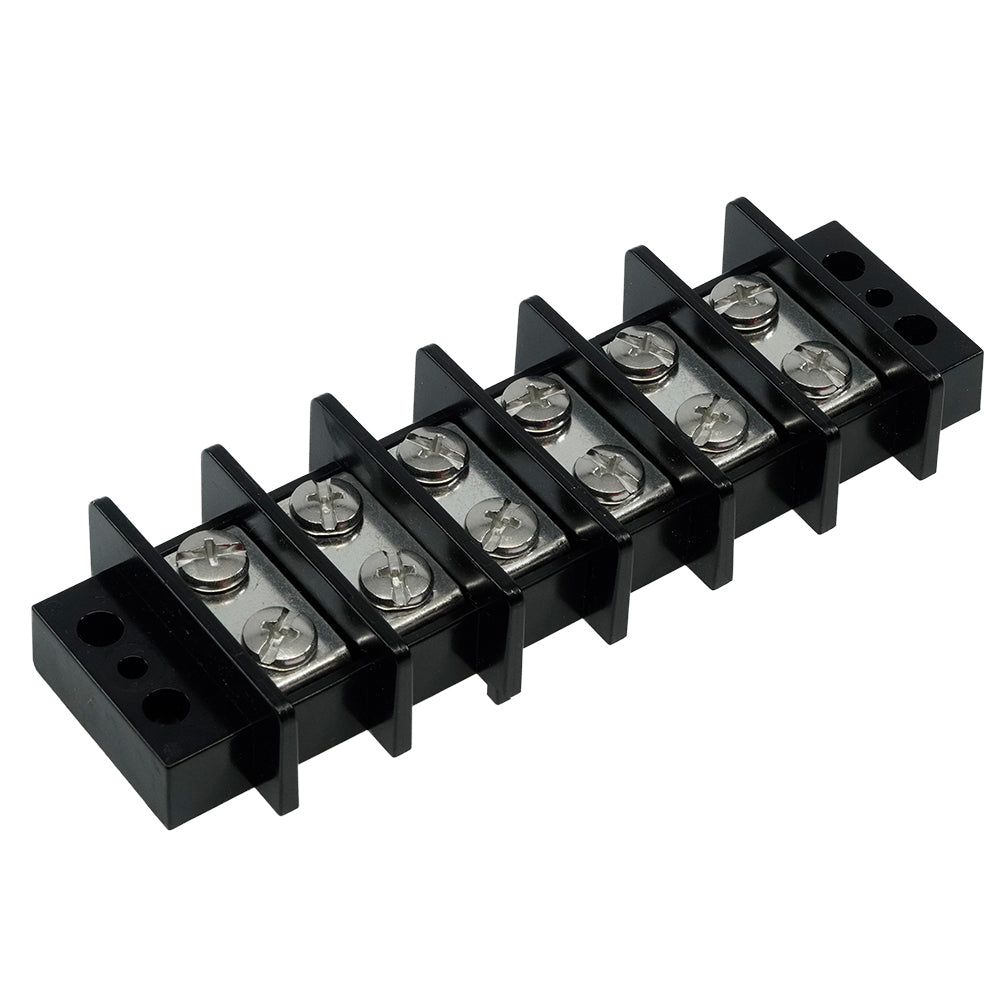

Egis Terminal Block - 30 Amp - 6 Circuit

Egis Terminal Block - 30 Amp - 6 Circuit

OM-EGISMOBILEEL-TERMINALBLOCK3-226506

$22.94
$22.94
Shipping calculated at checkout.

Low stock: 1 left
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis Mobile Electric 30 Amp 6 Circuit Terminal Block provides paired screw terminal connections for marine and harsh-environment electrical installations. Each matching pair has one input and one output screw connected to separate copper alloy bus bars.

  • Product type: terminal block
  • Circuits: 6 circuit
  • Title rating: 30 Amp
  • Connection type: screw terminal connection pairs
  • Bus bars: separate copper alloy bus bars for each matching connection pair
  • Conductors: tin-plated copper alloy
  • Hardware: stainless steel
  • Insulation: high-temperature insulation material
  • Voltage support: 12, 24, 36, and 48 Vdc systems, plus 120/240 Vac applications
  • Continuous current: 65 amps
  • Maximum voltage: 250 Vac/Vdc
  • Dielectric strength: 2000 Vac
  • Design details: anti-rotation ribs on conductor strips and high insulation walls for ring terminal splices
  • Compliance: CE marked and ROHS compliant
  • Warranty: 4-year warranty

Specifications

BrandEgis Mobile Electric
Manufacturer part #2265-06
UPC850053879760
Boxed dimensions7 x 3 x 1 in
Shipping weight0.3 lb

Manuals & documents

Product brochurePDF ↓
