• Egis Terminal Block - 30 Amp - 6 Circuit
1 1

Egis Mobile Electric

Egis Terminal Block - 30 Amp - 6 Circuit

Egis Terminal Block - 30 Amp - 6 Circuit

OM-EGISMOBILEEL-TERMINALBLOCK3-223006

$18.05
$18.05
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

30Amperage
TerminalFuse Type

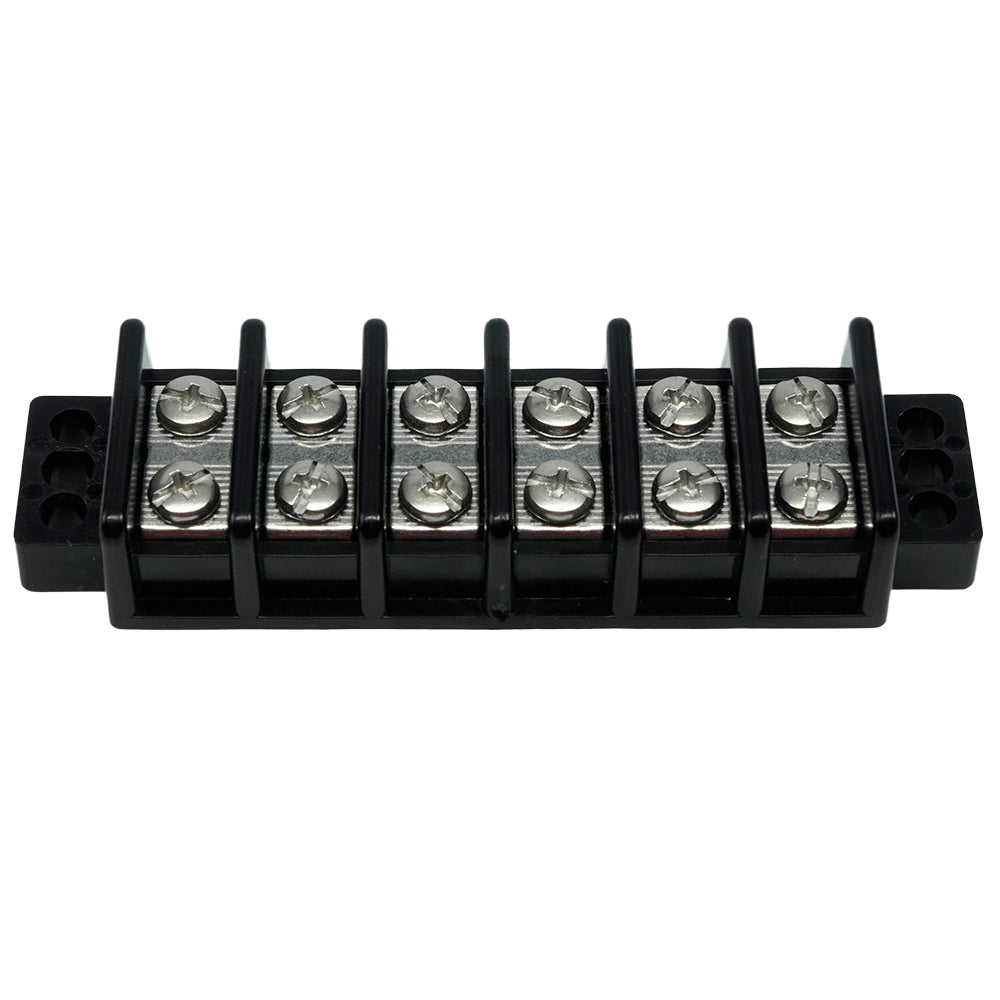

The Egis Mobile Electric Terminal Block is a 6-circuit connection block for organizing paired input and output screw terminals. It is rated for AC or DC systems and uses tin-plated copper alloy conductors, stainless steel hardware, and high-temperature insulation materials.

  • Product type: Terminal block
  • Circuits: 6
  • Continuous current: 30 amps
  • Maximum voltage: 250 Vac/Vdc
  • Dielectric strength: 2000Vac
  • Rated voltage support: 125 Volt AC or DC rated for 12, 24, 36, and 48 Vdc systems and 120/240 Vac applications
  • Connection style: Screw terminal connection pairs with one input screw and one output screw
  • Conductors: Tin-plated copper alloy
  • Hardware: Stainless steel
  • Insulation: High-temperature insulation material
  • Design detail: Anti-rotation ribs on conductor strips
  • Protection: High insulation walls help protect ring terminal splices from shorting to adjacent circuits or ground
  • Compliance: CE marked and ROHS compliant
  • Warranty: 4-year warranty

Specifications

Amperage30
Fuse TypeTerminal
BrandEgis Mobile Electric
Manufacturer part #2230-06
UPC850053879708
Boxed dimensions6 x 2 x 1 in
Shipping weight0.15 lb

Manuals & documents

Product brochurePDF ↓
