• Egis Terminal Block - 30 Amp - 12 Circuit
1 1

Egis Mobile Electric

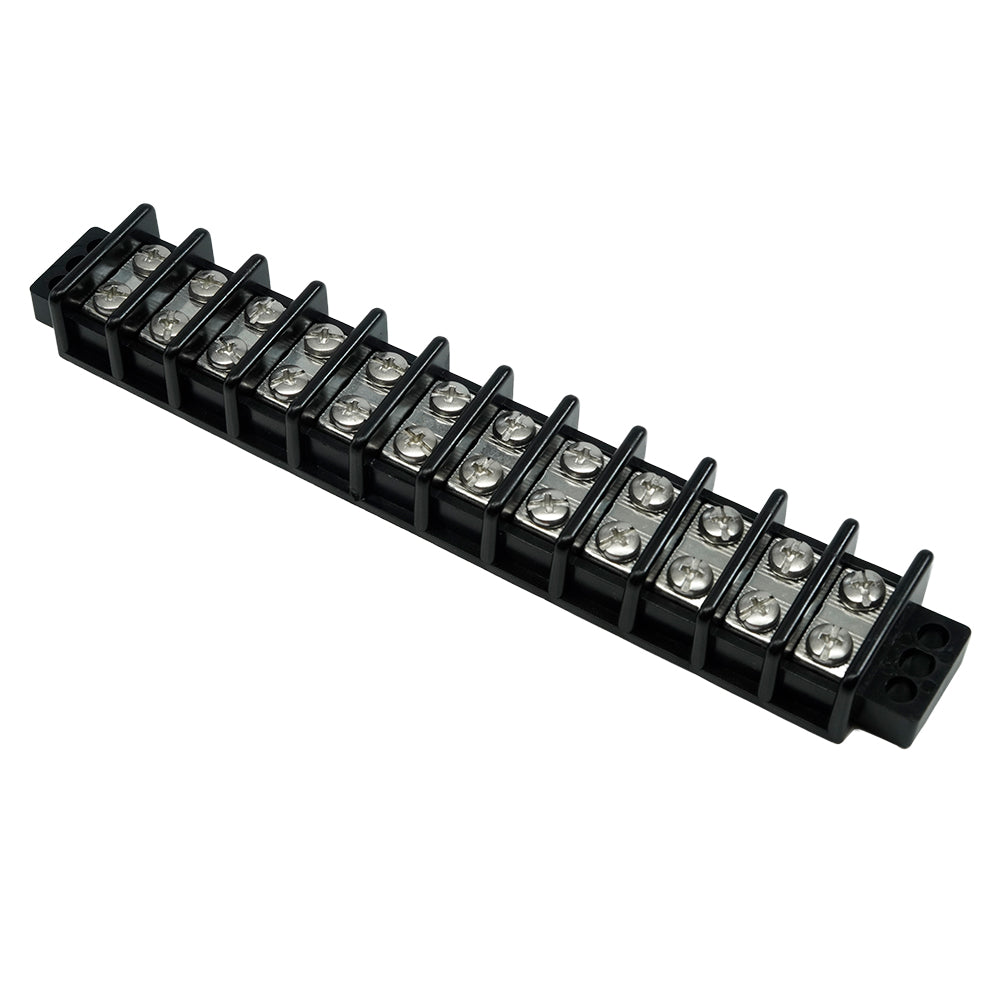

Egis Terminal Block - 30 Amp - 12 Circuit

Egis Terminal Block - 30 Amp - 12 Circuit

OM-EGISMOBILEEL-TERMINALBLOCK3-223012

$20.89
$20.89
Shipping calculated at checkout.

Low stock: 1 left
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

30Amperage
TerminalFuse Type

The Egis 30 Amp 12 Circuit Terminal Block provides matched screw terminal connection pairs for marine and mobile electrical installations. It is built with marine-grade materials and rated for AC or DC systems.

  • Circuits: 12 matching connection pairs
  • Continuous current: 30 amps
  • Maximum voltage: 250 Vac/Vdc
  • Voltage rating: 125 Volt AC or DC rated
  • Supported systems: 12, 24, 36, and 48 Vdc systems, plus 120/240 Vac applications
  • Connection style: Screw terminal connection pairs with one input screw and one output screw
  • Bus bars: Separate copper alloy bus bars for each matching connection pair
  • Conductors: Tin-plated copper alloy
  • Hardware material: Stainless steel
  • Insulation: High-temperature insulation materials
  • Dielectric strength: 2000Vac
  • Protection feature: High insulation walls help protect ring terminal splices from adjacent circuits or ground
  • Conductor feature: Anti-rotation ribs reduce the chance of wire terminal rotation
  • Compliance: CE Marked and ROHS Compliant
  • Warranty: 4-Year Warranty

Specifications

Amperage30
Fuse TypeTerminal
BrandEgis Mobile Electric
Manufacturer part #2230-12
UPC850053879739
Boxed dimensions10 x 3 x 1 in
Shipping weight0.3 lb
