• Egis Single XD - NMEA 2000 - Relay w/Knobs - 4 Position DT
1 1

Egis Mobile Electric

Egis Single XD - NMEA 2000 - Relay w/Knobs - 4 Position DT

Egis Single XD - NMEA 2000 - Relay w/Knobs - 4 Position DT

OM-EGISMOBILEEL-SINGLEXDNMEA-98114500

$130.18
$178.10 $130.18
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ElectricType

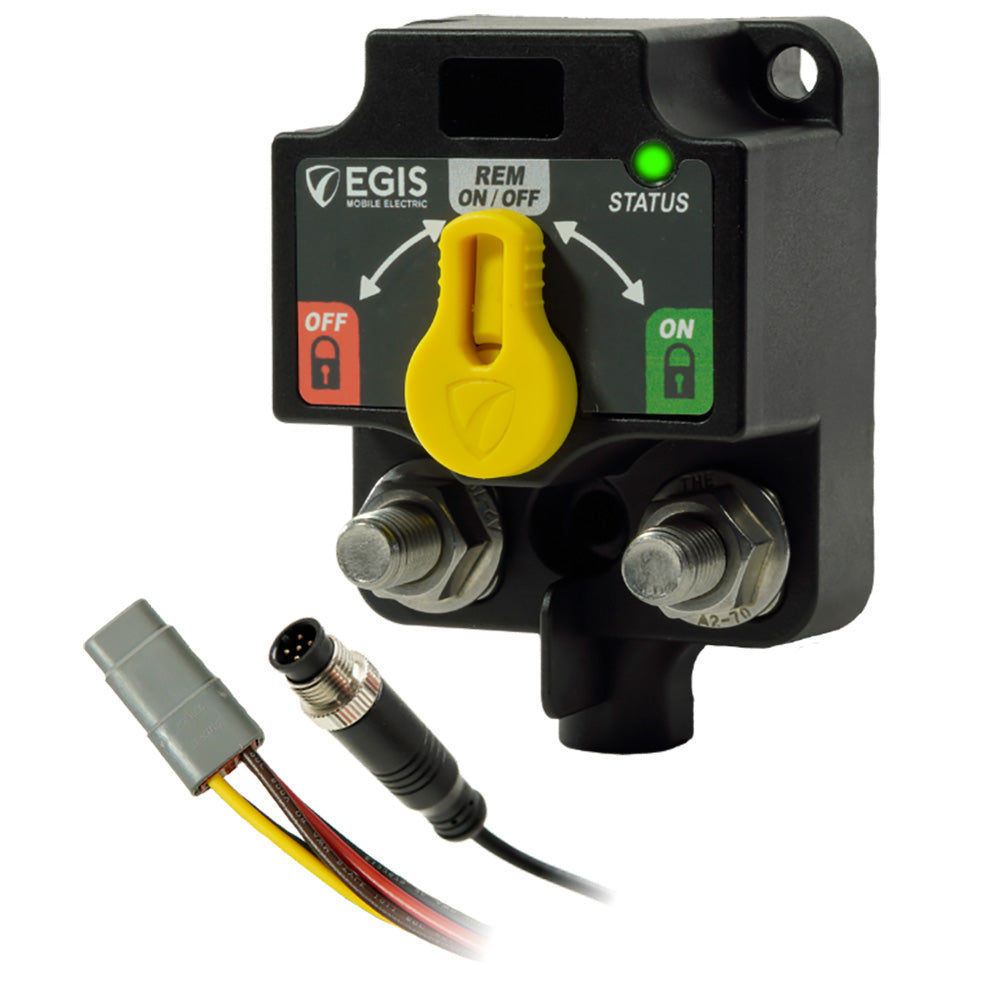

The Egis Mobile Electric Single XD is a 4-position DT relay with knobs for marine electrical systems using NMEA 2000 control and monitoring. It combines sealed construction, manual override awareness, and programmable relay functions for installers building battery and switching layouts.

  • Product type: Single XD NMEA 2000 relay with knobs
  • Configuration: 4 position DT
  • Rating per switch: 500A continuous / 1600A cranking
  • Sealing: IP67/IP6K9K
  • Mounting hardware size: accepts 1/4-20 / M6 attachment hardware
  • Connection hardware: stainless steel cable lug studs
  • Control options: NMEA 2000 or discrete analog inputs
  • Monitoring: switch status and battery voltage over NMEA 2000
  • Programming: relay functions set with dip switches
  • System expansion: supports link and cross-link busbars to additional Dual, Triple, or Single XD relays
  • Battery-system support: supports 2 or 3 battery systems with standard busbar interconnect accessories

Specifications

TypeElectric
BrandEgis Mobile Electric
Manufacturer part #9811-4500
UPC850067590200
Boxed dimensions8 x 4 x 3 in
Shipping weight1.2 lb
