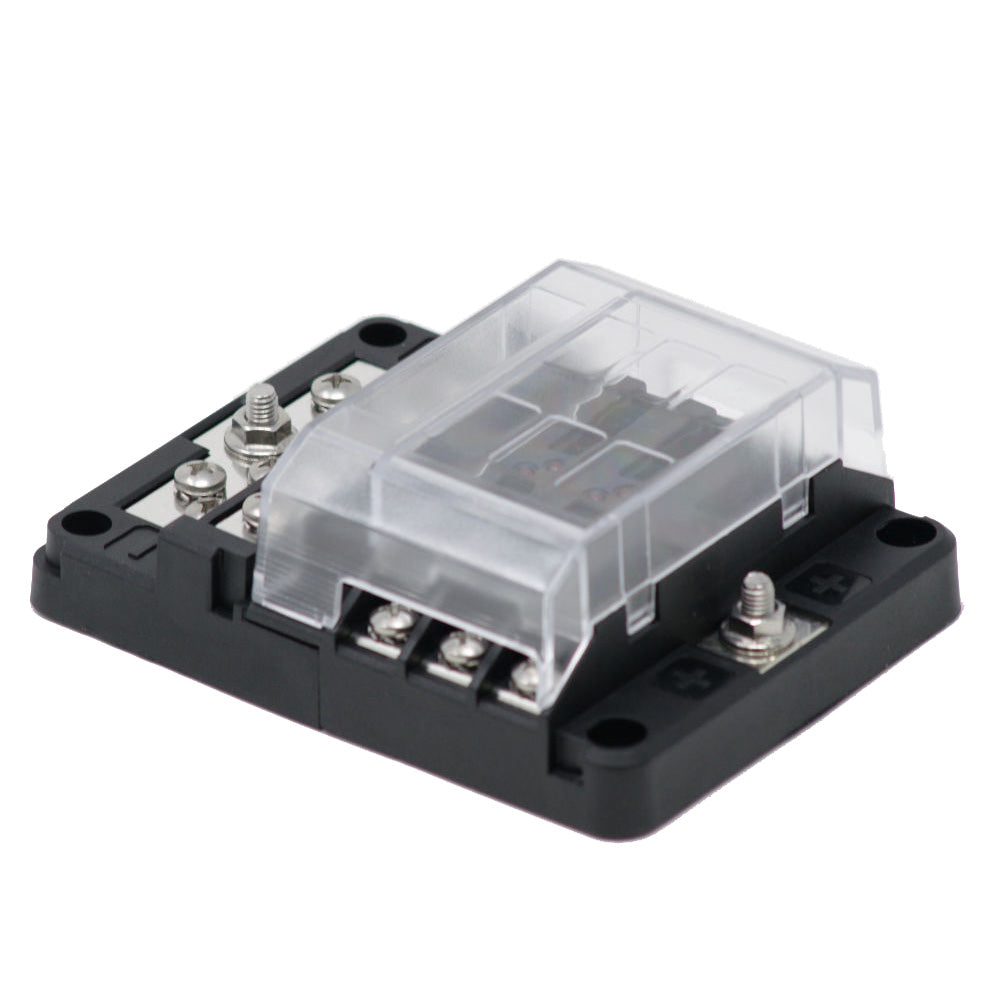

Egis RT Fuse Block 6 Position w/Ground & LED Indication

The Egis Mobile Electric RT Fuse Block is a 6-position circuit protection block with an included ground return section. It is built for ATO-style fuses and uses LED indication to help identify blown fuses during troubleshooting.

• Product type: RT fuse block with ground and LED indication
• Fuse positions: 6
• Configuration: Modular design can create seven unique configurations from Egis 8028 and 8030
• Fuse compatibility: ATO, ATC, and ATF fuses
• Fuse range: Accepts ATO style fuses from 1 through 40 amps
• Maximum current, entire block: 100 amps
• Maximum current, per circuit: 30 amps
• Voltage range: 0-36 VDC
• Maximum output wire size: #10 AWG
• Ground section: Includes a 12-position ground return block with multi-level low amp terminal screws

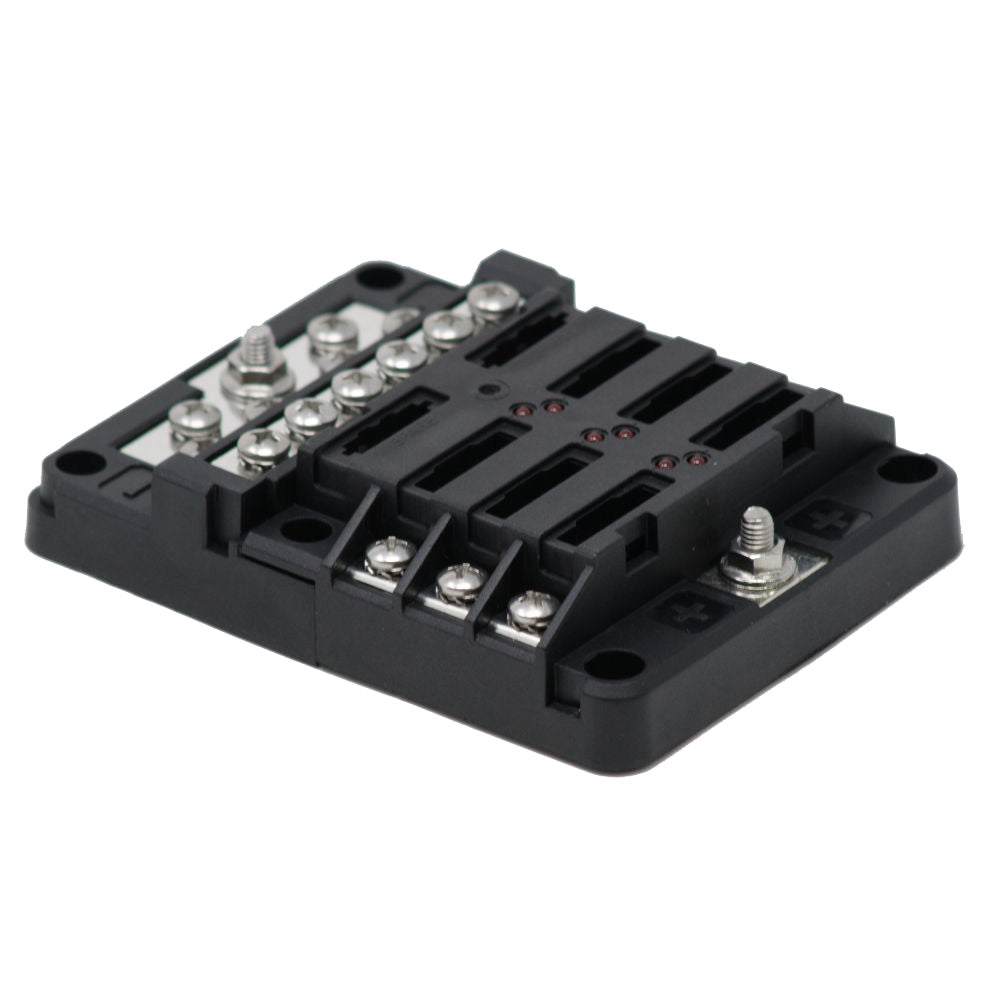

• Diagnostics: Blown fuse LED indication for each output circuit
• Hardware: Stainless steel self-locking hardware
• Materials: High-temperature materials and 100% non-ferrous corrosion-resistant materials
• Spare locations: Two locations per 6 circuits for spare fuses or test resistors
• Protection: Cover and label recesses help shield terminal studs and cable terminal edges from inadvertent shorts
• Ground block: Ground block section can separate from the fuse block section
• Standards: Supports SAE circuit protection standards for thermal and short circuit events
