Overview

100aAmperage
ATO/ATC/ATFFuse Type
Fuse BlocksType

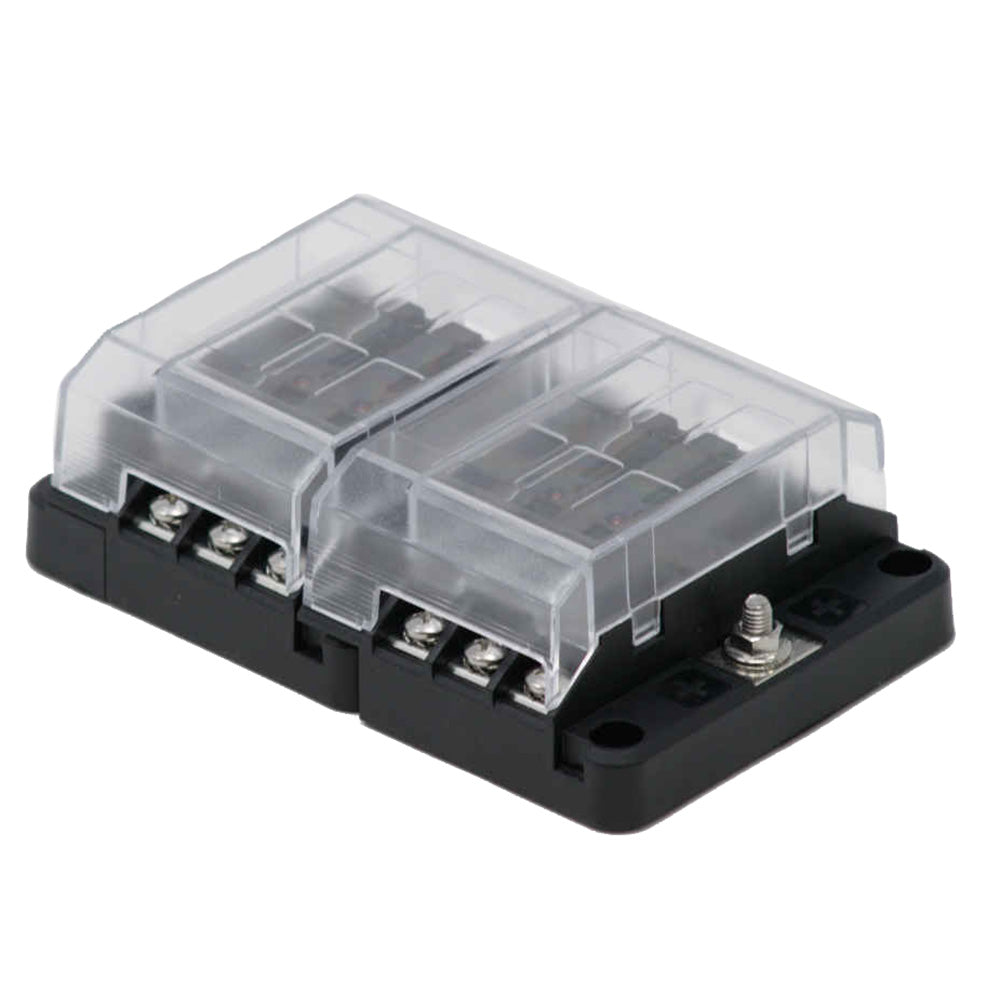

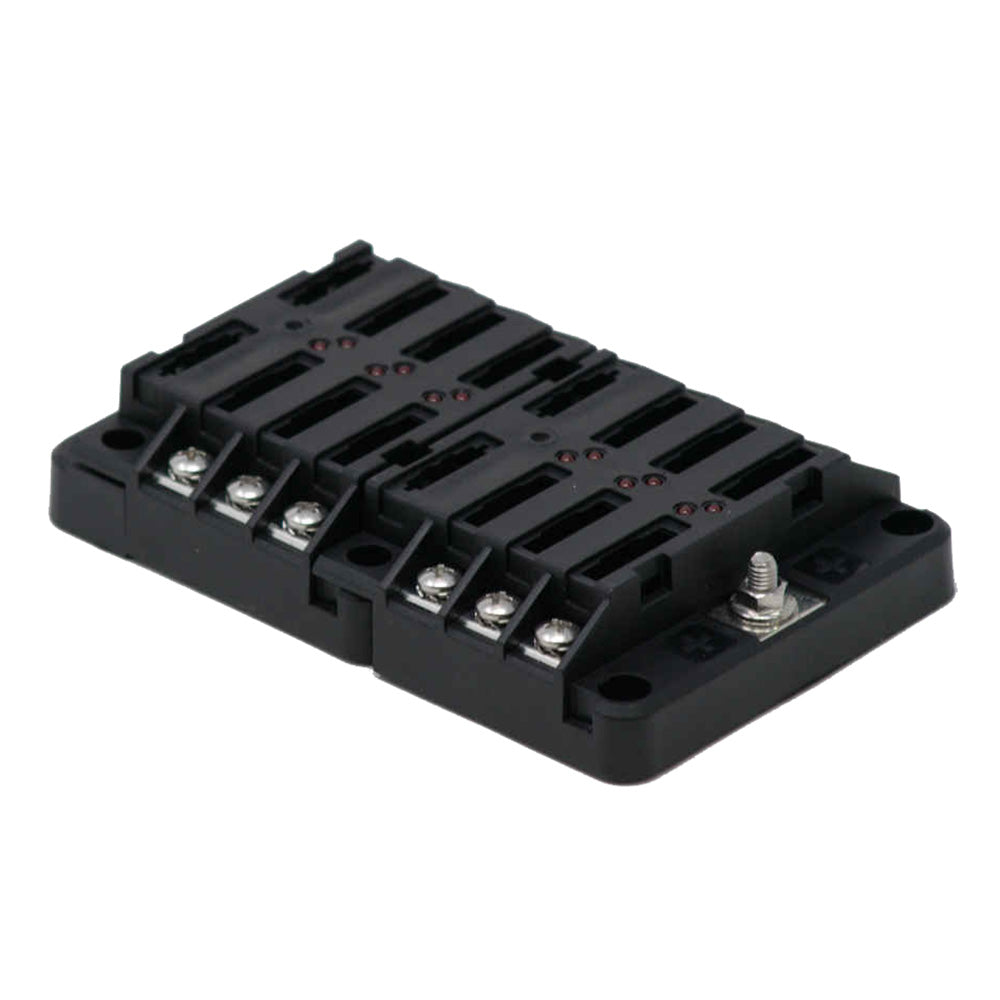

This Egis Mobile Electric RT fuse block provides 12 fused positions with LED indication for faster fault finding. Its modular design can be arranged in seven configurations from Egis 8028 and 8030, helping cover different build requirements with fewer stocked part numbers.

  • Fuse positions: 12
  • Voltage range: 12-24 VDC
  • Maximum current, block: 100A
  • Maximum current, per circuit: 30A
  • Fuse types: ATO, ATC, ATF
  • Fuse range: accepts ATO style fuses from 1 through 40A
  • Maximum output wire size: #10 AWG
  • Diagnostics: blown-fuse LED indication for each output circuit
  • Hardware: stainless steel self-locking attachment screws and nuts
  • Construction: high-temperature materials and 100 percent non-ferrous corrosion-resistant materials
  • Extras: two spare fuse locations per 6 circuits for spare fuses or test resistors
  • Cover and label recesses: help protect terminal studs and cable terminal edges from inadvertent shorts
  • Standards support: supports SAE circuit protection standards for thermal and short circuit events

Specifications

Amperage100a
Fuse TypeATO/ATC/ATF
TypeFuse Blocks
BrandEgis Mobile Electric
Manufacturer part #8029
UPC850035199749
Boxed dimensions8 x 4 x 3 in
Shipping weight0.9 lb
Country of originTAIWAN
