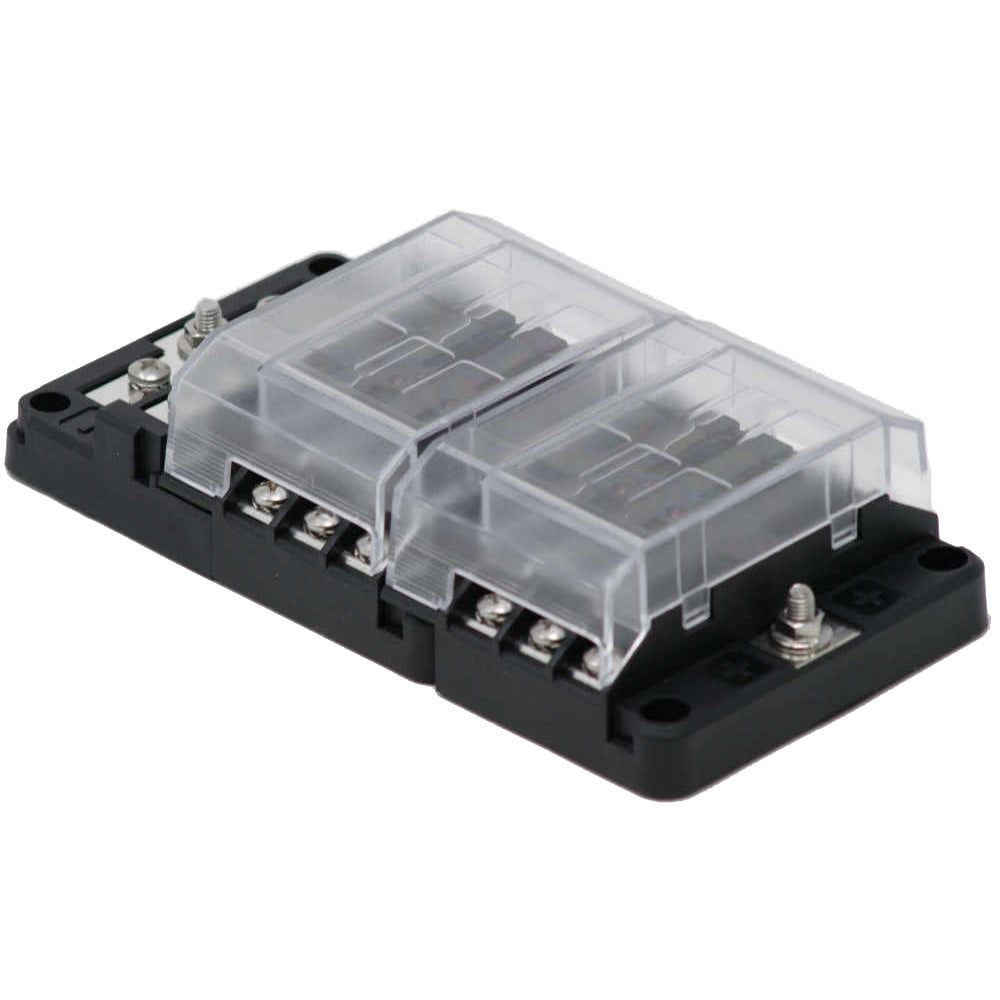

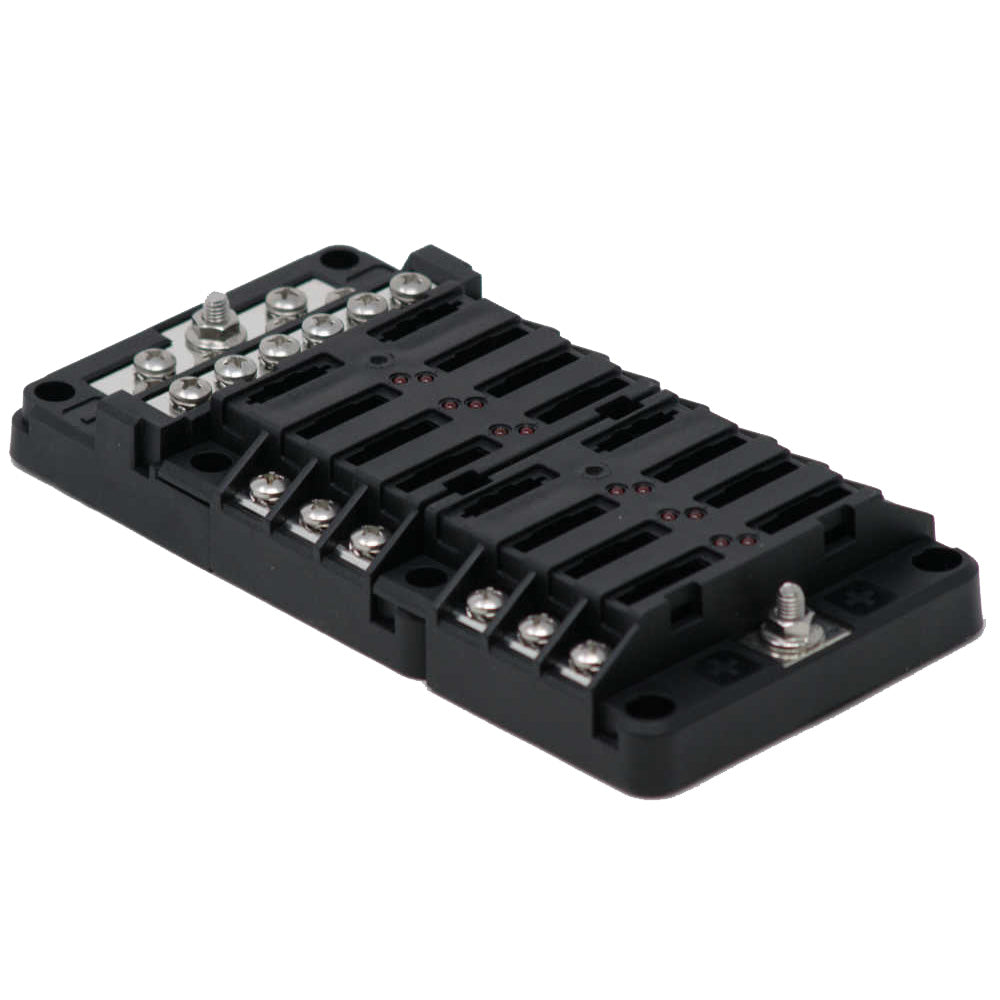

Egis RT Fuse Block 12 Position w/Ground & LED Indication

The Egis Mobile Electric RT fuse block combines 12 fuse positions with a ground return block and LED fuse indication. It is designed for branch circuit protection using ATO-style fuses in harsh vehicle or marine electrical environments.

• Fuse positions: 12
• Ground block: Included 12-position ground return block
• Diagnostics: Blown fuse LED indication for each output circuit
• Compatible fuses: ATO / ATC / ATF
• Accepted fuse range: 1 through 40 Amps
• Voltage range: 0-36 VDC
• Maximum current, entire block: 10 Amps
• Maximum current, per circuit: 30 Amps
• Maximum output wire size: #10 AWG
• Construction: High-temperature materials with stainless steel self-locking hardware
• Hardware: 100% non-ferrous corrosion-resistant materials; attachment screws and nuts are self-locking
• Modular design: Can produce seven configurations from Egis 8028 and 8030
• Standards support: Supports SAE circuit protection standards for thermal/short circuit events
• Spare locations: Two locations per 6 circuits for spare fuses or test resistors
• Cover and label recesses: Protect terminal studs and cable terminal edges from inadvertent shorts to each other or ground
• Ground block configuration: Ground block section can separate from the fuse block section
