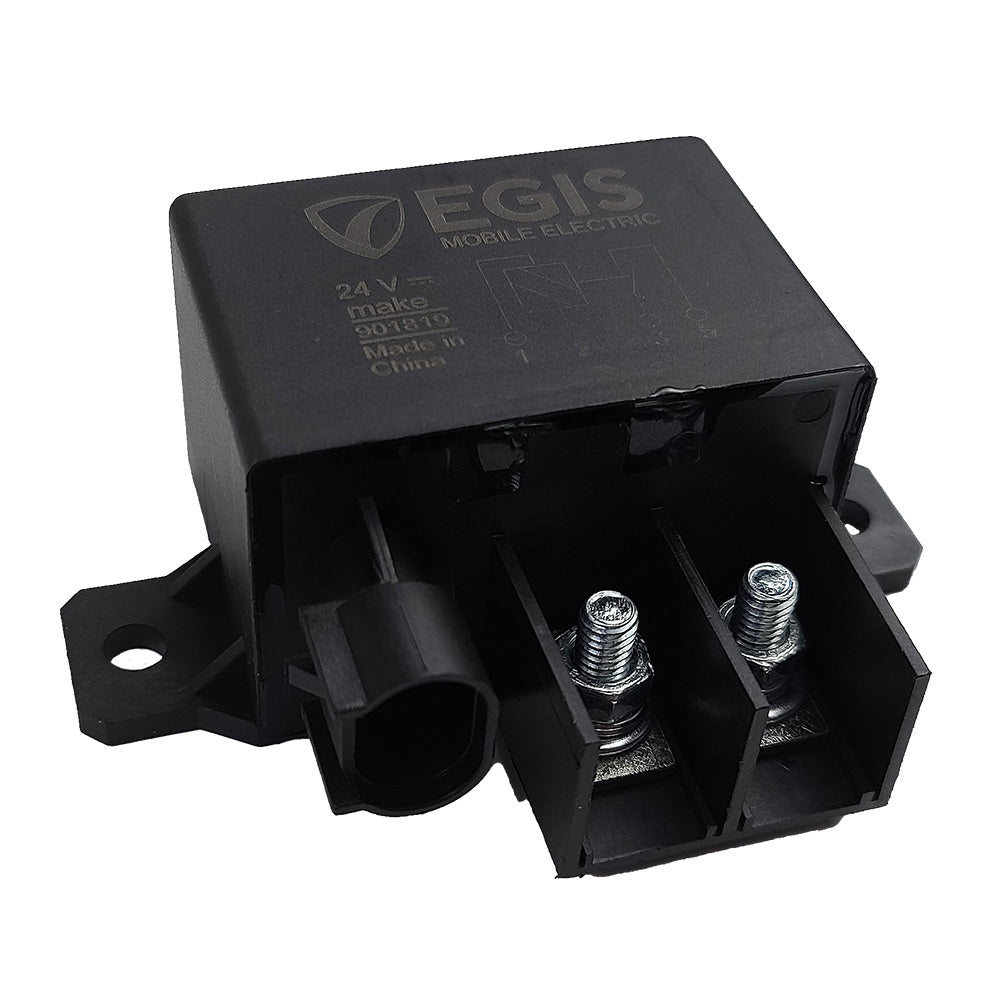

• Egis Relay 24V, 150A w/Resistor
1 1

Egis Mobile Electric

Egis Relay 24V, 150A w/Resistor

Egis Relay 24V, 150A w/Resistor

OM-EGISMOBILEEL-RELAY24V150A-901819

$45.80
$59.10 $45.80
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis Mobile Electric 24V relay is made for high-current switching in vehicle and marine electrical systems. It is suited to installations where control circuits need resistor protection from flyback voltage, including wet or high-temperature areas.

  • Voltage: 24V relay with 17.6-32VDC operating range
  • Current ratings: 180A maximum continuous current at 23 degrees C; 300A intermittent current for up to 3 seconds
  • Control draw: 163 mA on-state current draw at 24 VDC
  • Temperature rating: -40 to 125 degrees C / 257 degrees F high rating
  • Endurance: 1,000,000 electrical switching cycle rating; 100,000 electrical switching cycle capacity also listed
  • Protection: resistor circuit protection for flyback voltage and automotive-grade sealed control wire connectors
  • Housing: IP67-rated sealed housing; IP54 ingress protection also listed
  • Mounting: reinforced tabs with dual mounting holes for 1/4-20, M6 1.25 bolts, or screws up to #14
  • Terminals: shielded dual M6x1.0 terminals
  • Replacement use: automotive-rated, industry-standard drop-in replacement for Tyco/Amp
  • Warning: this product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

BrandEgis Mobile Electric
Manufacturer part #901819
Boxed dimensions4 x 3 x 2 in
Shipping weight0.55 lb
Country of originTAIWAN
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Installation guidePDF ↓
