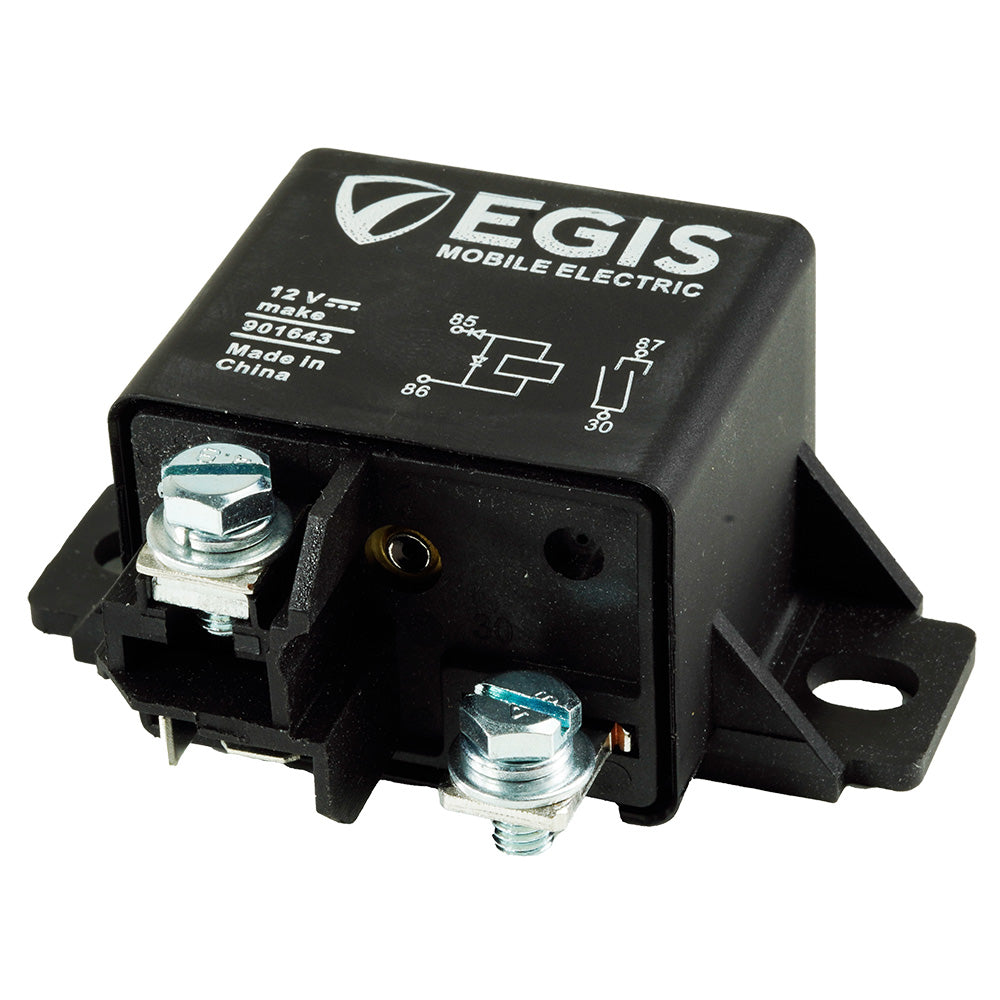

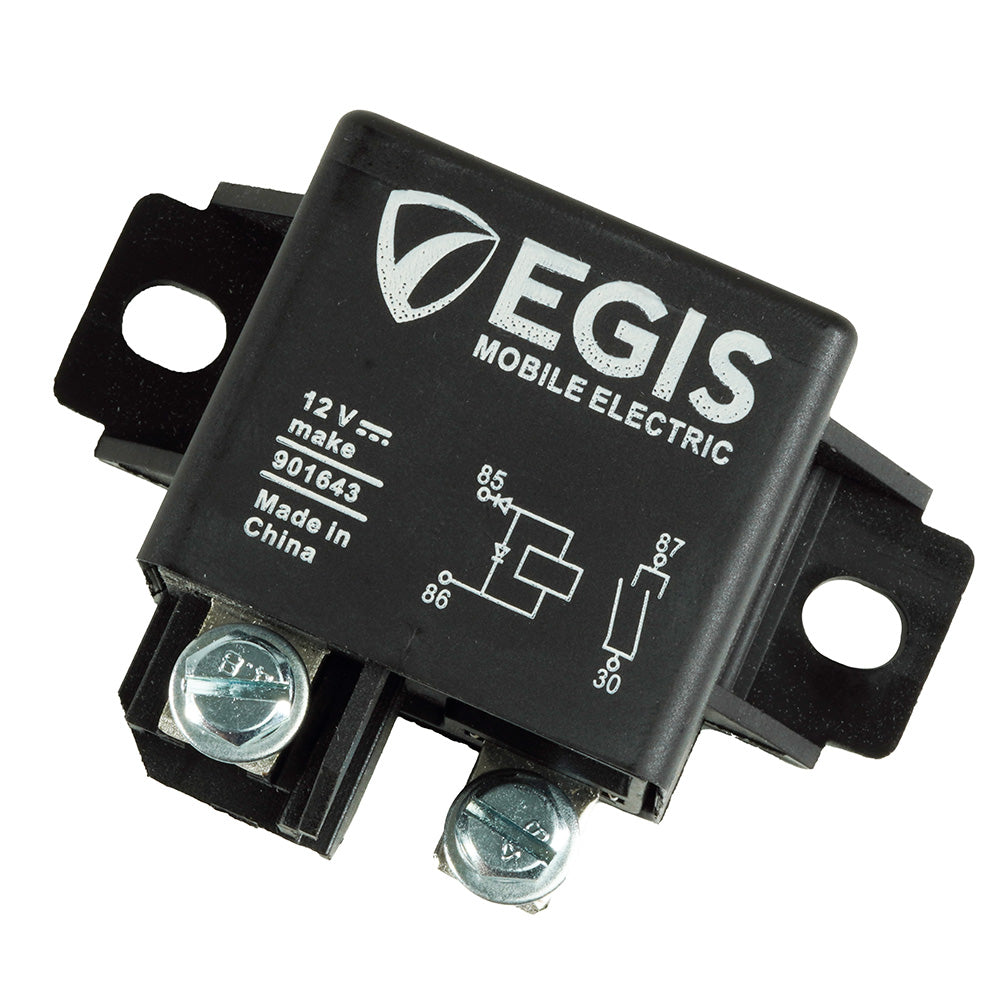

Egis Relay 12V, 75A w/Dual Diode

Egis Relay 12V, 75A w/Dual Diode

OM-EGISMOBILEEL-RELAY12V75A-901643

$28.85
$30.60 $28.85
Sale
Shipping calculated at checkout.

Low stock: 3 left
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Egis Mobile Electric 12V relay is built for automotive electrical switching where circuit protection and secure mounting are required. Its dual-diode layout helps keep flyback voltage away from control signal circuitry, while bifurcated contacts support reliable operation over repeated cycles.

  • Brand: Egis Mobile Electric
  • Type: Dual-diode relay
  • Nominal voltage: 12V
  • Operating voltage range: 8.8-16VDC
  • Maximum continuous current: 75A at 23°C
  • Intermittent current: 150A for 3 seconds
  • Ambient temperature rating: -50°C to 125°C
  • High temperature equivalent: 257°F
  • Electrical endurance: 100,000 switching cycles
  • Initial contact resistance: 50 mOhm at 6VDC
  • Contacts: Bifurcated contacts to reduce contact bounce
  • Circuit protection: Dual diode protection against flyback voltage reaching control circuits
  • Ingress protection: IP54
  • Mounting: Reinforced mounting tabs with dual mounting holes
  • Fasteners: Accepts 1/4-20 inch, M6 1.25 bolts, or screws up to #14
  • Terminals: Offset input/output terminals with integrated divider design
  • Hardware: Zinc-plated M5 input/output terminal screws with retained nuts
  • Ratings: Meets or exceeds IEC 60068-2-27, IEC 60068-2-6, IP54, and IEC 60068-2-2

Specifications

BrandEgis Mobile Electric
Manufacturer part #901643
UPC850035199510
Boxed dimensions3 x 3 x 2 in
Shipping weight0.2 lb
Country of originTAIWAN
