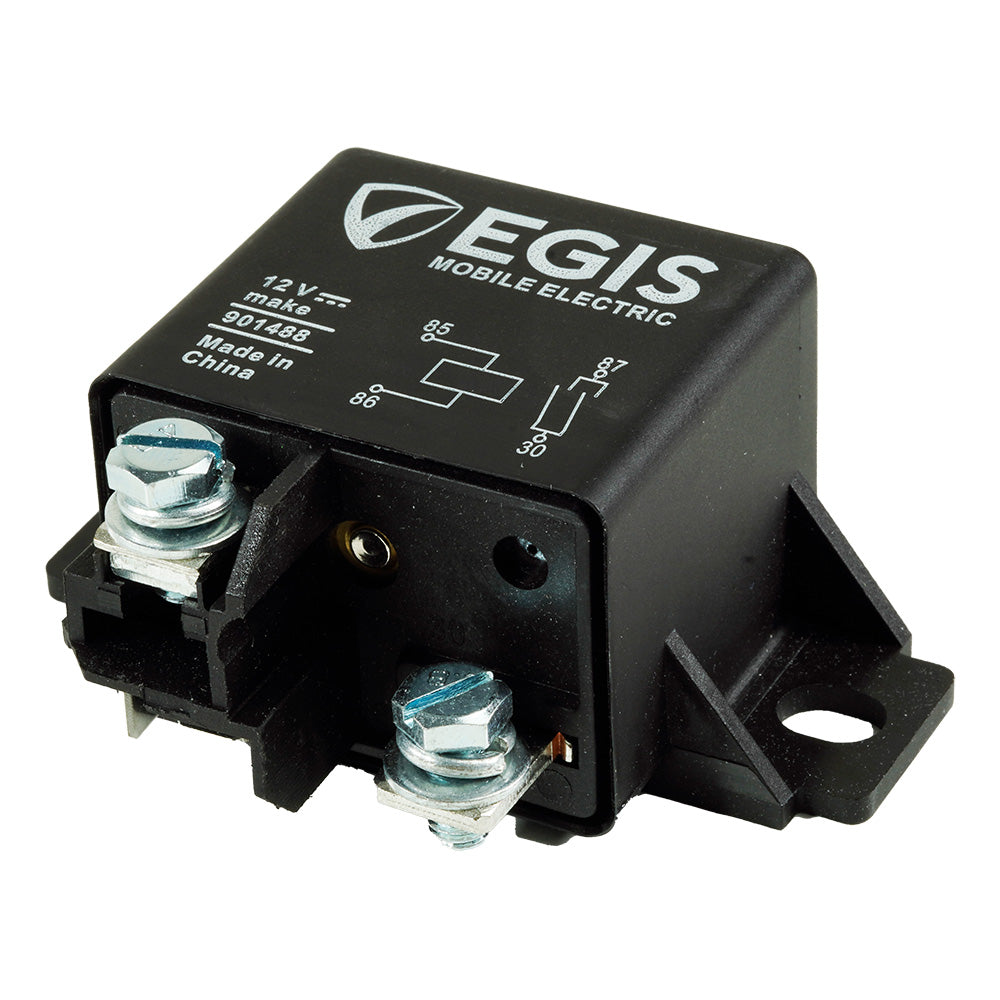

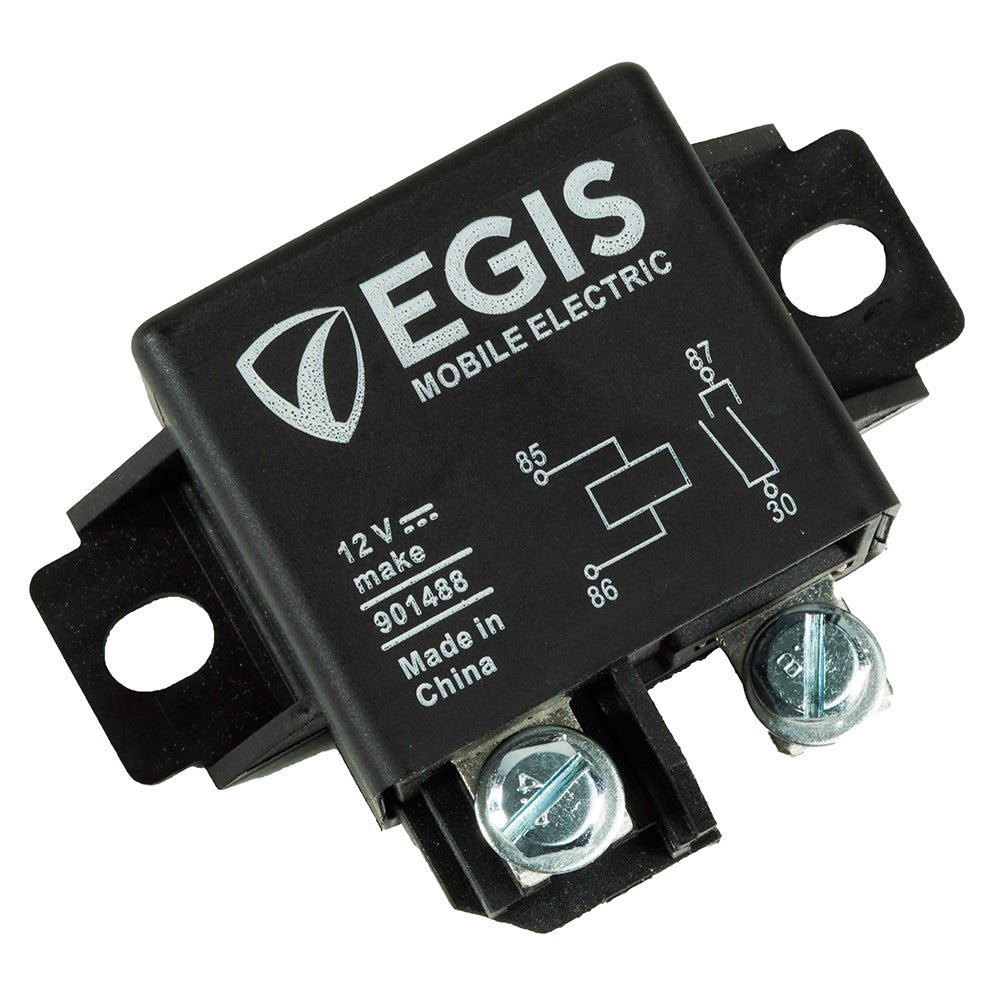

Egis Relay 12V, 75A

This Egis Mobile Electric relay is a 12V, 75A electrical switching component for automotive applications. It is built for installations that may involve vibration, shock, high temperatures, and temporary startup current demands.

The design uses bi-furcated contacts to reduce contact bounce and support long-term switching reliability. Offset terminals, an integrated divider, and reinforced mounting tabs help with secure installation.

• Brand: Egis Mobile Electric
• Product: Relay
• Nominal voltage: 12V
• Operating voltage range: 8.8-16VDC
• Max continuous current: 75A at 23 degrees C
• Intermittent current: 150A for up to 3 seconds
• Ambient temperature rating: -50 to 125 degrees C
• High temperature equivalent: 257 degrees F
• Electrical endurance: 100,000 cycles
• Initial contact resistance: 50 mOhm at 6VDC
• Ingress protection: IP54
• Contacts: Bi-furcated contact design
• Mounting: Dual mounting holes with reinforced tabs
• Fastener compatibility: 1/4-20 inch bolts, M6 1.25 bolts, or screws up to #14
• Terminal hardware: Zinc-plated M5 input and output terminal screws with held-in-place nuts
• Mounting holes: 6mm x 8.7mm elongated holes
• Ratings listed: IEC 60068-2-27, IEC 60068-2-6, IP54, and IEC 60068-2-2
