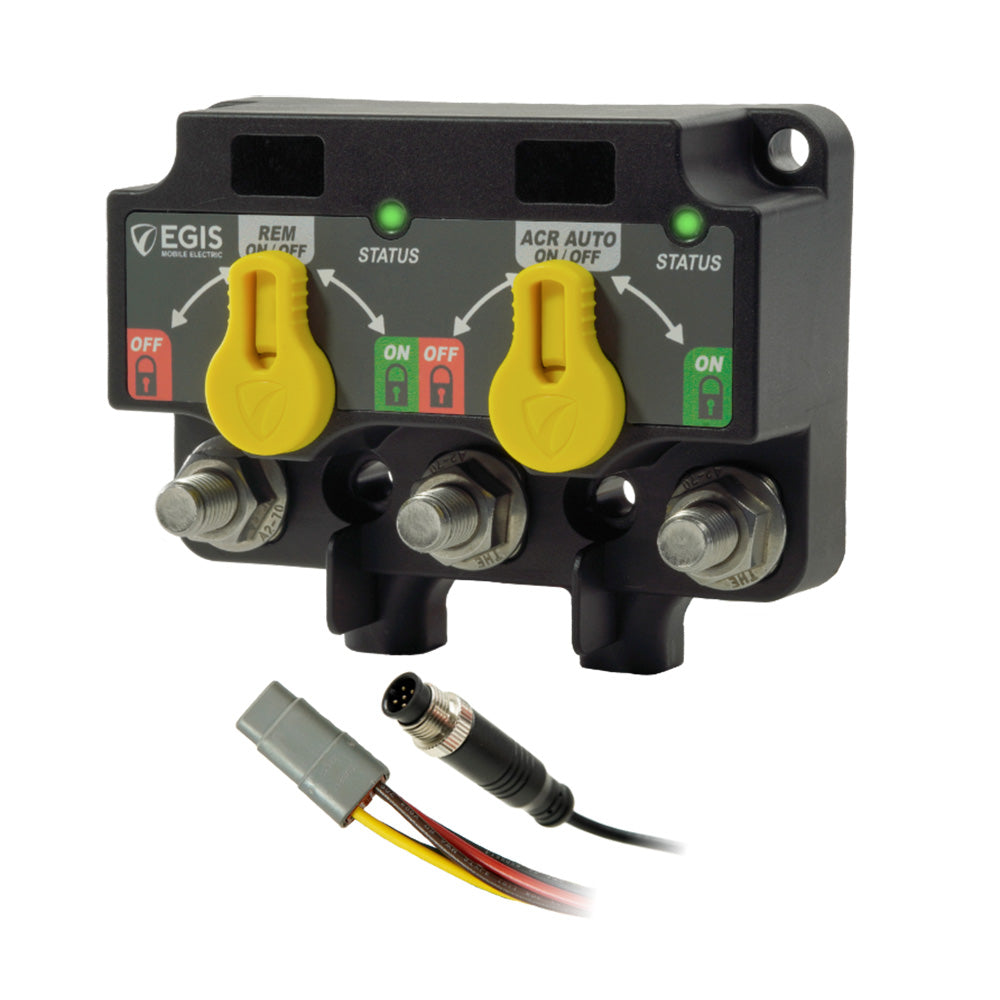

Egis Dual XD - NMEA 2000 - Relay/Relay w/Knobs - 8 Position DT

Egis Dual XD - NMEA 2000 - Relay/Relay w/Knobs - 8 Position DT

OM-EGISMOBILEEL-DUALXDNMEA-98218550

$216.73
$311.30 $216.73
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ElectricType

The Egis Dual XD is an 8-position DT relay/relay unit with NMEA 2000 integration and manual control knobs. It is built for marine electrical systems that need remote switching, status monitoring, and battery management in a sealed high-capacity device.

  • Configuration: Relay/relay with knobs, 8 position DT
  • Network: NMEA 2000 integration for switch control, switch status monitoring, and battery voltage monitoring
  • Control options: Operates through NMEA 2000 or discrete analog inputs
  • Ratings: 500A continuous and 1600A cranking per switch
  • Sealing: IP67/IP6K9K
  • Hardware compatibility: Large mounting holes accept 1/4-20 or M6 attachment hardware
  • Connections: Stainless steel cable lug studs
  • Programming: DIP switches allow installer or OEM configuration of each relay function
  • Battery function: Shares charging on either of two batteries and isolates batteries when charge sources are not present
  • Expansion: Compatible with Link and Cross-Link busbars for additional Dual, Triple, or Single XD relays
  • System support: Supports 2 or 3 battery systems with standard busbar interconnect accessories

Specifications

TypeElectric
BrandEgis Mobile Electric
Manufacturer part #9821-8550
UPC850067590224
Boxed dimensions8 x 4 x 3 in
Shipping weight2.0 lb
