Overview

ElectricType

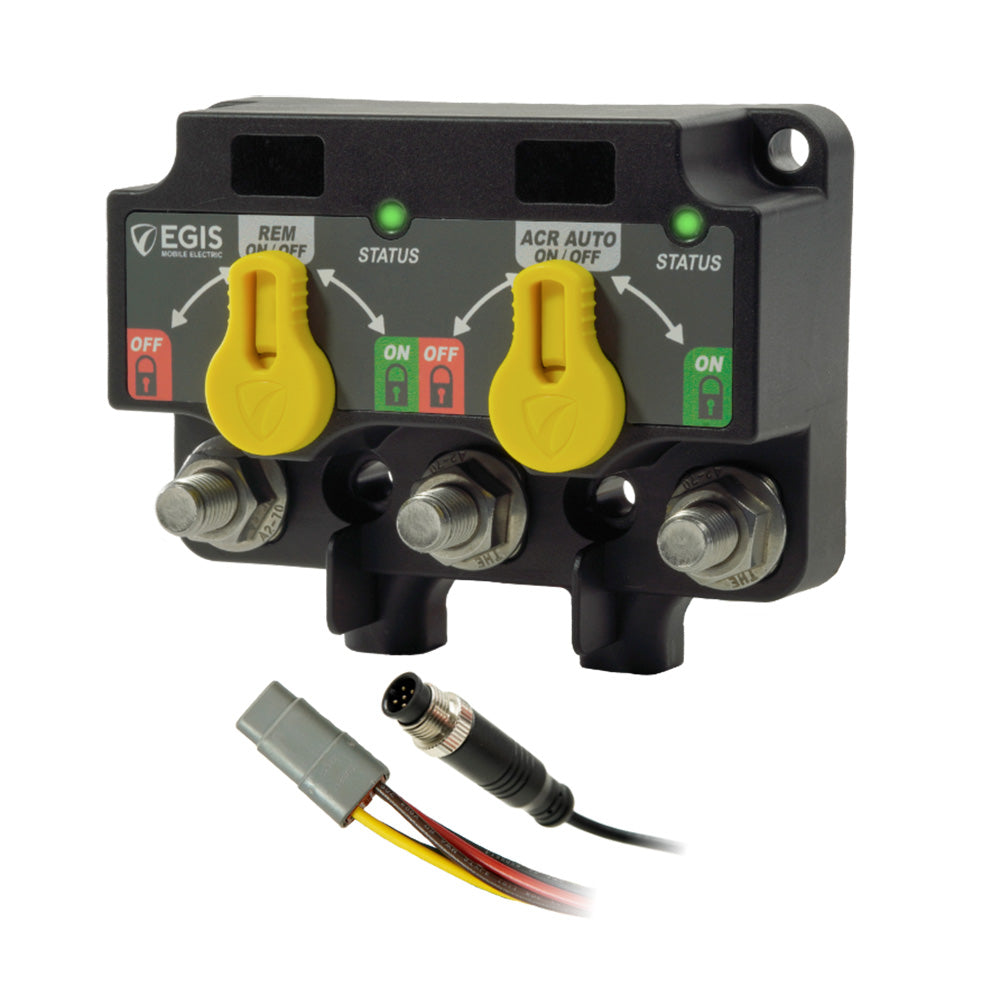

The Egis Mobile Electric Dual XD is an 8-position DT ACR/relay with NMEA 2000 capability and manual control knobs. It is built for marine electrical systems that need battery isolation, charge sharing, and relay control in a compact installation.

  • Product type: Dual XD ACR/relay
  • Configuration: 8 position DT with knobs
  • Network support: NMEA 2000 integration
  • Control options: NMEA 2000 or discrete analog inputs
  • Rating: 500A continuous and 1600A cranking per switch
  • Sealing: IP67 and IP6K9K
  • Hardware compatibility: Large mounting holes accept 1/4-20 or M6 attachment hardware
  • Construction details: High-temperature electronics and materials with stainless steel cable lug studs
  • Programming: Relay functions are set with dip switches
  • Battery function: Shares charging on either of two batteries and isolates batteries when no charge sources are present
  • Expansion: Compatible with Link and Cross-Link busbars for additional Dual, Triple, or Single XD relays
  • System support: Supports 2 or 3 battery systems with standard busbar interconnect accessories

Specifications

TypeElectric
BrandEgis Mobile Electric
Manufacturer part #9821-8350
UPC850067590194
Boxed dimensions8 x 4 x 3 in
Shipping weight2.0 lb
