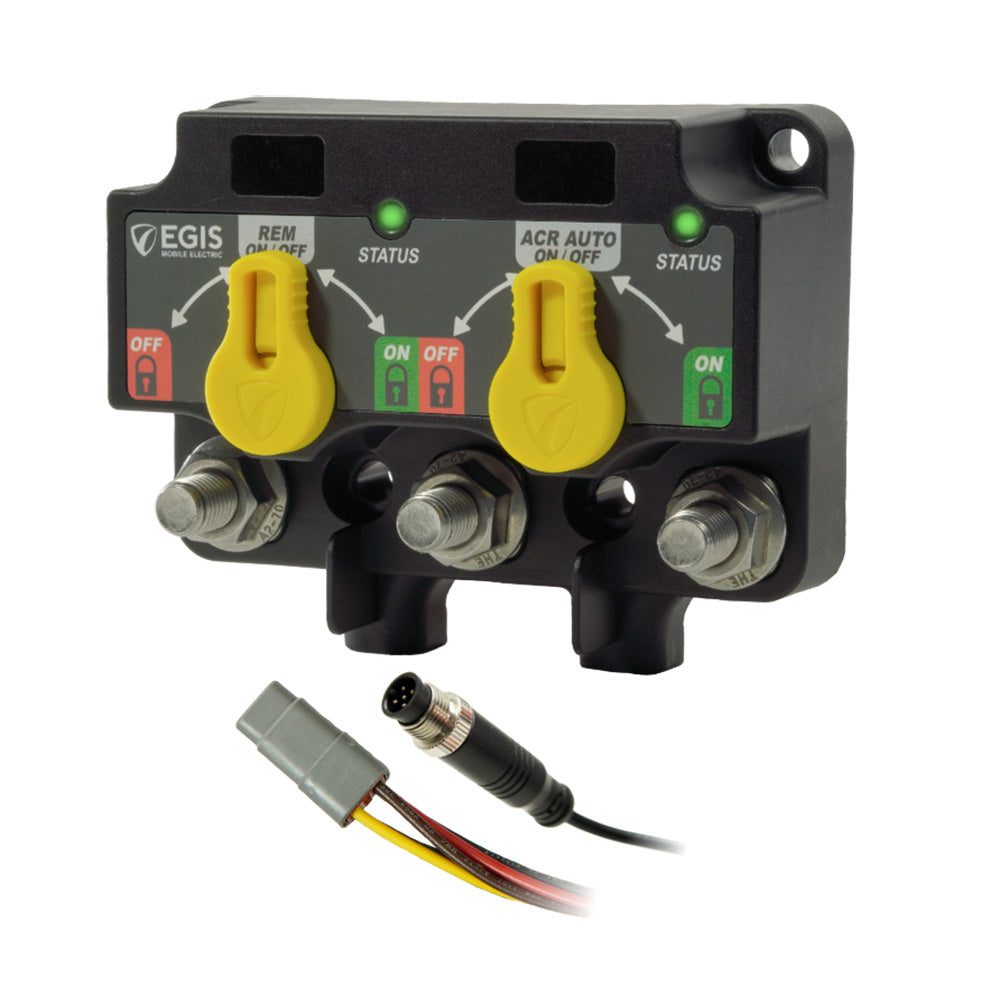

Egis Dual XD - NMEA 2000 - ACR/ACR w/Knobs - 8 Position DT
Egis Dual XD - NMEA 2000 - ACR/ACR w/Knobs - 8 Position DT
SKU:OM-EGISMOBILEEL-DUALXDNMEA-98218330
Low stock: 1 left
Couldn't load pickup availability
Overview
Manage boat battery charging and switching with the Egis Mobile Electric Dual XD ACR/ACR with knobs. NMEA 2000 connectivity lets you control switches and check switch status and battery voltage, while the relays share charging between two batteries and isolate them when charging sources are absent.
Key features
- NMEA 2000 and discrete analog inputs offer two ways to control the unit.
- Manual controls make override status and locked-on or locked-off settings easier to identify.
- DIP switches let installers configure each relay's function.
- Automatic charging sharing and isolation help protect starting-battery charge when no charging source is available.
- Sealed construction and stainless steel cable lug studs suit marine electrical installations.
- Link and Cross-Link busbar expansion supports arrangements with additional XD relays.
Specifications
- Model: Dual XD
- Configuration: ACR/ACR with knobs
- Connection designation: 8 Position DT
- Network: NMEA 2000
- Continuous current rating: 500A per switch
- Cranking current rating: 1600A per switch
- Sealing ratings: IP67 / IP6K9K
- Cable lug stud material: Stainless steel
- Accepted mounting hardware: 1/4-20 / M6
- Relay programming: DIP switches
- Solenoid design: Bi-stable
Good to know
Standard busbar interconnect accessories support two- or three-battery systems. Link and Cross-Link busbars allow connection to additional Dual, Triple or Single XD relays.
Specifications
| Type | Electric |
|---|---|
| Brand | Egis Mobile Electric |
| Manufacturer part # | 9821-8330 |
| UPC | 850067590231 |
| Boxed dimensions | 8 x 4 x 3 in |
| Shipping weight | 2.0 lb |
