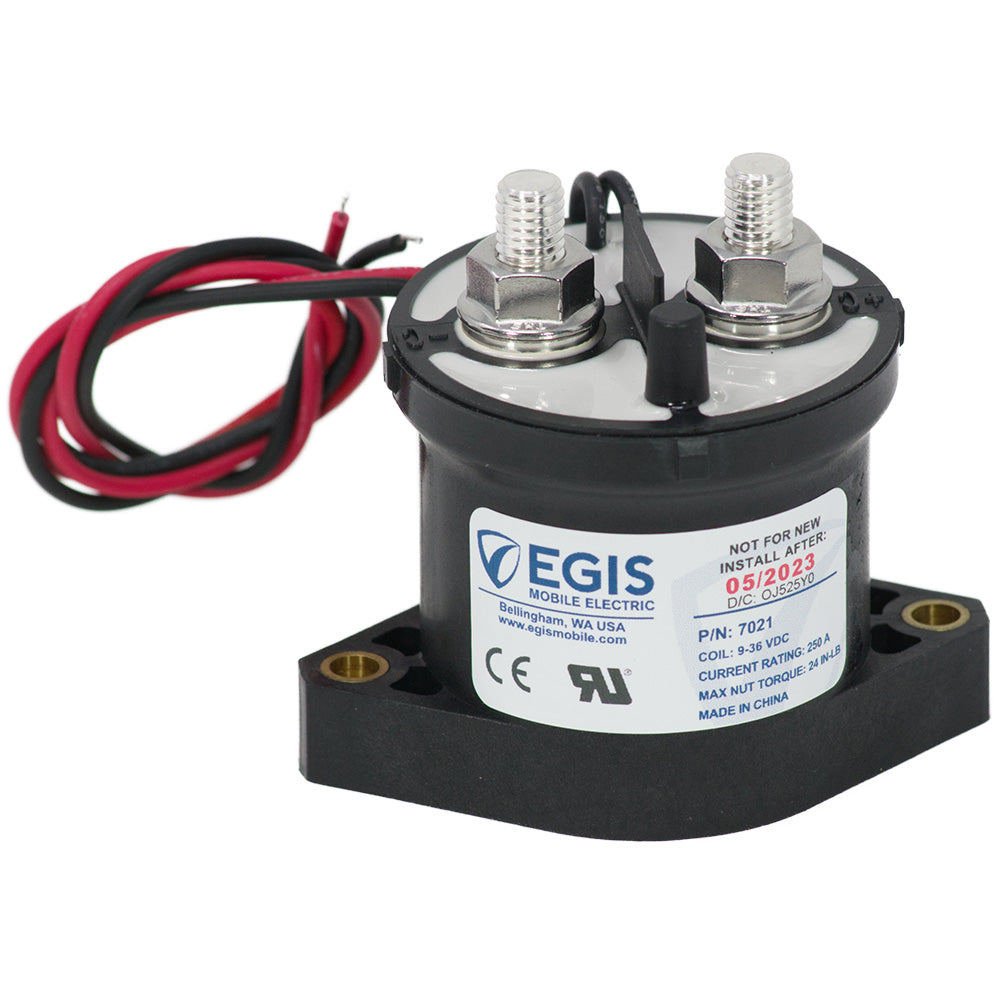

Egis Contactor 250A, 12/24V

The Egis Mobile Electric 250A contactor provides remote switching for high-current engines and auxiliary loads. It supports 12V and 24V control applications and is sealed for use where dust, moisture, and engine-compartment conditions are concerns.

• Product type: Contactor
• Continuous current: 250/500 amps
• Operation control voltage: 9-36 VDC
• Control applications: 12 or 24 Vdc
• Switching voltage noted: Up to 48 V and beyond
• Ingress protection: IP67/IP69K
• Ignition protection: ISO-8846 / UL 1500
• Electrical endurance rating: 1,000,000 cycles
• Switching endurance noted: 6,000 cycles at 250A or 450V and 100,000 cycles at 250A/14V
• Interrupt current capability: Up to 1,500 A at 14 Vdc
• Minimum operating temperature: -40 C
• Maximum operating temperature: 85
• Enclosure: Hermetically sealed against dust and moisture intrusion
• Hardware: 18-8 stainless steel self-locking hardware
• Mounting: Reinforced mounting holes
• Warranty: 4 years
