• Egis 40A Panel Mount Mini Circuit Breaker
  • 103469
  • 103469
  • 103469
  • 103469
1 5

Egis Mobile Electric

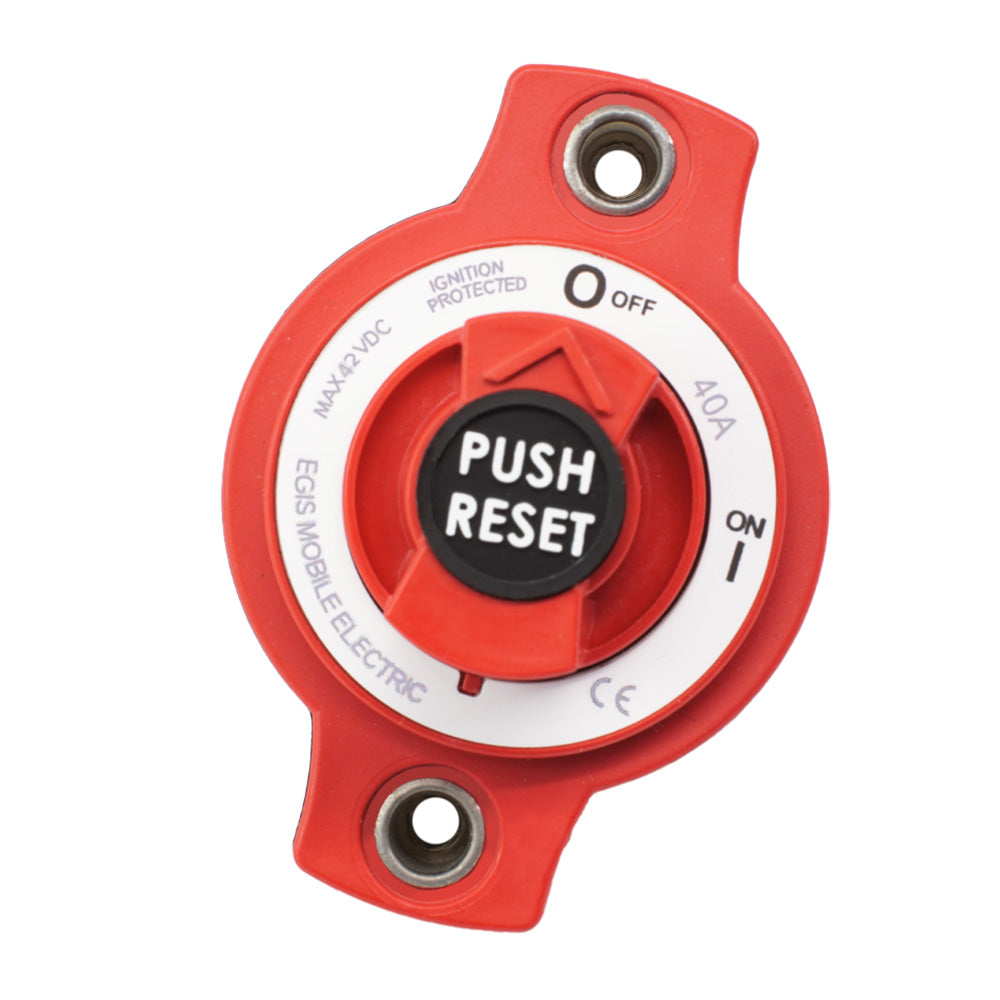

Egis 40A Panel Mount Mini Circuit Breaker

Egis 40A Panel Mount Mini Circuit Breaker

OM-EGISMOBILEEL-40APANELMOUNT-470140

$37.32
$44.40 $37.32
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

40aAmperage

Combine trolling motor circuit switching and electrical protection with the Egis Mobile Electric 40A panel mount mini circuit breaker. It pairs automatic circuit protection with manual battery disconnect switching for non-engine loads, letting you isolate a circuit for maintenance.

Key features

  • Automatic protection interrupts short circuits and over-current loads to help prevent wire insulation from overheating.
  • Rotary on/off control makes manual switching straightforward and the switch position easy to see.
  • Support for 12, 24 and 36 V DC systems accommodates several trolling motor electrical configurations.
  • IP66 sealing limits dust and water intrusion.
  • Stainless steel self-locking hardware resists corrosion and vibration.
  • Compact panel mount format leaves room for additional circuit controls.

Specifications

  • Continuous current: 40 A
  • Maximum voltage: 42 V DC
  • Supported system voltages: 12, 24 and 36 V DC
  • Interrupt current at 14 V DC: 3,000 A
  • Full-current switching endurance: 2,000 cycles
  • Listed cycle switching endurance: 4,000 cycles
  • Ingress protection rating: IP66
  • CE marked: Yes
  • Hardware: Stainless steel, self-locking
  • Mounting: Panel mount
  • Country of manufacture: USA
  • Warranty: 4 years

Good to know

Battery disconnect use is specified for non-engine circuits. The breaker can mount adjacent to battery systems to provide load circuit isolation and protection.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Amperage40a
BrandEgis Mobile Electric
Manufacturer part #4701-40
UPC850053879364
Boxed dimensions5 x 3 x 3 in
Shipping weight0.3 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
