• Egis 20A Panel Mount Mini Circuit Breaker
  • 103467
  • 103467
  • 103467
  • 103467
1 5

Egis Mobile Electric

Egis 20A Panel Mount Mini Circuit Breaker

Egis 20A Panel Mount Mini Circuit Breaker

OM-EGISMOBILEEL-20APANELMOUNT-470120

$37.32
$44.40 $37.32
Sale
Shipping calculated at checkout.

Low stock: 3 left
Authorized Egis Mobile Electric Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

20aAmperage

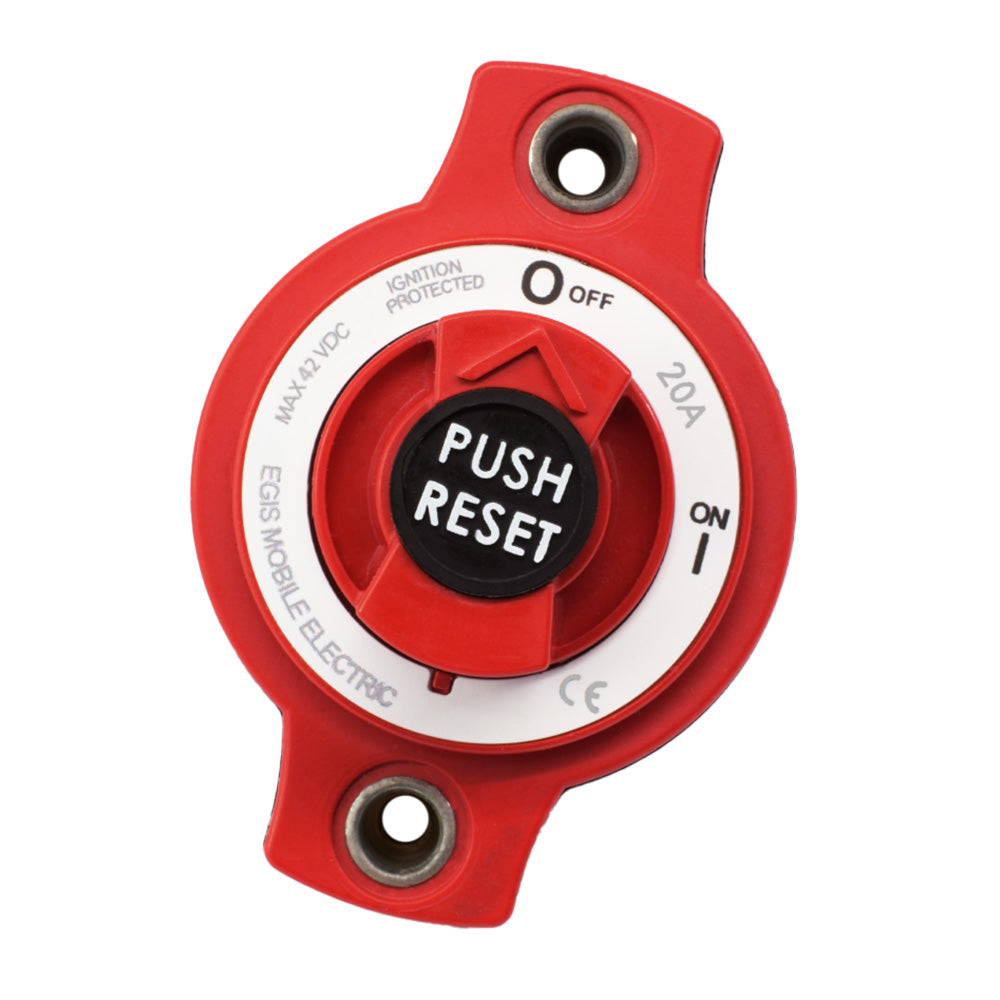

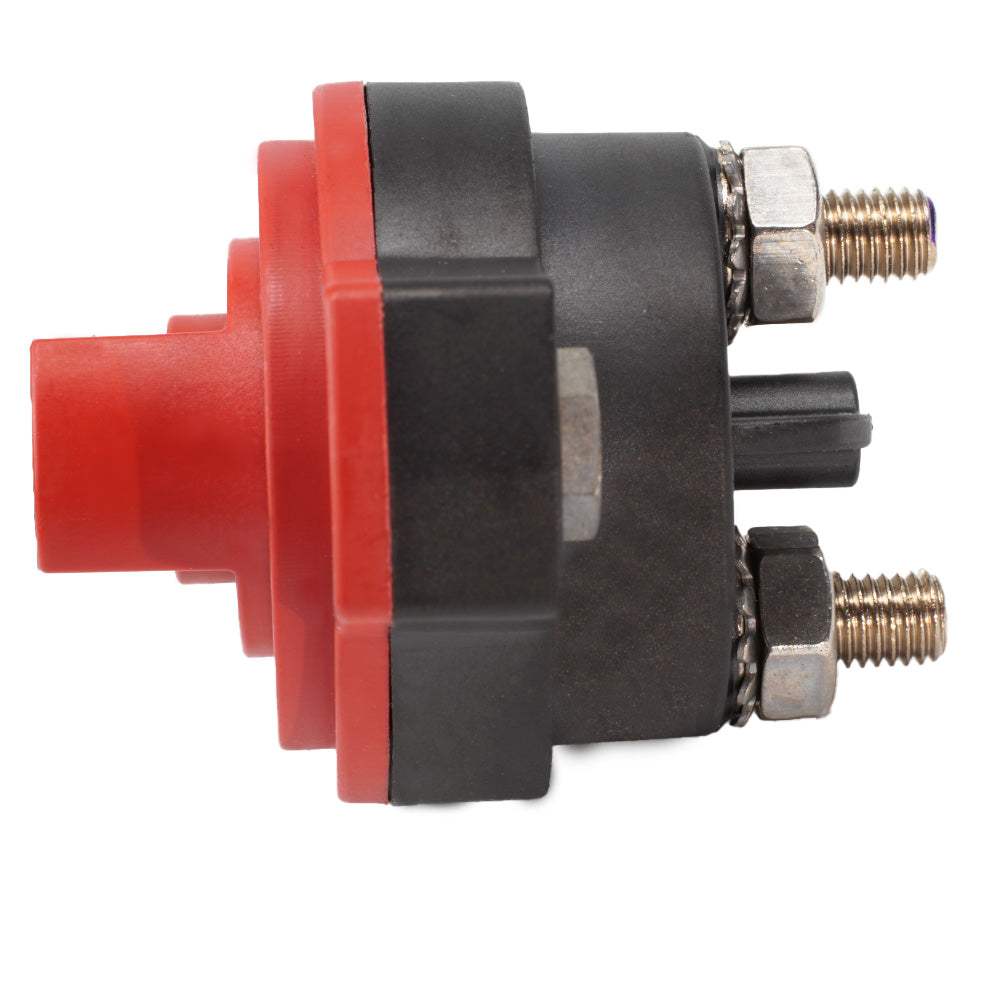

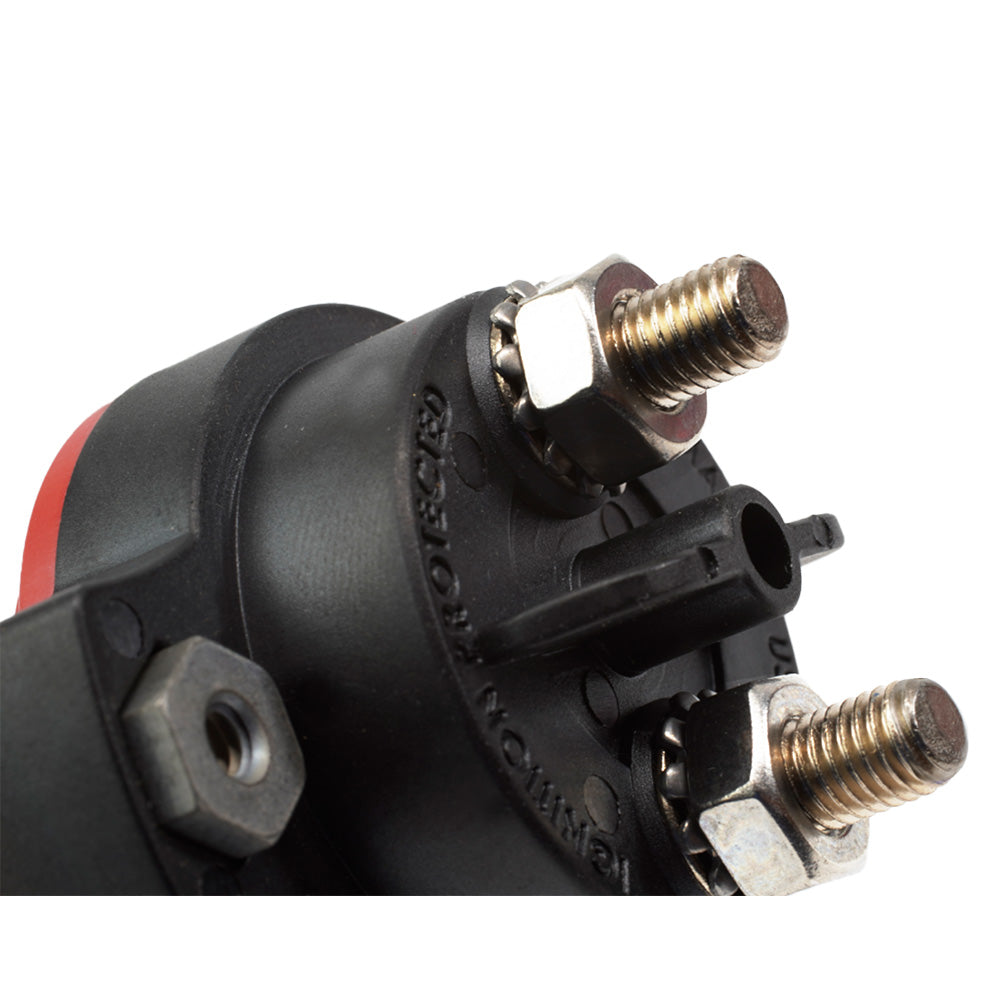

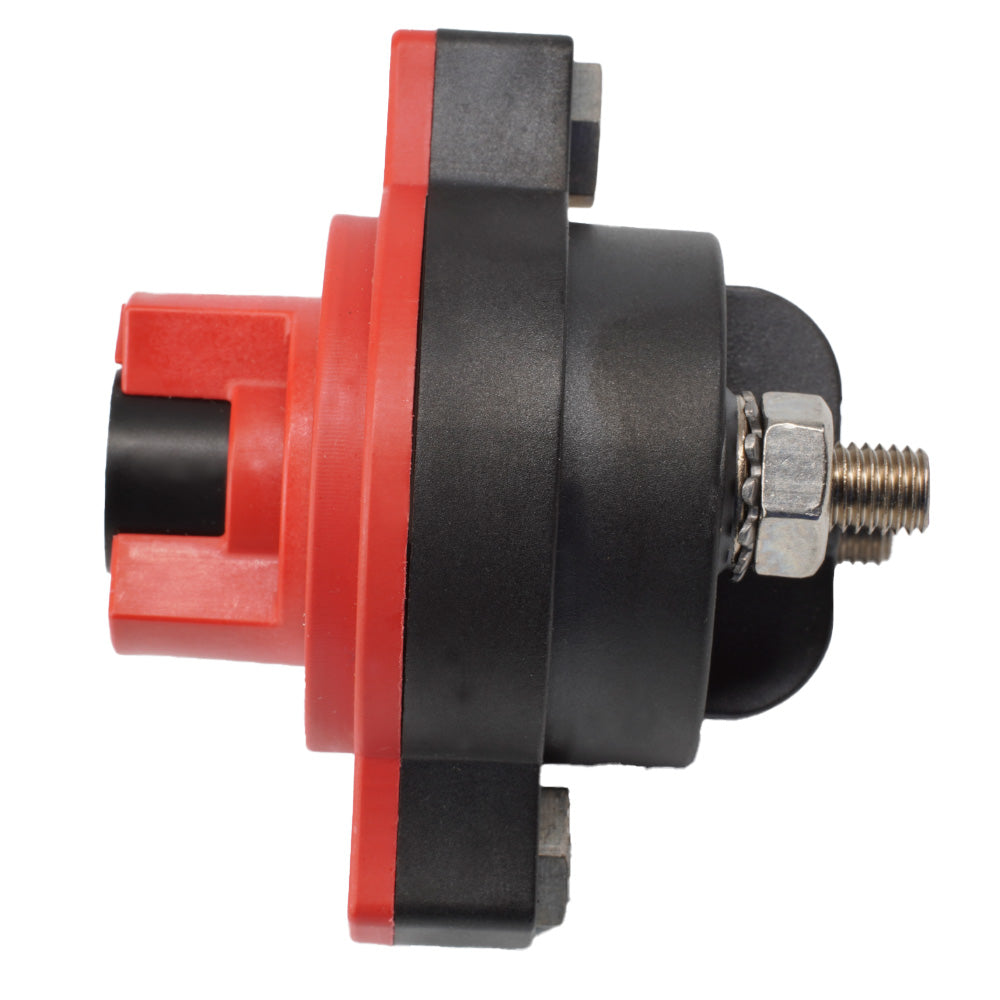

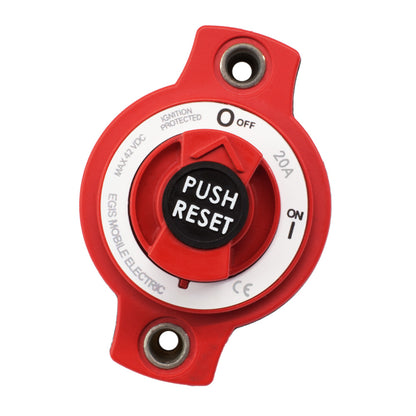

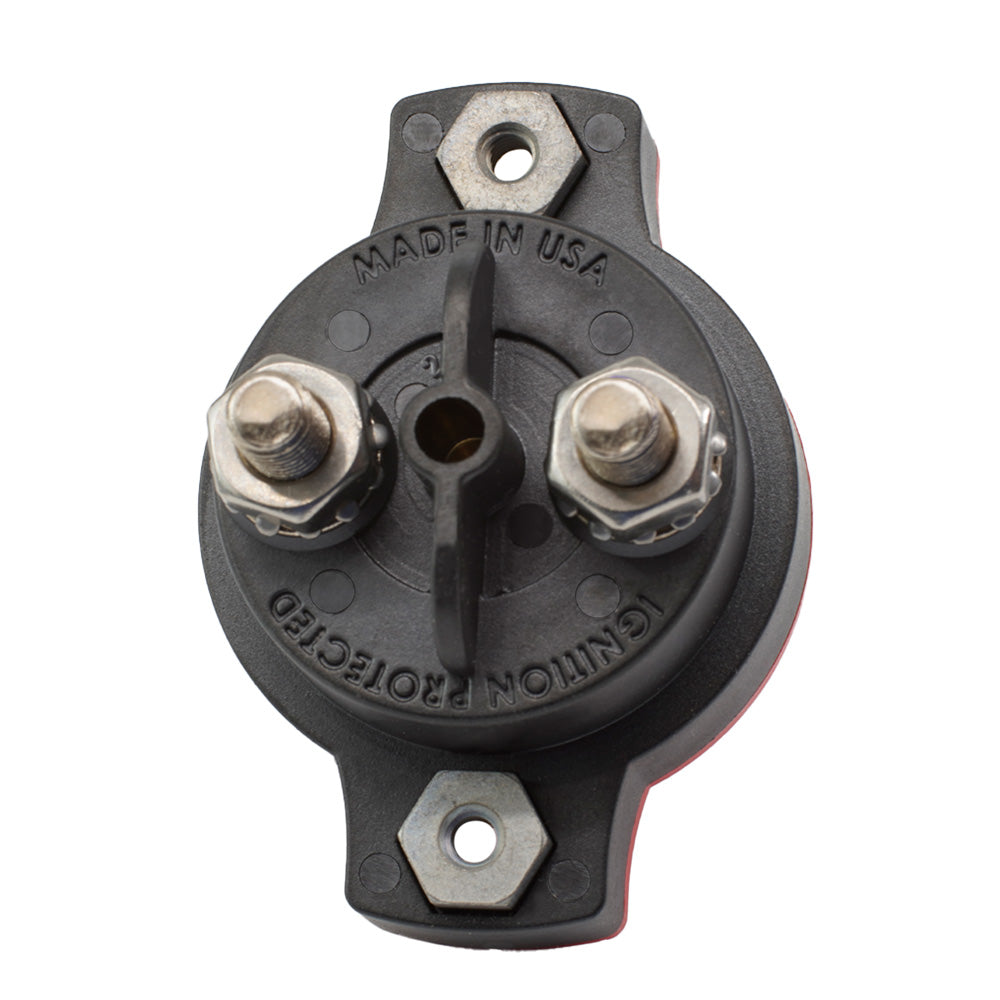

The Egis Mobile Electric 20A Panel Mount Mini Circuit Breaker combines circuit protection with manual disconnect switching in a compact panel-mounted device. It is designed for DC load circuits, including trolling motor switching applications, where over-current protection and convenient isolation are needed.

  • Function: 2-in-1 circuit breaker and disconnect switch for non-engine applications
  • Continuous current: 20A
  • Maximum voltage: 42 Vdc
  • System support: Supports 12V, 24V, and 36V DC applications
  • Ingress protection: IP66 sealed against dust and water intrusion
  • Interrupt current: 3,000A at 14 VDC
  • Cycle switching endurance: 5,000 cycles
  • Electrical and manual switching endurance: 2,000 cycles at full current
  • Certification: CE marked
  • Hardware: Stainless steel self-locking hardware
  • Operation: Easy ON/OFF rotary switch with visible switch position
  • Construction: Weatherproof and high-temperature rated
  • Ignition protection: Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces
  • Origin: Made in the USA
  • Warranty: 4-year warranty
  • Warning: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Specifications

Amperage20a
BrandEgis Mobile Electric
Manufacturer part #4701-20
UPC850053879340
Boxed dimensions5 x 3 x 3 in
Shipping weight0.4 lb
Country of originUNITED STATES
⚠ California Prop 65 Warning: WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manuals & documents

Quick start guidePDF ↓
