Overview

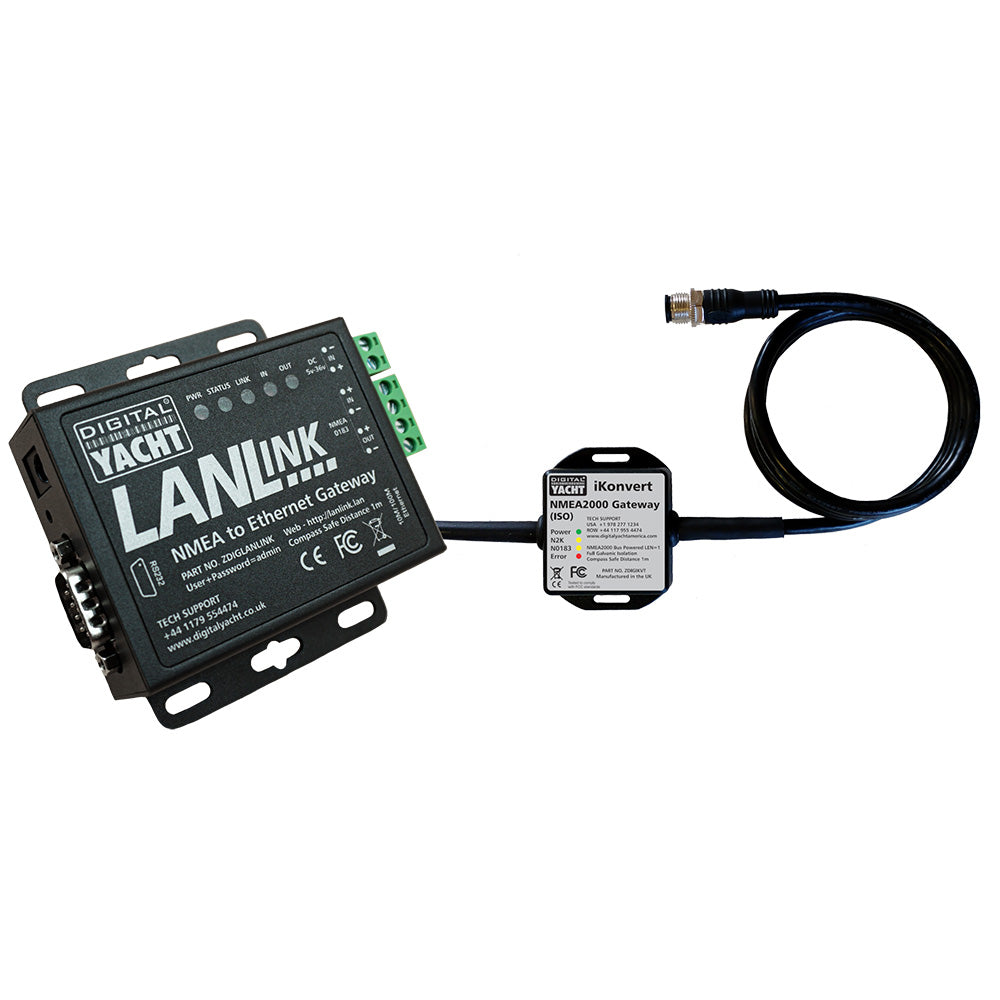

Bring your boat's NMEA 2000 data onto its router network with the Digital Yacht LANLink gateway. Connected devices and compatible apps can then receive navigation information over Ethernet. This version includes an iKonvert NMEA Certified gateway for connection to the NMEA 2000 backbone.
Key features
- Browser-based setup lets you configure network and data settings from a connected device without installing setup software.
- TCP/IP mode supports up to five connected devices, with UDP available as another connection mode.
- Two-way communication allows data to travel in both directions.
- Choose raw encapsulated PGN output or conversion mode for apps using AIS, instrument and GPS data.
- A Cat 5/6 Ethernet connection links the gateway to a router or device.
- Status lights and a browser diagnostics page help you check power, data traffic and network operation.
Specifications
- Brand: Digital Yacht
- Model: LANLink NMEA 2000 to Ethernet Gateway
- Supply voltage: 10-35V DC
- Current consumption: Approximately 50mA at 12V DC
- Network port: Ethernet RJ45 10/100MB
- IP assignment: Static or DHCP
- Connection modes: TCP/IP or UDP
- TCP/IP device limit: 5
- NMEA 0183 baud settings: 4800 or 38400
- NMEA 2000 interface: iKonvert gateway
- Operating temperature: -25 to +70°C
- Indicators: Power, status, link, data in and data out
- Dimensions (W x H): 95 x 86mm
- Additional connectivity: RS232, non-concurrent with NMEA
Good to know
The included iKonvert gateway provides the NMEA 2000 connection. Apps such as TZ iBoat, iNavX, NavLink, iSailor, Imray and Weather 4D can be configured to receive the stream by entering the gateway's IP address and port. TCP/IP is the recommended operating mode.
Specifications
| Brand | Digital Yacht |
|---|---|
| Manufacturer part # | ZDIGLANLN2K |
| UPC | 703791696246 |
| Boxed dimensions | 7 x 6 x 2 in |
| Shipping weight | 0.95 lb |
| Country of origin | UNITED KINGDOM |
