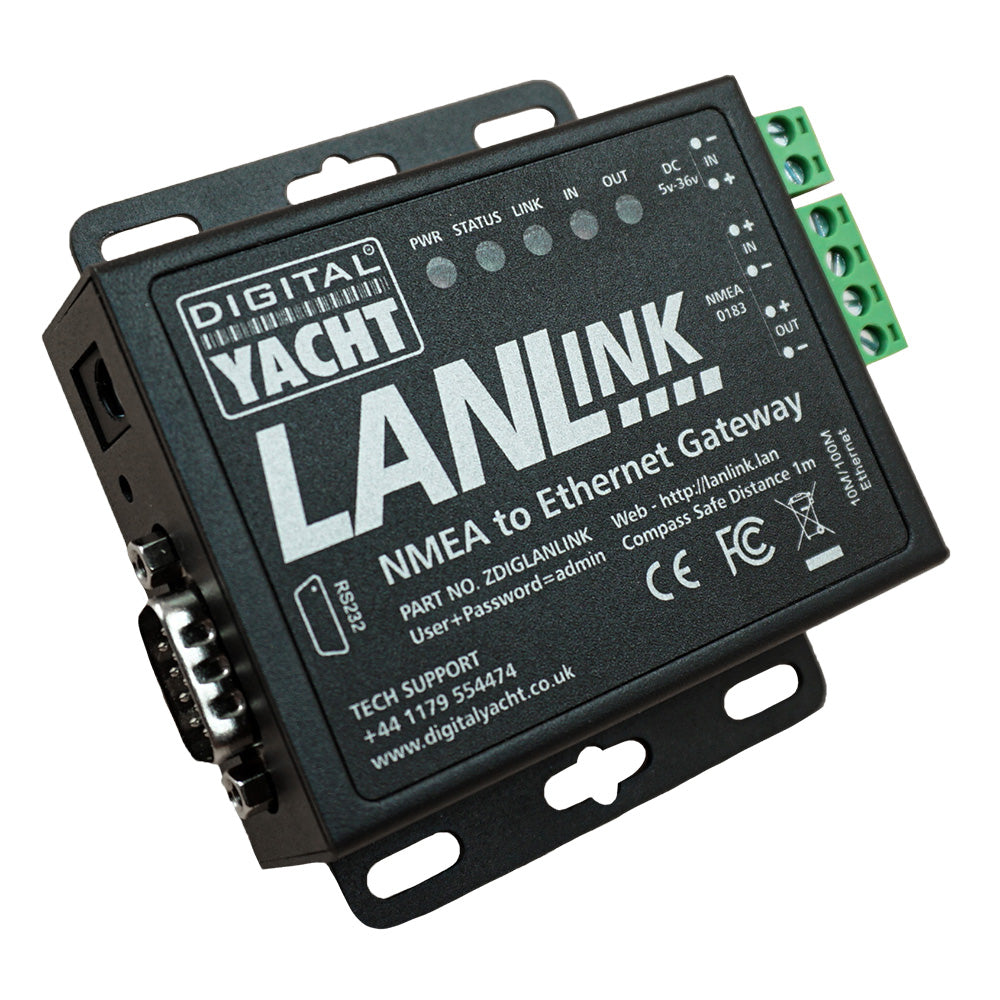

Digital Yacht LANLink NMEA 0183 To Ethernet Gateway

Digital Yacht LANLink NMEA 0183 To Ethernet Gateway

OM-DIGITALYACHT-LANLINKNMEA018-ZDIGLANLINK

$241.88
$299.95 $241.88
Sale
Shipping calculated at checkout.

Low stock: 1 left
Authorized Digital Yacht Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

The Digital Yacht LANLink connects NMEA 0183 data to an Ethernet network so onboard devices and navigation apps can use boat data through a router. It is suited for vessels with a network router or Digital Yacht 4G Connect and can be configured from any browser on a connected device.

  • Type: NMEA 0183 to Ethernet gateway
  • Power: 10-35V DC
  • Consumption: approximately 50mA at 12V DC
  • Network connection: RJ45 Ethernet 10/100MB using Cat 5/6 patch cable
  • IP mode: static or DHCP
  • Operating modes: TCP/IP or UDP
  • TCP/IP support: up to 5 connected devices
  • Data direction: bi-directional
  • NMEA input: configurable 4800 or 38400 baud NMEA 0183
  • Setup: browser-based web interface for baud rate, IP, port, mode, and diagnostics
  • RS232: available for PC apps, non-concurrent with NMEA
  • LED indicators: power, status, link, data in, and data out
  • Operating temperature: -25 to +70 degrees C
  • Dimensions: 95mm W x 86mm H

Specifications

BrandDigital Yacht
Manufacturer part #ZDIGLANLINK
UPC703791696239
Boxed dimensions7 x 6 x 2 in
Shipping weight0.7 lb
