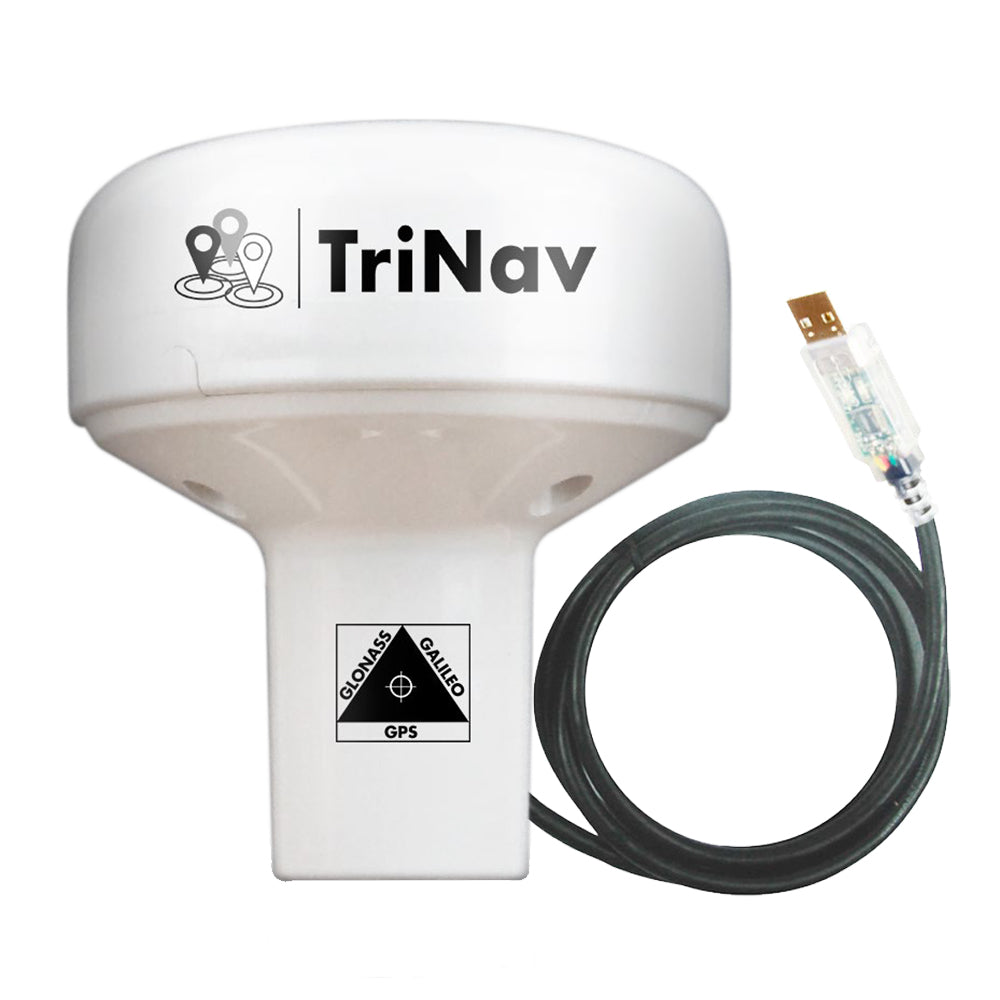

Digital Yacht GPS160 TriNav Sensor w/USB Output

The Digital Yacht GPS160 TriNav Sensor with USB Output is a marine positioning sensor for boats that need GNSS data connected to a computer. It uses GPS, Galileo, and Glonass signals together through TriNav technology, while also allowing field configuration for specific satellite and output needs.

• Satellite systems: GPS, Galileo, and Glonass
• Receiver: 72-channel GNSS positioning receiver
• Technology: TriNav combines all three satellite systems for positioning
• Accuracy: Typically sub-1m accuracy
• Output on this model: USB connection for PC, Mac, and Linux
• Configurable modes: GPS-only, Glonass-only, or Galileo-only operation
• NMEA 0183 variant support: 4800, 38400, and 115200 baud programmable output
• Update rate: User-selectable up to 18Hz
• Power consumption: Less than 20mA at 12V DC
• MOB input: Supports an external MOB switch or system
• MOB output: Generates a synthetic AIS MOB NMEA message when activated
• Professional system support: DTM, GBS, GNS, GRS, GSA, and GST sentence structure
• Configuration: Internal DIP switches for baud rate and NMEA data output formats
• Mounting: Puck installation or compatible with industry-standard 1 inch x 14 TPI threaded mount
• Interference handling: Anti-spoofing algorithm for positioning performance and interference rejection
