• Digital Yacht GPS160 TriNav Sensor w/NMEA 0183 Output
1 1

Digital Yacht

Digital Yacht GPS160 TriNav Sensor w/NMEA 0183 Output

Digital Yacht GPS160 TriNav Sensor w/NMEA 0183 Output

OM-DIGITALYACHT-GPS160TRINAVSE-ZDIGGPS160

$168.91
$209.95 $168.91
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

NMEA 0183Data Interface

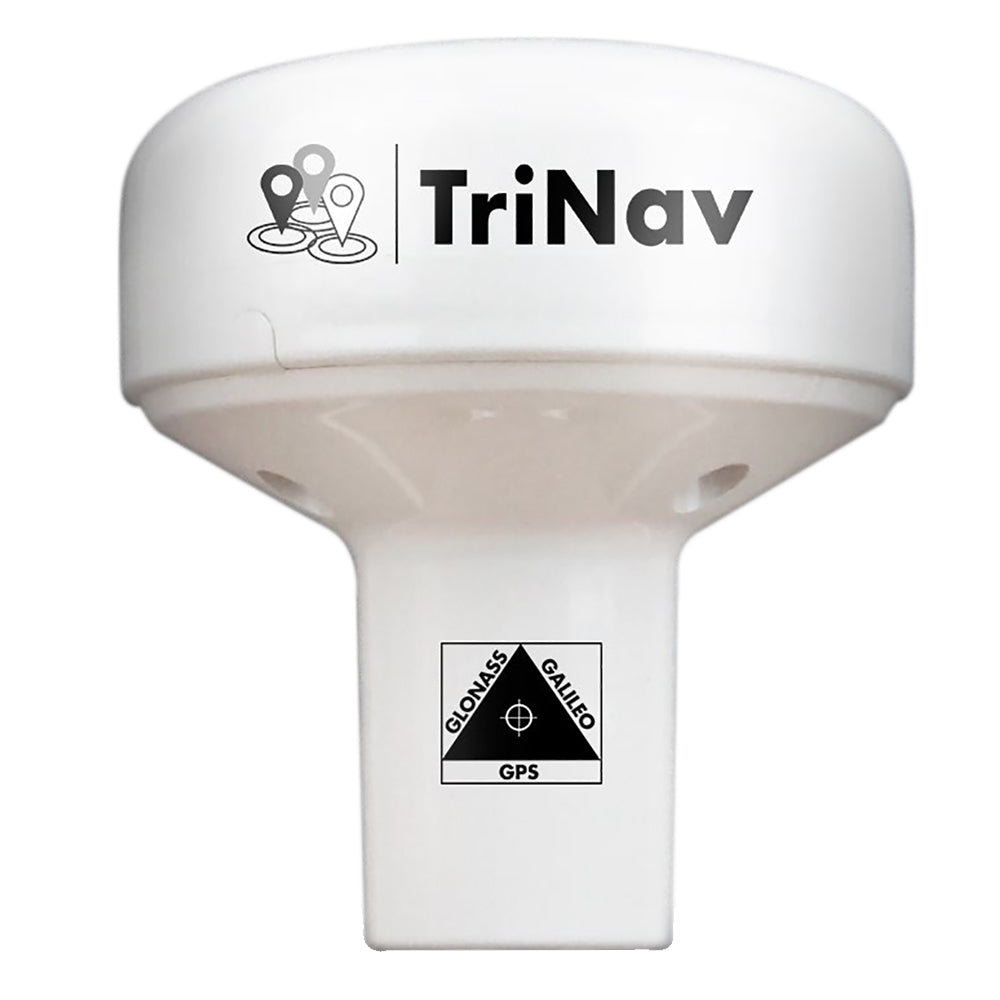

The Digital Yacht GPS160 TriNav Sensor is a marine positioning sensor with NMEA 0183 output. It uses GPS, Galileo, and GLONASS signals, and TriNav technology can combine data from all three systems for accurate and redundant positioning.

This version provides NMEA 0183 output and can be field configured for different operating modes, output settings, update rates, and NMEA sentence structures. It also supports an external MOB switch or system that can generate a synthetic AIS MOB message on the NMEA output for display on a compatible local plotter.

  • Satellite systems: GPS, Galileo, and GLONASS
  • Receiver: 72 channel GNSS positioning receiver
  • Technology: TriNav combines satellite data from supported systems
  • Accuracy: Typically sub 1m accuracy
  • Output: NMEA 0183
  • Baud rates: 4800, 38400, and 115200 baud, user selectable
  • Configuration: Internal DIP switches for baud rate, NMEA data format, and related output settings
  • Update rate: Up to 18Hz, user selectable
  • Power consumption: Ultra low, less than 20mA at 12V DC
  • MOB support: Input for MOB switch or system; activation generates synthetic AIS MOB NMEA output
  • Operating modes: Can be configured for GPS only, GLONASS only, or Galileo only operation
  • Positioning support: Anti-spoofing algorithm for positioning performance and interference rejection
  • Professional system support: ECDIS support with DTM, GBS, GNS, GRS, GSA, and GST datum sentence structures
  • Mounting: Puck installation or compatible with third-party industry standard 1 inch x 14 TPI threaded mounts
  • Other variants: NMEA 2000 with iKonvert interface, wireless with WLN10SM, and GPS160USB with USB connection for PC/MAC

Specifications

Data InterfaceNMEA 0183
BrandDigital Yacht
Manufacturer part #ZDIGGPS160
UPC703791696031
Boxed dimensions10 x 7 x 4 in
Shipping weight1.2 lb
