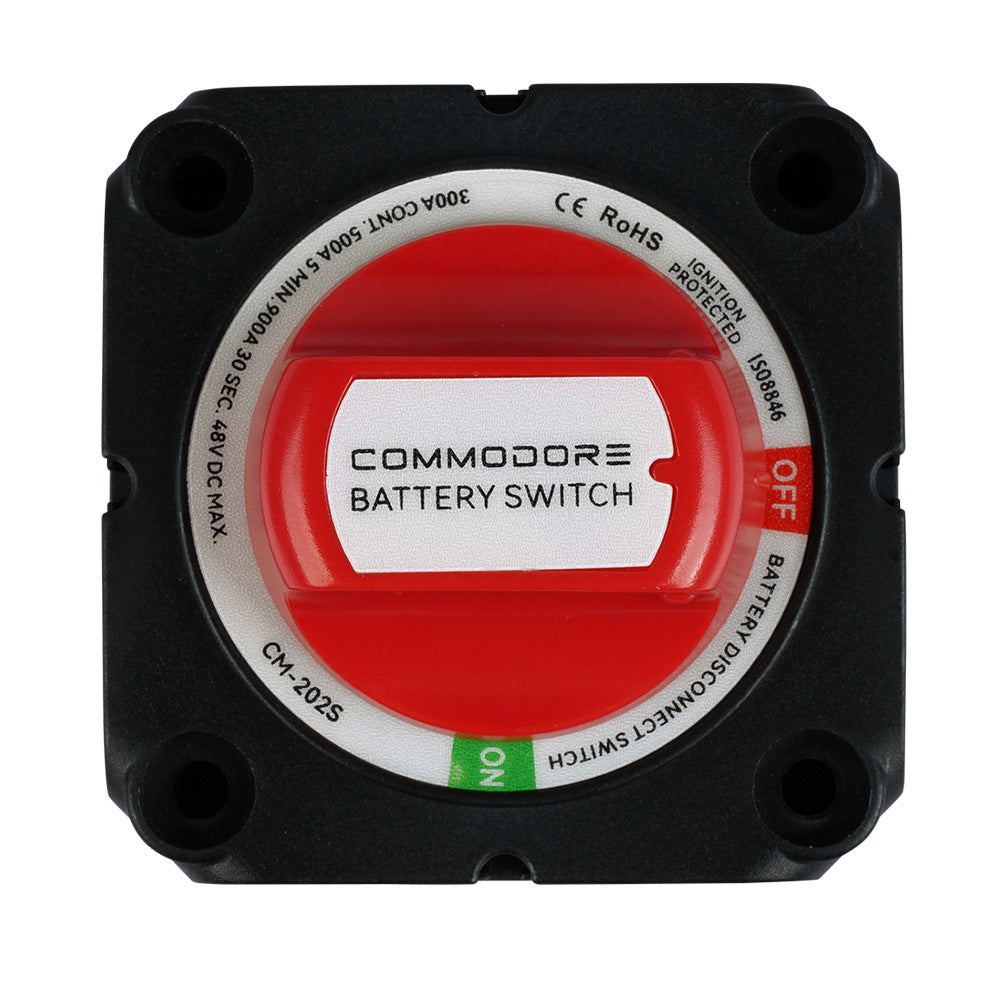

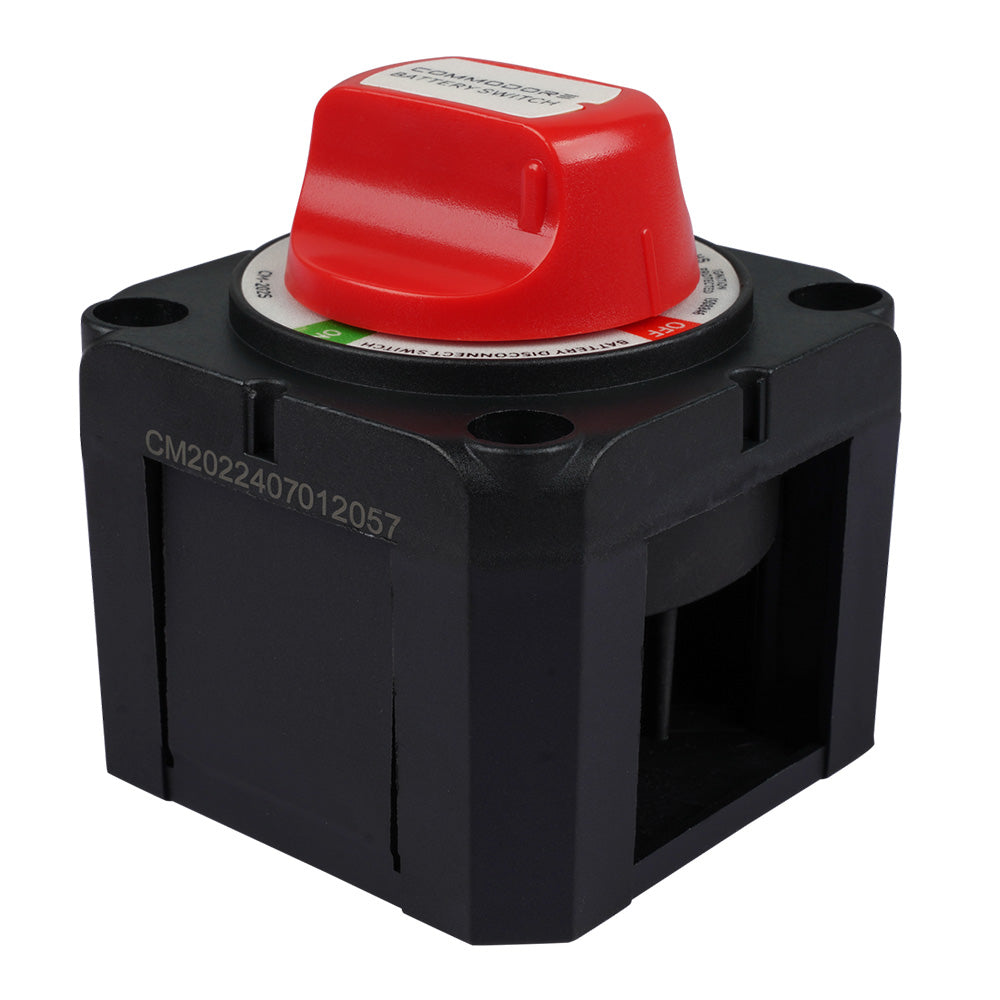

Commodore On/Off Battery Disconnect Switch
Commodore On/Off Battery Disconnect Switch
SKU:OM-COMMODORE-ONOFFBATTERY-CM202S
Low stock: 2 left
Couldn't load pickup availability
Overview
The Commodore On/Off Battery Disconnect Switch is made for isolating a single battery circuit in marine, RV, or off-grid electrical systems. It supports high-current use and offers flexible mounting with protected rear terminals.
- Switch type: Single circuit on-off battery disconnect switch
- Maximum voltage: 48 VDC
- Current ratings: 300A continuous, 500A intermittent, and 900A cranking
- Battery inputs: 1
- Switch positions: 2
- Studs: Tin-plated copper studs
- Color: Grey
- Mounting: Surface-mount or flush-mount installation
- Wire access: Isolating cover has three snap-off side pieces for cable entry from multiple directions
- Cable clearance: 1.12 in. (28.45 mm) for 4/0 AWG cables
- Cable size to meet ratings: 4/0 AWG (120mm2)
- Protection: IP66-rated isolating cover
- Standards: ISO 8846 Marine Ignition Protection, ABYC C-7, UL 1107, and CSA C22.2 No.4
- Weight: 0.83 lb. (0.38 kg)
Specifications
| Continuous Amperage | 300 |
|---|---|
| Positions | 2 |
| Brand | Commodore |
| Manufacturer part # | CM-202S |
| UPC | 817683023154 |
| Boxed dimensions | 4 x 3 x 3 in |
| Shipping weight | 0.5 lb |
| Country of origin | CHINA |
