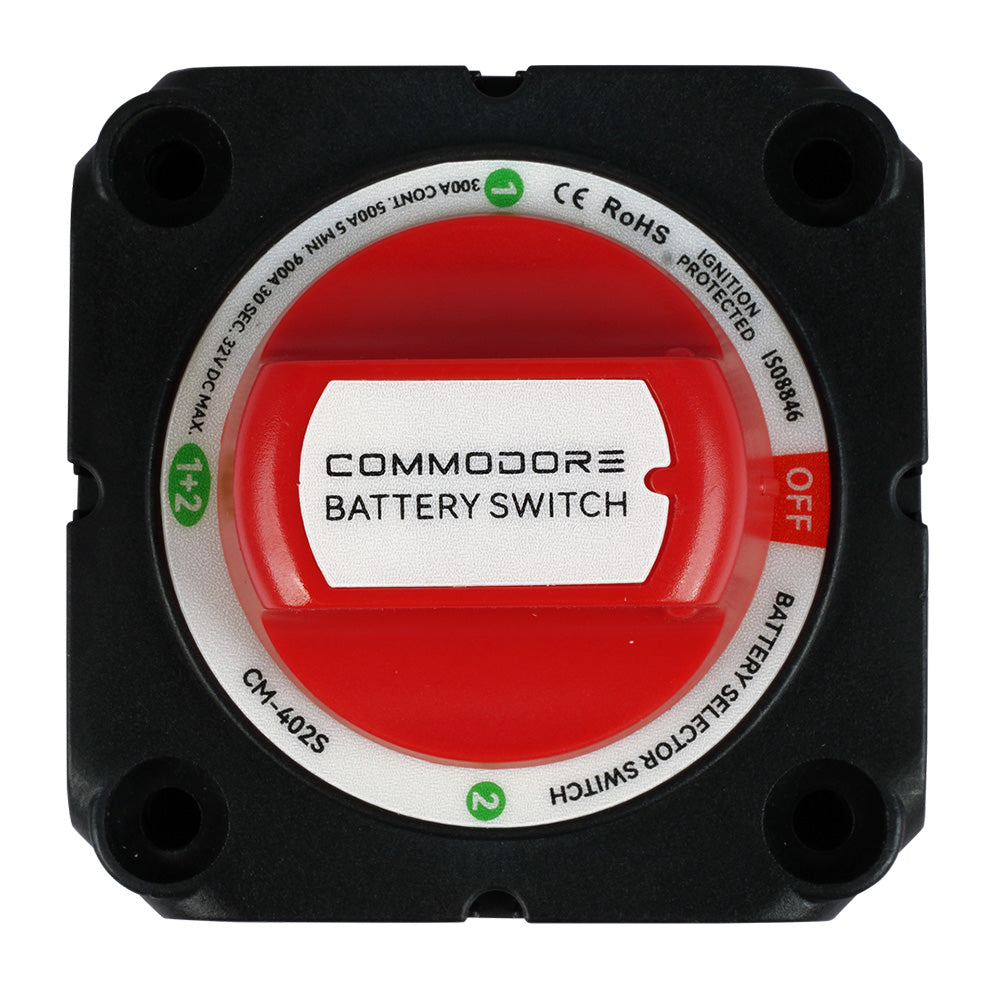

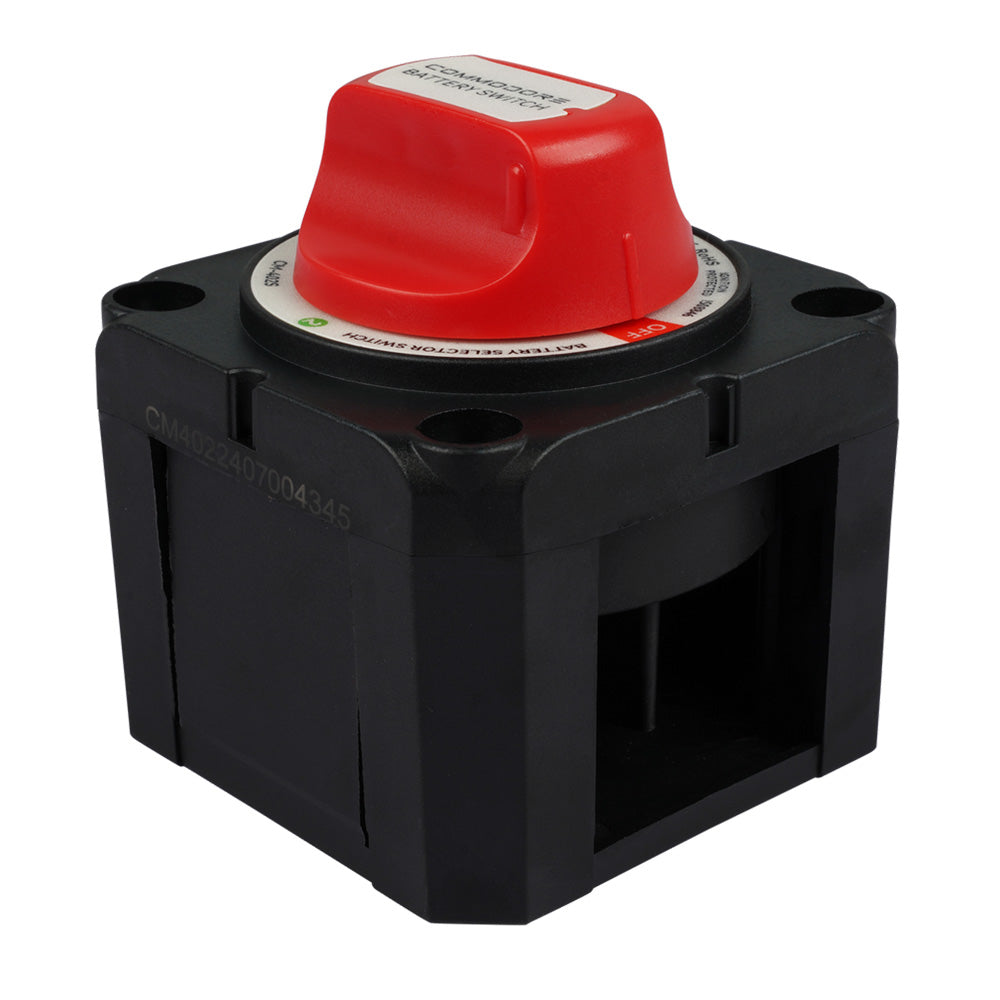

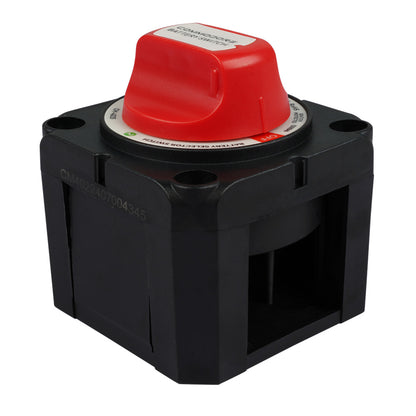

Commodore 4-Position Compact Dual Battery Selector Switch
Commodore 4-Position Compact Dual Battery Selector Switch
SKU:OM-COMMODORE-4POSITIONCOMPA-CM402S
Low stock: 1 left
Couldn't load pickup availability
Overview
The Commodore 4-position compact dual battery selector switch is made for managing battery banks in marine, RV, and off-grid electrical systems. It can isolate banks, combine batteries, or route power to loads, with ratings and protection features suited to 12V to 32V applications.
- Switch type: 4-position selector
- Application voltage: 12V to 32V systems
- Maximum voltage: 32 VDC
- Battery inputs: 1
- Switch positions: 4
- Battery combine: Yes
- Continuous current rating: 300A
- Cranking current rating: 900A
- Stud material: Tin-plated copper
- Terminal design: One-piece terminal stud design
- Cover: Isolating cover with three snap-off side pieces for wire access
- Water resistance: IP66 rated
- Certifications and standards: ISO 8846 Marine Ignition Protection, ABYC, UL 1500, and SAE J1171
- Color: Red
- Cable clearance for 4/0 AWG cables: 1.12 in (28.45 mm)
- Cable size to meet ratings: 4/0 AWG (120mm2)
- Weight: 0.83 lbs (0.38 kg)
Specifications
| Continuous Amperage | 300 |
|---|---|
| Positions | 4 |
| Brand | Commodore |
| Manufacturer part # | CM-402S |
| UPC | 817683023161 |
| Boxed dimensions | 3 x 3 x 3 in |
| Shipping weight | 0.7 lb |
| Country of origin | CHINA |
