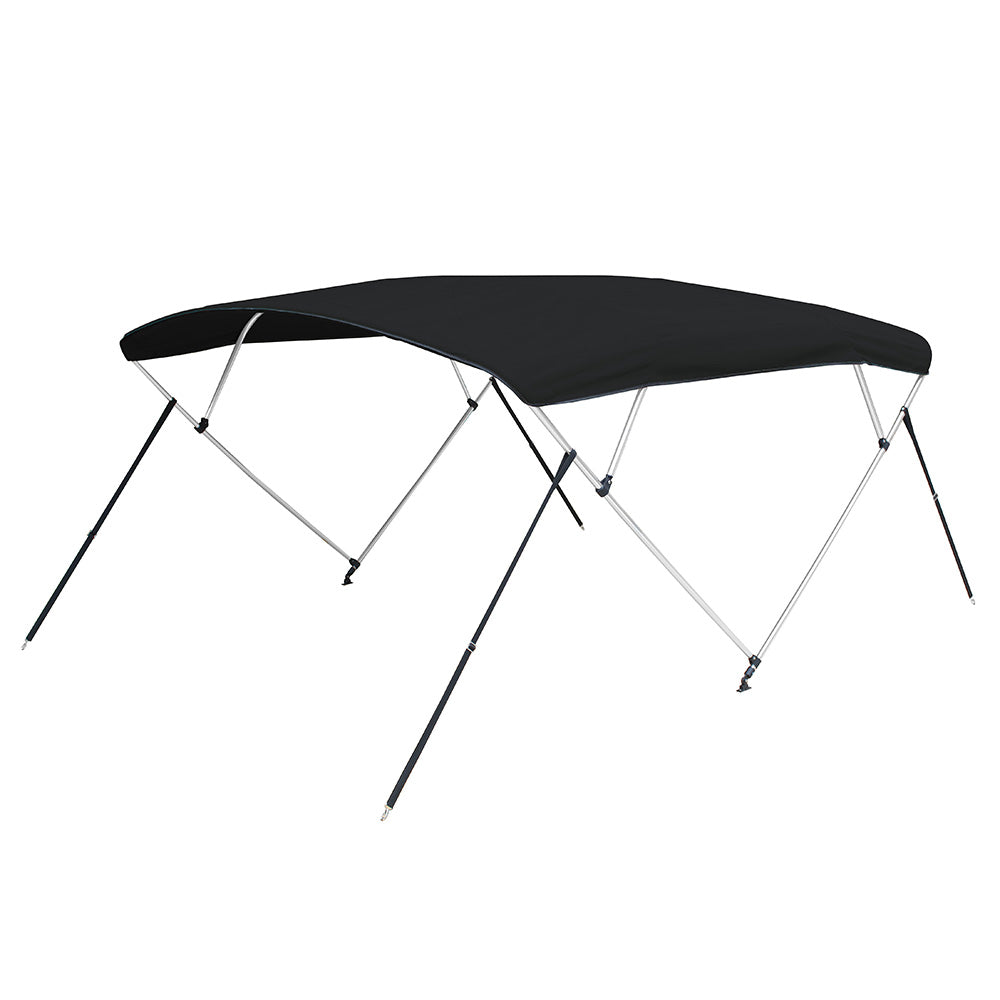

Carver 3 Bow 5487U Bimini Top with Boot - Black Acrylic

For shade aboard boats with an 85–90 inch beam, the Carver 5487U bimini top provides a black acrylic canopy on a three-bow frame. Its 54-inch height and 72-inch length give boat owners a defined coverage size, and a boot comes with the top.

Key features

• Sun-blocking acrylic provides overhead protection while remaining breathable.
• Water repellency and resistance to mildew help the fabric cope with outdoor conditions.
• UV, fade and rot resistance help preserve the canopy through exposure to the elements.
• The main bow has a double wall for additional structural strength.
• Anti-wick stitching thread limits moisture movement through the seams.
• Marine acrylic binding finishes the canvas edges without leaving raw fabric exposed.

Specifications

• Model: 5487U
• Frame configuration: 3 bow
• Color: Black
• Beam width fit: 85–90 inches
• Height: 54 inches
• Length: 72 inches
• Fabric: 100% solution-dyed marine acrylic
• Fabric weight: 9.25 oz
• Standard tubing: 7/8-inch bright-dipped anodized heavy-wall aluminum
• Standard fittings: Black nylon
• Adjuster buckles and assembly fasteners: 316-grade stainless steel
• Snap hooks and eye straps: Stainless steel
• Canvas binding: 100% marine-grade acrylic
• Fabric warranty: 10-year limited warranty on Sunbrella or Outdura

Good to know

The supplied acrylic is Sunbrella or Outdura, according to availability. A boot is included, and stainless steel fittings are available as an upgrade for aluminum frames.
