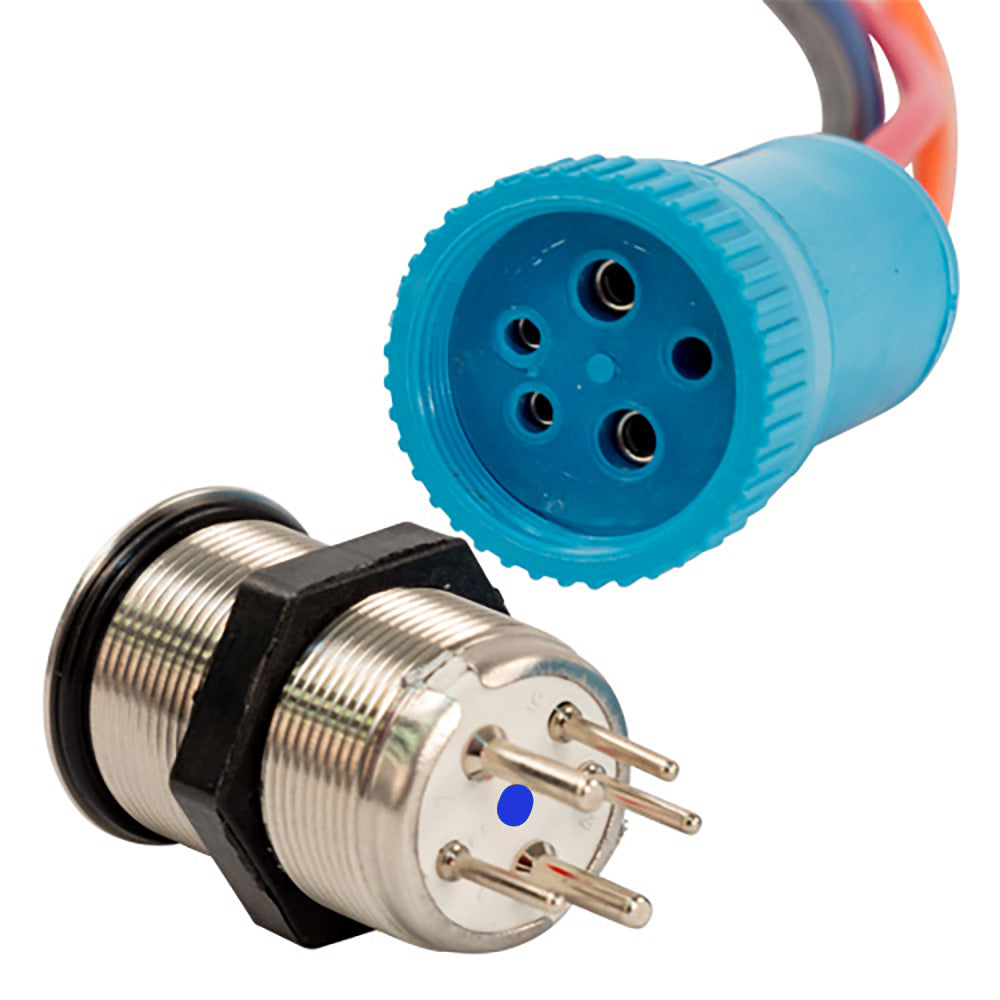

Bluewater 22mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 4' Lead
Bluewater 22mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 4' Lead
SKU:OM-BLUEWATER-22MMPUSHBUTTON-905931134
Low stock: 3 left
Couldn't load pickup availability
Overview
Make three switch states easy to identify on your boat's dash with Bluewater's 22mm Off/On/On push button switch. Its standard-contact operation is paired with blue lighting for off, green for the first on state and red for the second.
Key features
- Off/On/On standard contact provides two on states within one switch.
- Color-changing LED indication helps you check the selected state at night.
- The switch body and included gasket provide IP69K-rated protection against water.

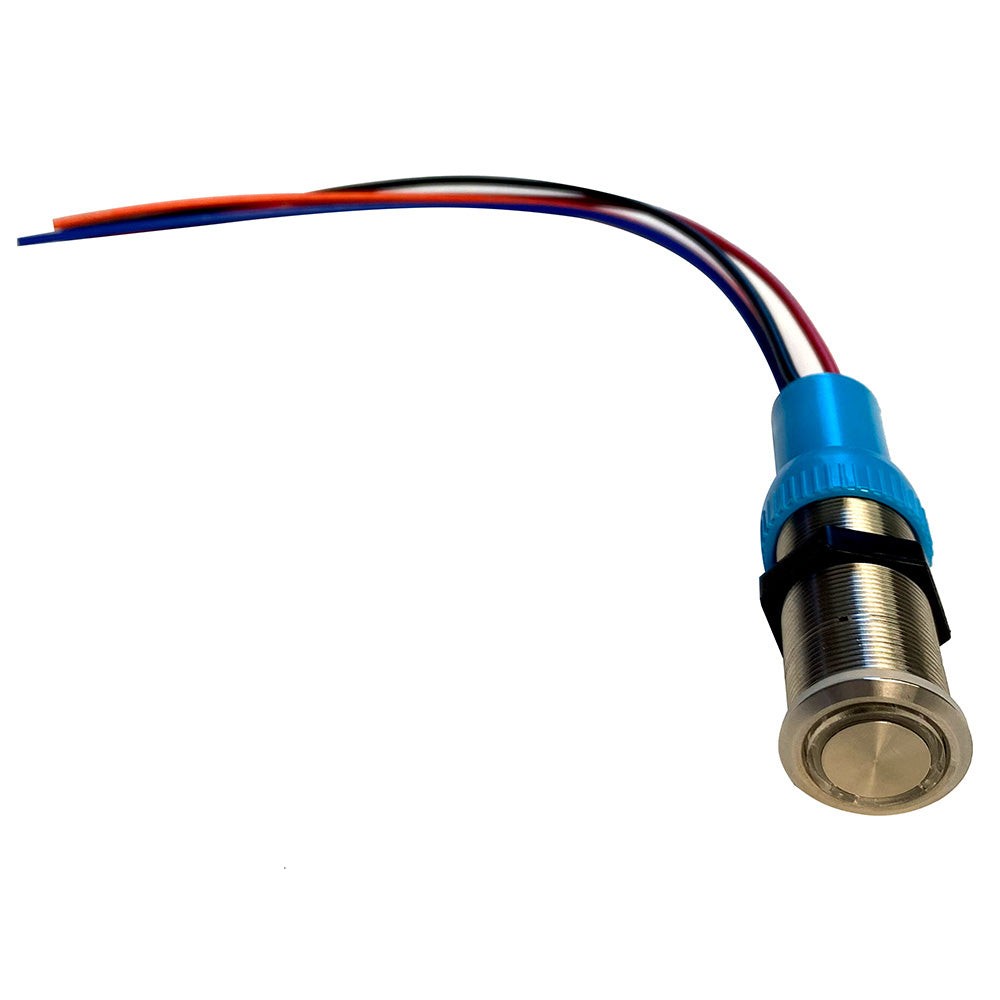

- A 4-foot lead accommodates routing for the electrical connection.
- Color-coded button contacts help you identify the connections during fitting.
Specifications
- Function: Off/On/On, standard contact
- LED colors: Off—blue; first on—green; second on—red
- Switch rating: 20A, 12–24VDC
- Material: Stainless steel
- Waterproof rating: IP69K
- Lead length: 4 feet
- Mounting hole diameter: 22mm
- Maximum mounting material thickness: 6mm
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
- Rear marking: Blue dot
Good to know
Fit the switch through a 22mm hole in material no thicker than 6mm. Wiring uses three contacts for the button and two for the LEDs; the gasket is supplied.
Specifications
| Action | ON-ON-OFF |
|---|---|
| Color | Blue/Green/Red |
| Brand | Bluewater |
| Manufacturer part # | 9059-3113-4 |
| Boxed dimensions | 9 x 6 x 1 in |
| Shipping weight | 0.46 lb |
