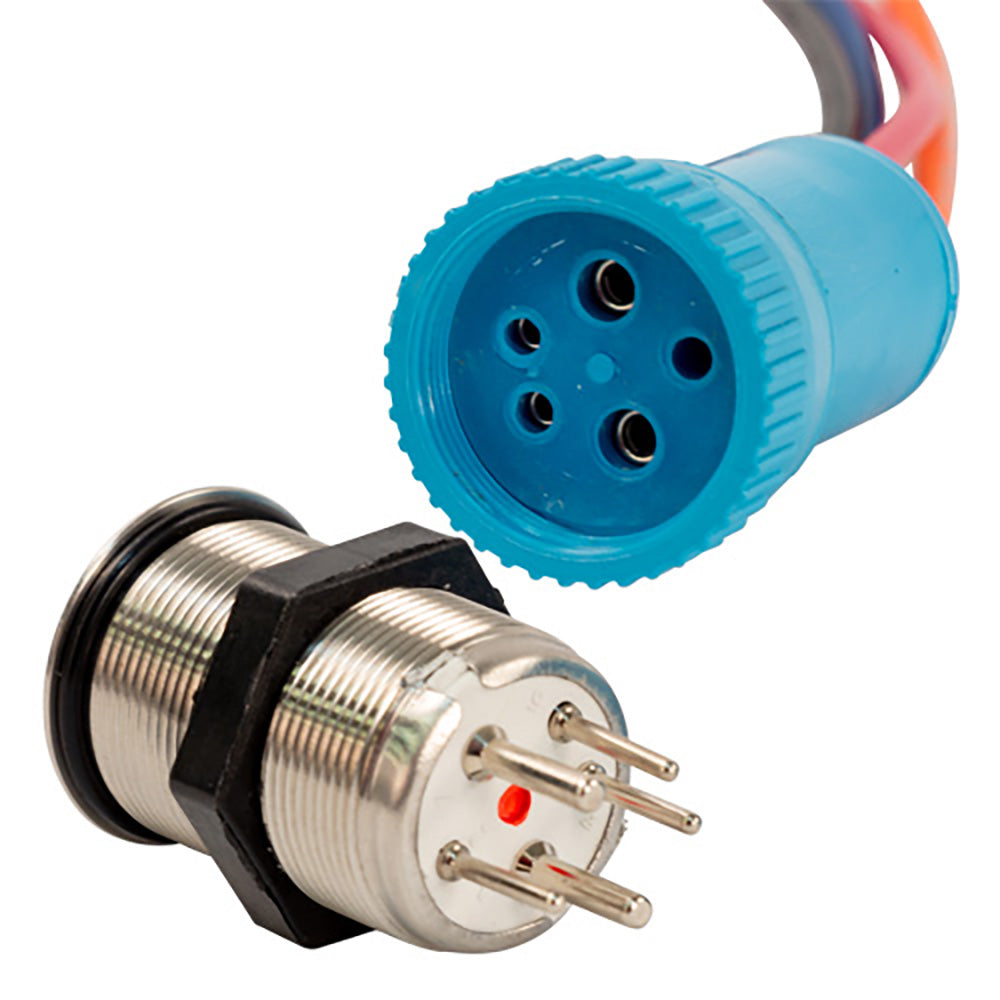

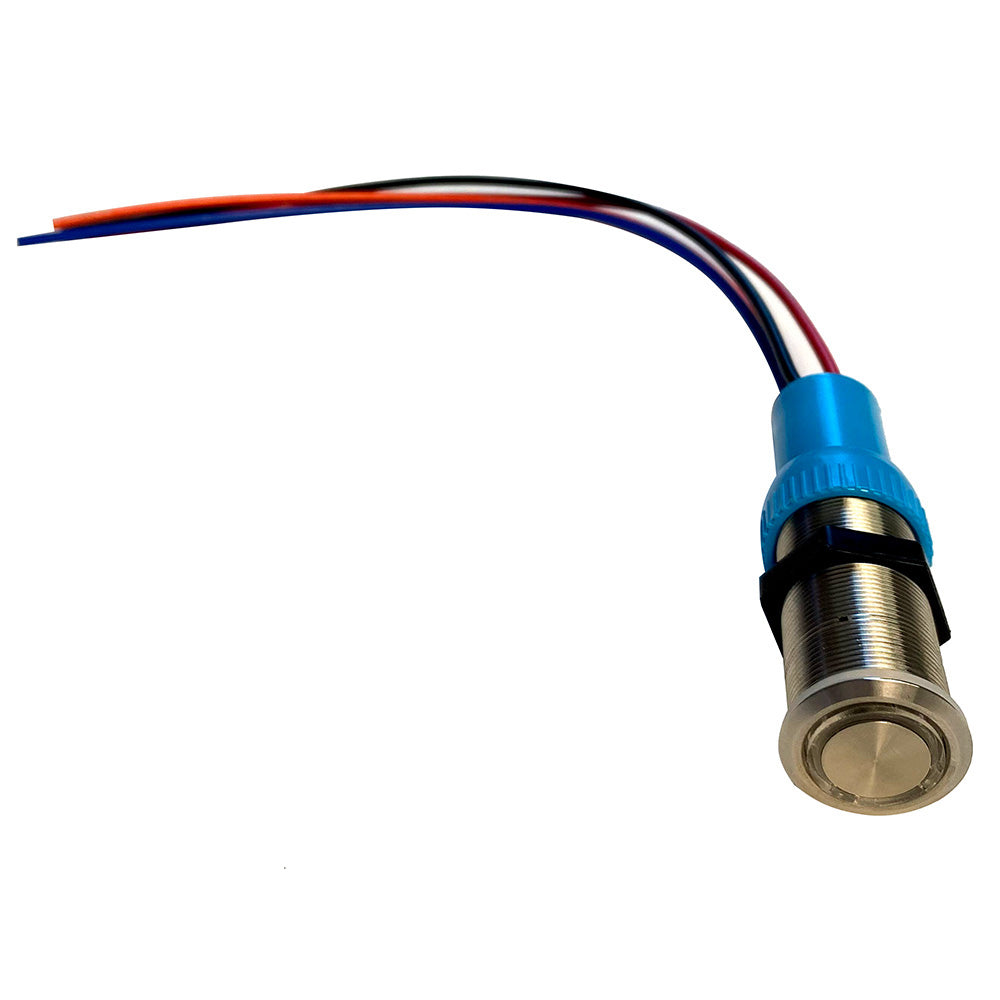

Bluewater 22mm Push Button Switch - Off/On Contact - Blue/Red LED - 4' Lead
Bluewater 22mm Push Button Switch - Off/On Contact - Blue/Red LED - 4' Lead
SKU:OM-BLUEWATER-22MMPUSHBUTTON-905911134
Low stock: 3 left
Couldn't load pickup availability
Overview
Add push-button control and a visible status light to your boat's dash with this Bluewater 22mm switch. Its standard Off/On contact controls the connected function, while the LED changes from blue when off to red when on.
Key features
- Blue backlighting helps you locate the switch at night.
- Red illumination indicates that the connected function is on.
- The switch body and supplied gasket provide an IP69K waterproof rating.
- A 4-foot lead provides length for connecting the switch wiring.
- Color-coded button contacts help identify connections during installation.
Specifications
- Function: Off-On, standard contact
- LED colors: Blue when off, red when on
- Switch rating: 20A / 12–24VDC
- Material: Stainless steel
- Waterproof rating: IP69K with included gasket
- Lead length: 4 feet
- Mounting hole diameter: 22mm
- Maximum mounting material thickness: 6mm
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
- Button contacts: 3
- LED contacts: 2
Good to know
The gasket is included. Installation requires a 22mm hole in material no thicker than 6mm, with separate connections for the three button contacts and two LED contacts.
Specifications
| Action | ON-OFF |
|---|---|
| Color | Blue/Red |
| Brand | Bluewater |
| Manufacturer part # | 9059-1113-4 |
| Boxed dimensions | 6 x 5 x 2 in |
| Shipping weight | 0.41 lb |
