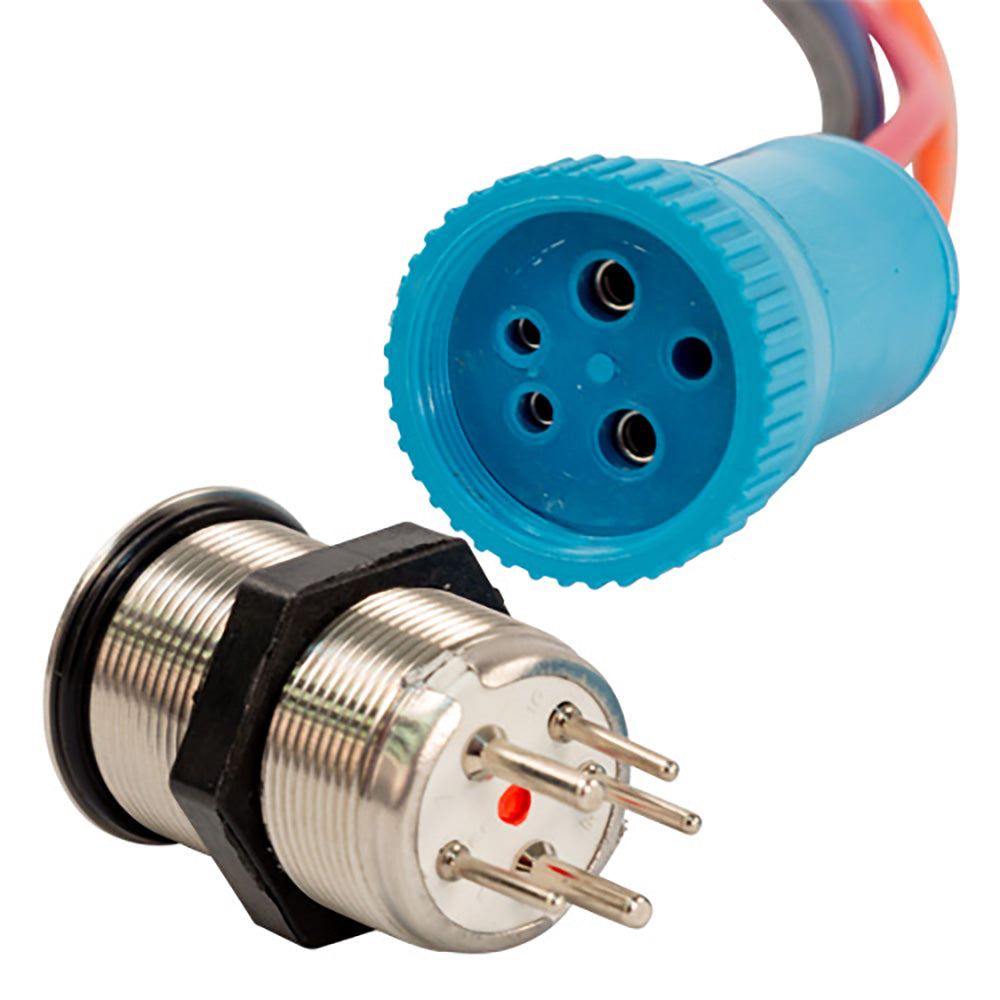

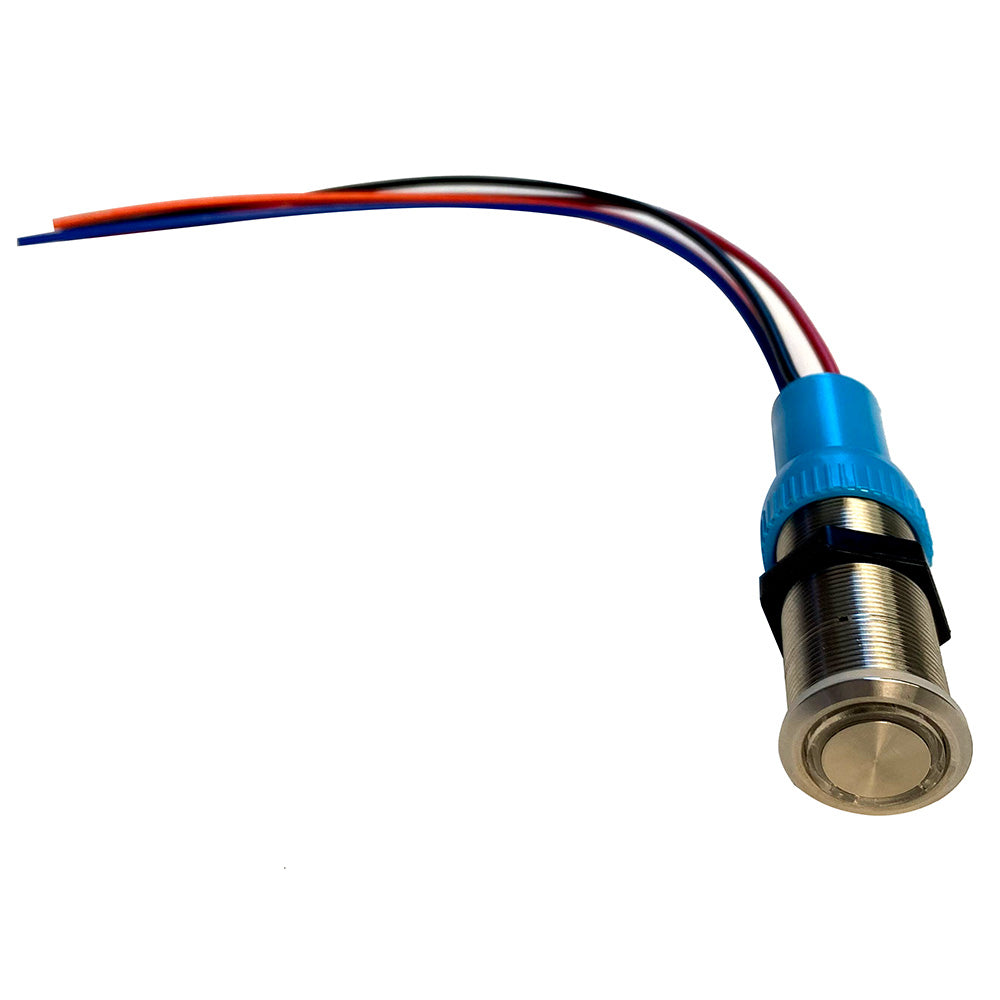

Bluewater 22mm Push Button Switch - Off/On Contact - Blue/Red LED - 1' Lead
Bluewater 22mm Push Button Switch - Off/On Contact - Blue/Red LED - 1' Lead
SKU:OM-BLUEWATER-22MMPUSHBUTTON-905911131
Low stock: 3 left
Couldn't load pickup availability
Overview
Add illuminated Off/On control to your boat's dash with this Bluewater 22mm push button switch. Blue lighting helps you locate the button at night, then changes to red when the connected function is on.
Key features
- Standard Off/On contact provides switching for an onboard function.
- Blue-to-red LED indication lets you see the switch status at a glance.
- The switch body and supplied gasket provide IP69K waterproof protection.
- A 1-foot lead and four-wire harness provide wiring connections for installation.
Specifications
- Function: Off/On, standard contact
- Switch size: 22mm
- LED indication: Blue when off, red when on
- Switch rating: 20A, 12-24V DC
- Material: Stainless steel
- Waterproof rating: IP69K
- Lead length: 1 ft.
- Harness: 4-wire
- Rear identification mark: Red dot
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
- Mounting hole: 22mm
- Maximum mounting material thickness: 6mm
Good to know
A gasket is included. Installation requires a 22mm hole in mounting material no thicker than 6mm.
Specifications
| Action | ON-OFF |
|---|---|
| Color | Blue/Red |
| Brand | Bluewater |
| Manufacturer part # | 9059-1113-1 |
| Boxed dimensions | 6 x 1 x 1 in |
| Shipping weight | 0.21 lb |
