• Bluewater 22mm Inrush Switch OFF-(ON)
  • 113515
1 2

Bluewater

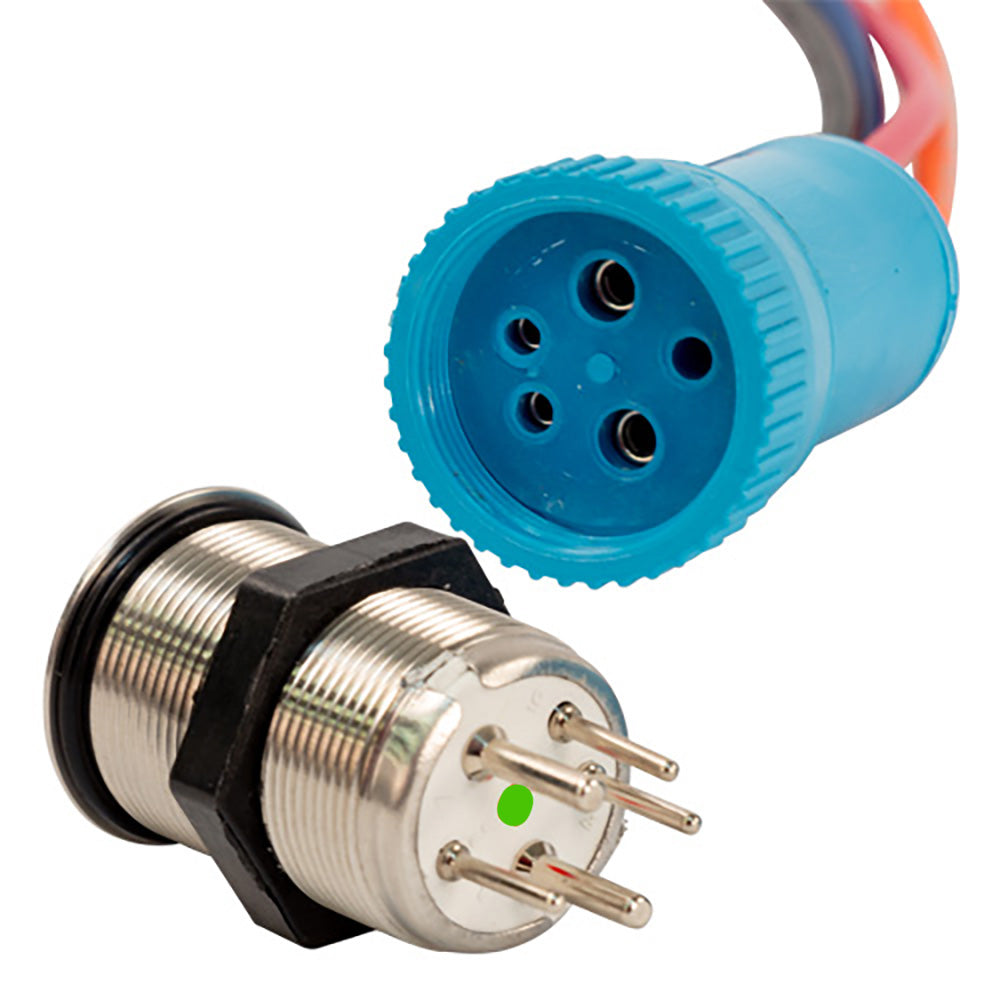

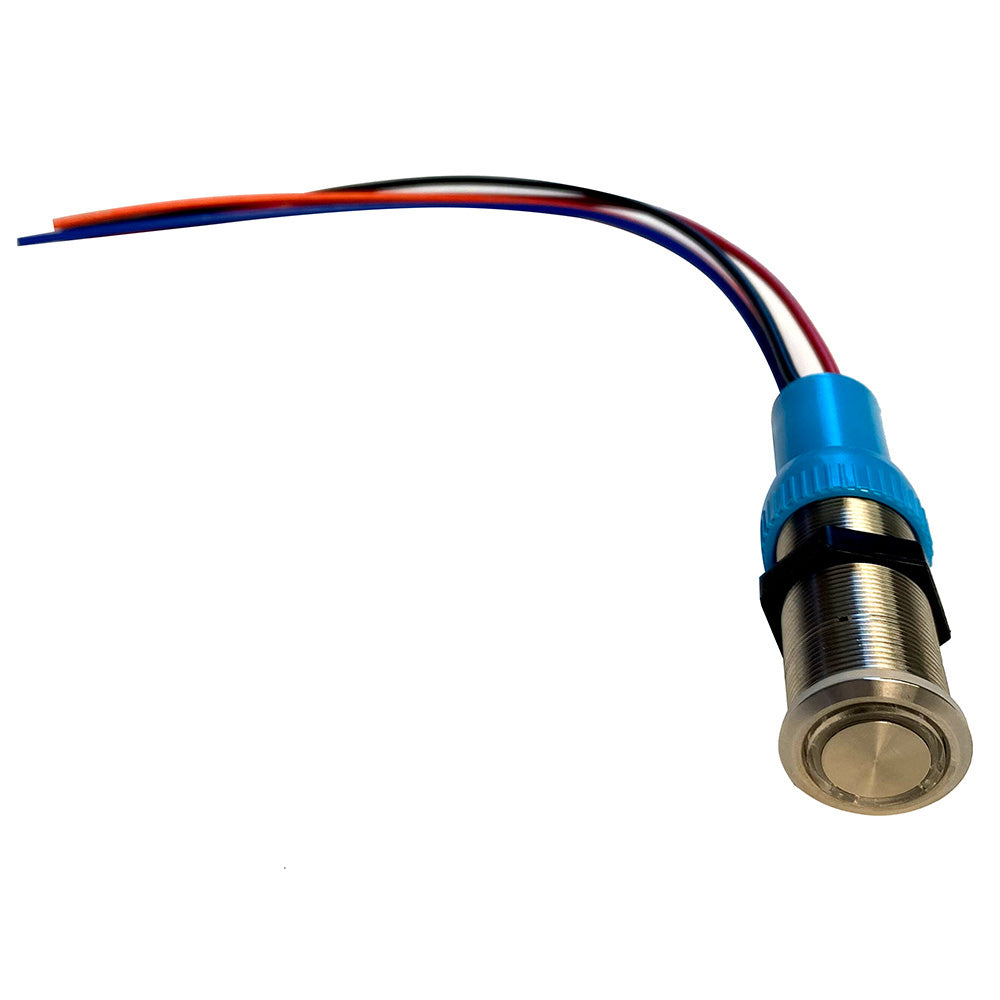

Bluewater 22mm Inrush Switch OFF-(ON)

Bluewater 22mm Inrush Switch OFF-(ON)

OM-BLUEWATER-22MMINRUSHSWIT-90592118

$47.04
$55.00 $47.04
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

(ON)-OFFAction

Control onboard electrical equipment with the Bluewater 22mm Inrush Switch OFF-(ON). It combines inrush protection with illuminated status indicators, helping boat owners see switch activity in low light.

Key features

  • Surge protection handles inrush loads up to 120A.
  • Blue LED backlighting helps you locate the switch at night, with red illumination indicating activity.
  • SS316 stainless steel construction and an IP69K waterproof rating support marine use.
  • Salt-spray and 20g shock testing address exposure and impacts encountered on board.
  • Supports a single channel at up to 20A or two channels at up to 10A each.

Specifications

  • Switch size: 22mm
  • Switch operation: OFF-(ON)
  • Maximum current, one channel: 20A
  • Maximum current, two channels: 10A per channel
  • Inrush surge protection: Up to 120A
  • Body material: SS316 stainless steel
  • Waterproof rating: IP69K
  • Salt-spray test: EN ISO 9227-17
  • Shock test: 20g
  • Flammability rating: UL 94 V2
  • Temperature resistance: Up to 105°C
  • Indicator colours: OFF blue, first ON red, second ON purple

Good to know

The LED changes to red automatically when the pump is running.

Specifications

Action(ON)-OFF
BrandBluewater
Manufacturer part #9059-2118
Boxed dimensions2 x 1 x 1 in
Shipping weight0.1 lb
