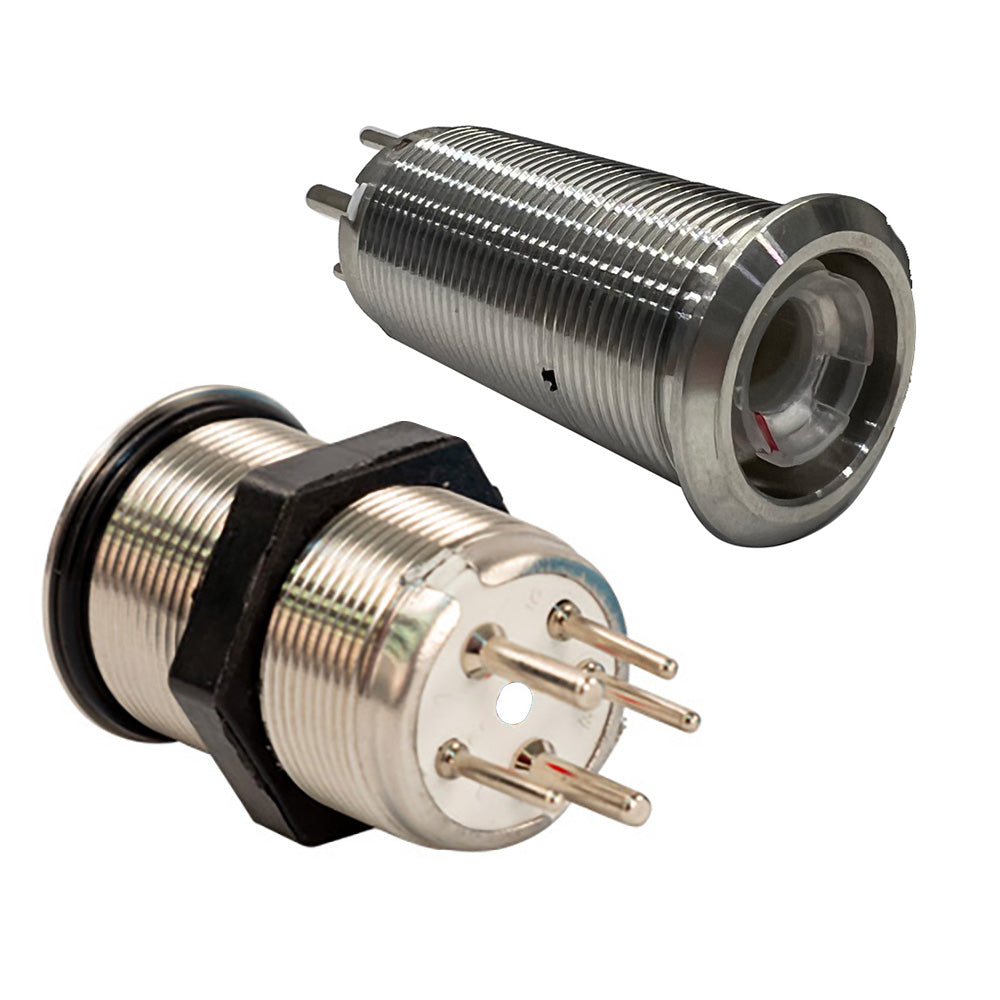

Bluewater 22mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only
Bluewater 22mm Inrush Push Button Switch Nav/Anchor Off/On/On - Blue/Green/Red LED - Switch Body Only
SKU:OM-BLUEWATER-22MMINRUSHPUSH-90593114
Low stock: 3 left
Couldn't load pickup availability
Overview
Bring Nav/Anchor Off/On/On control to your boat's panel with the Bluewater 9059 Series 22mm inrush push button switch body. Inrush protection supports equipment with high startup currents, while blue, green and red LEDs provide illuminated indication.
Key features
- Inrush protection accommodates surge currents from demanding onboard equipment.
- IP69K sealing with Bluewater's proprietary Deutsch-style connectors helps protect the switch against water.
- Blue LED backlighting makes the control visible at night.
- A detachable actuator allows the control's appearance and function to be customized.
- Resistance to salt spray, heat, vibration and shock suits marine operating conditions.
Specifications
- Series: 9059
- Function: Nav/Anchor Off/On/On
- Switch size: 22mm
- Switch rating: 20A, 12-24V DC
- Single-channel rating: 20A
- Dual-channel rating: 10A per channel
- Switch contacts: 1 NO, 1 NC | 2 NO, 2 NC
- Material: Nickel-plated brass / stainless steel
- LED colors: Blue, green and red
- Waterproof rating: IP69K with Bluewater proprietary Deutsch-style connectors
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
- Mounting hole: 22mm
- Maximum mounting material thickness: 6mm
Good to know
This listing is for the switch body only.
Specifications
| Action | ON-ON-OFF |
|---|---|
| Color | Blue/Green/Red |
| Brand | Bluewater |
| Manufacturer part # | 9059-3114 |
| UPC | 810196330900 |
| Boxed dimensions | 3 x 1 x 1 in |
| Shipping weight | 0.1 lb |
