Bluewater

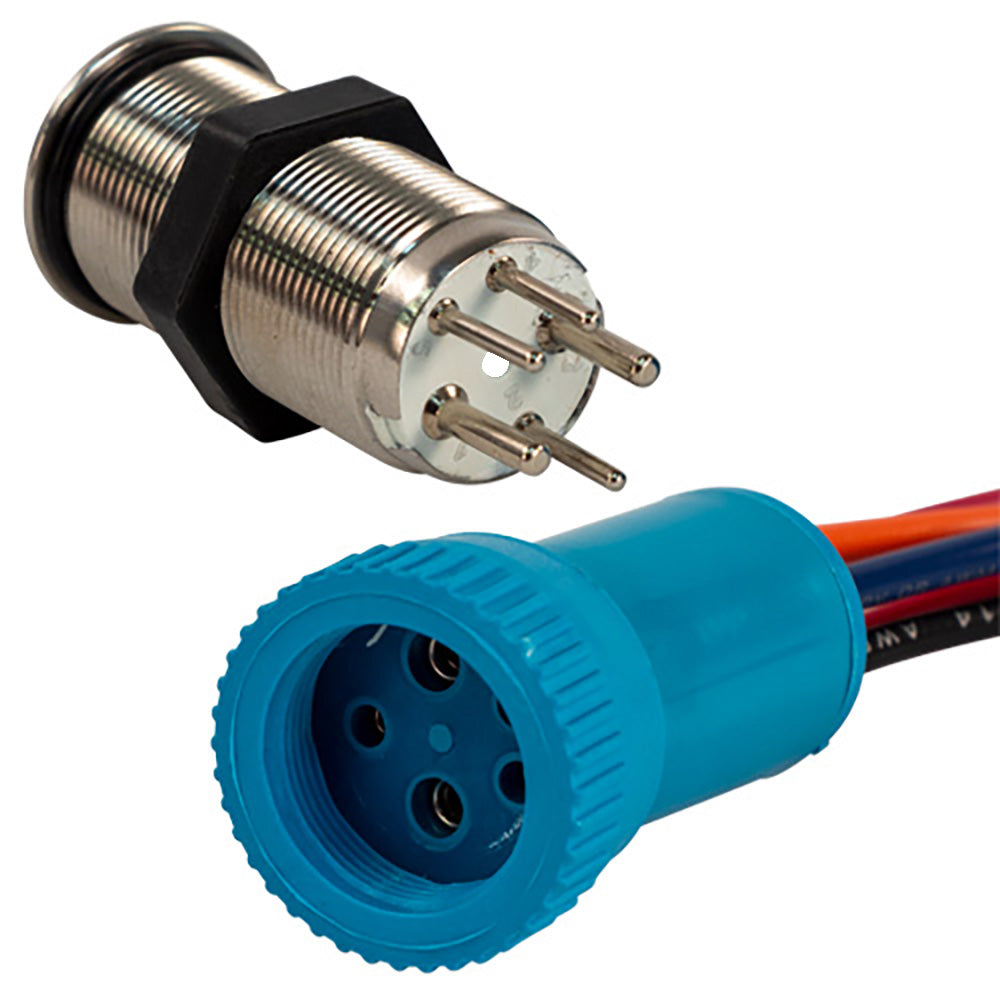

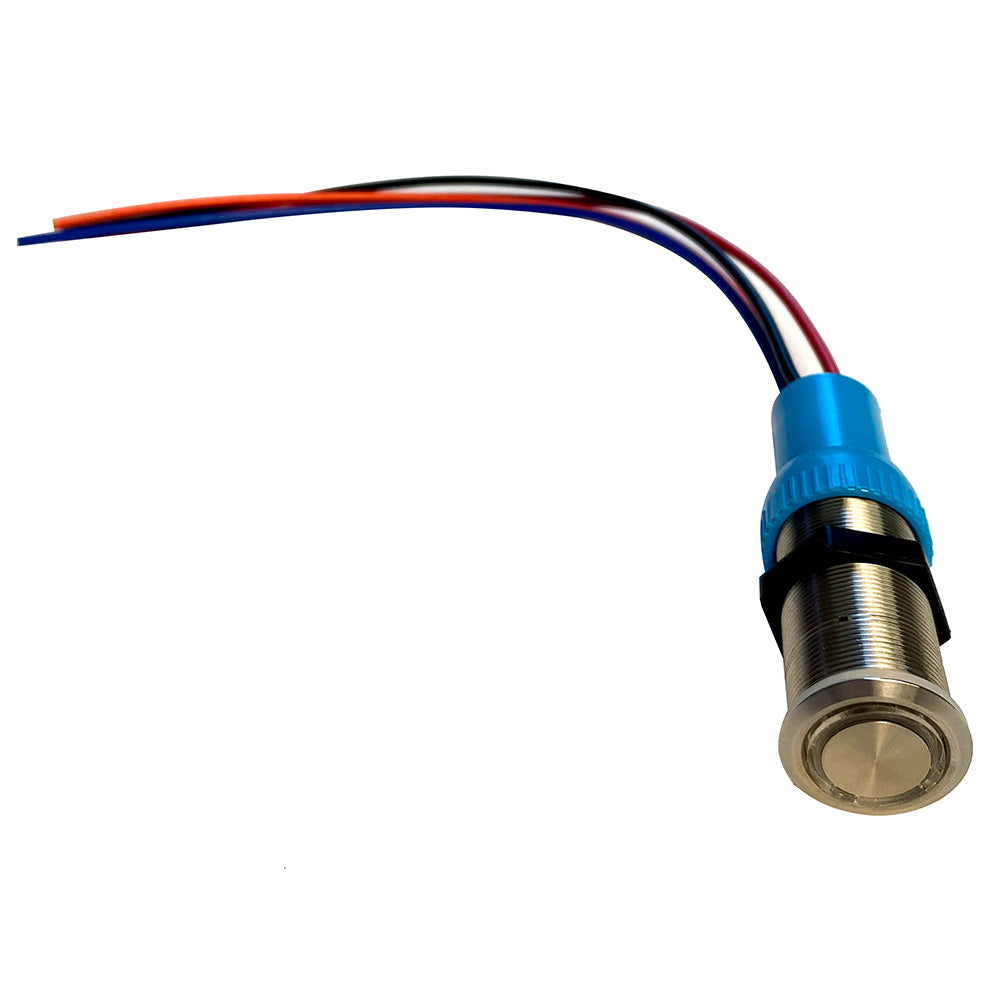

Bluewater 19mm Push Button Switch - OFF/ON/ON Nav/Anc Contact - Blue/Green/Red LED - 1' Lead
Bluewater 19mm Push Button Switch - OFF/ON/ON Nav/Anc Contact - Blue/Green/Red LED - 1' Lead
SKU:OM-BLUEWATER-19MMPUSHBUTTON-905731141
Low stock: 3 left
Couldn't load pickup availability
Overview
Add Nav/Anc control to your boat's dash with the Bluewater 19mm push button switch. Its OFF/ON/ON operation and blue, green and red LED indications let you check the selected state at a glance.
Key features
- LED backlighting helps you locate the button after dark.
- The switch body and supplied gasket provide an IP69K waterproof rating.
- A 1-foot lead provides length for making wiring connections behind the dash.
- Color-coded button contacts help identify connections during installation.
Specifications
- Contact function: Nav/Anc
- Switch sequence: OFF/ON/ON
- LED indication: Off—blue; first on—green; second on—red
- Switch rating: 15A, 12–24VDC
- Material: Stainless steel
- Lead length: 1 ft.
- Waterproof rating: IP69K with included gasket
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
- Mounting hole diameter: 19mm
- Maximum mounting material thickness: 6mm
- Connections: 3 button contacts and 2 LED contacts
- Rear marking: White dot
Good to know
Installation requires a 19mm drilled hole and separate connections for the button and LED. A gasket is included.
Specifications
| Action | ON-ON-OFF |
|---|---|
| Color | Blue/Green/Red |
| Brand | Bluewater |
| Manufacturer part # | 9057-3114-1 |
| Boxed dimensions | 8 x 4 x 1 in |
| Shipping weight | 1.61 lb |
