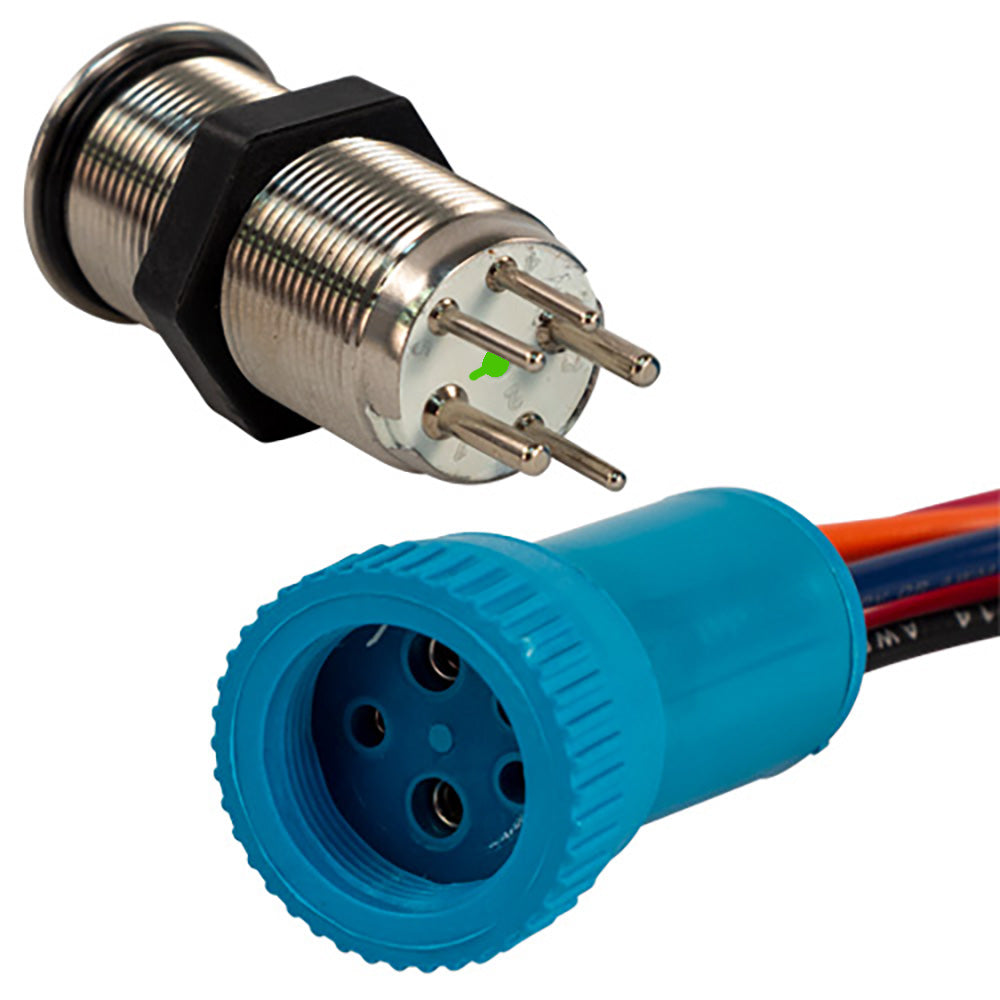

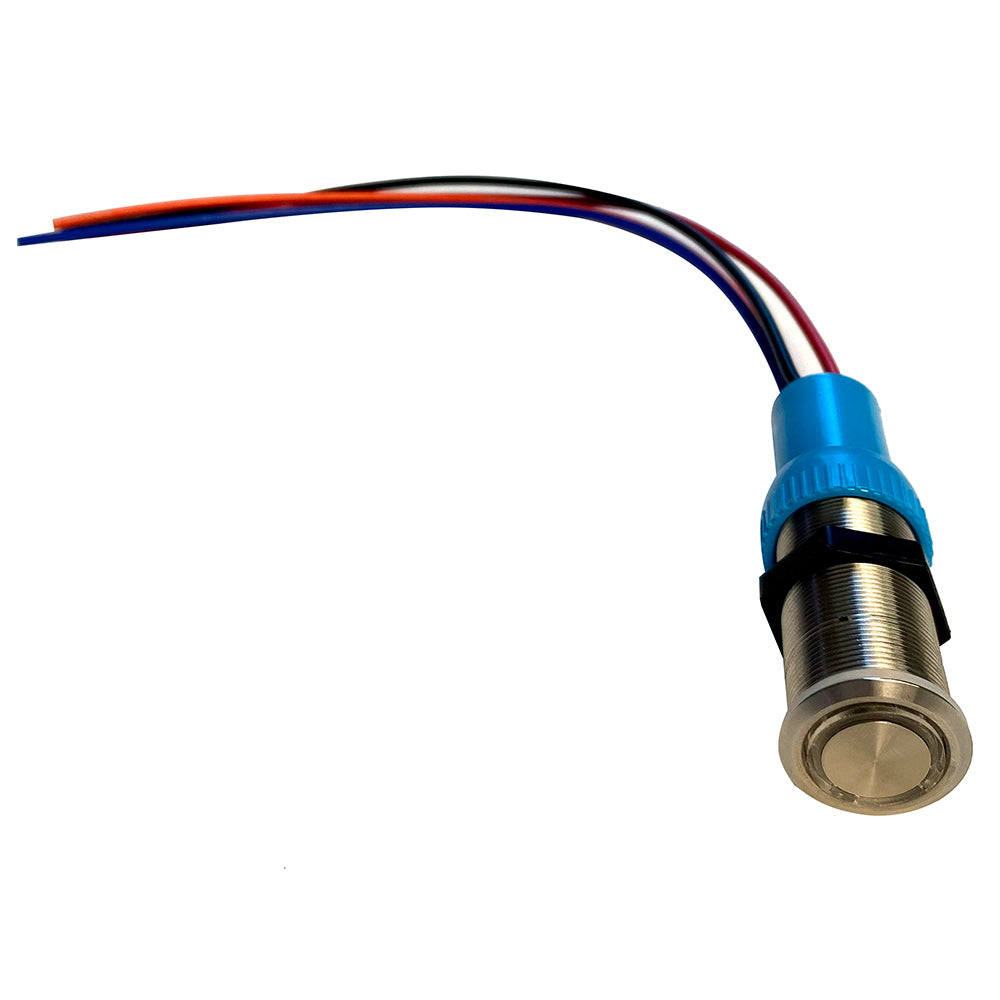

• Bluewater 19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1' Lead
  • 101926
1 2

Bluewater

Bluewater 19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1' Lead

Bluewater 19mm Push Button Switch - Off/(On)/(On) Double Momentary Contact - Blue/Green/Red LED - 1' Lead

OM-BLUEWATER-19MMPUSHBUTTON-905721231

$59.01
$63.00 $59.01
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 5 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

(ON)-(ON)-OFFAction
Blue/Green/RedColor

Bring double momentary control to your boat's dash with the Bluewater 19mm Off/(On)/(On) push button switch. Blue, green and red LED indication helps you distinguish off from the two on states.

Key features

  • Double momentary contacts provide two momentary on states in one button control.
  • Three LED colors give each switch state a distinct visual indication.
  • Backlighting helps you locate the control during nighttime use.
  • The body and included gasket provide IP69K protection against water.
  • Color-coded button contacts help with identifying the wiring connections.

Specifications

  • Contact function: Off/(On)/(On), double momentary
  • LED colors: Off blue; first on green; second on red
  • Switch rating: 15A, 12–24VDC
  • Button construction: Stainless-steel-plated metal
  • Waterproof rating: IP69K with included gasket
  • Lead length: 1 ft.
  • Mounting hole diameter: 19mm
  • Maximum mounting material thickness: 6mm
  • Mechanical life: 50,000 cycles
  • Electrical life: 10,000 cycles
  • Rear identification mark: Green dot with a line
  • Connections: 3 button contacts and 2 LED contacts

Good to know

A gasket comes with the switch. The button uses three contacts, while the LED requires two additional contact connections.

Specifications

Action(ON)-(ON)-OFF
ColorBlue/Green/Red
BrandBluewater
Manufacturer part #9057-2123-1
Boxed dimensions8 x 4 x 1 in
Shipping weight0.61 lb
