Bluewater

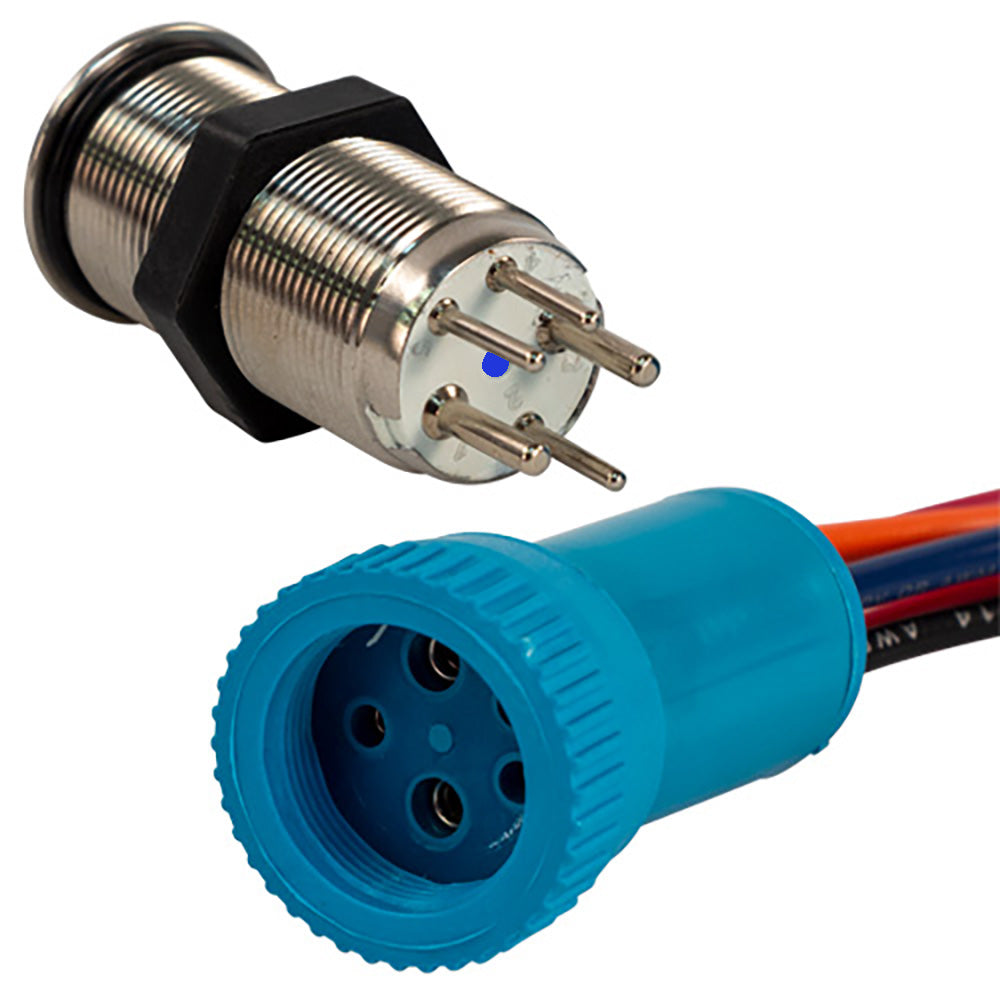

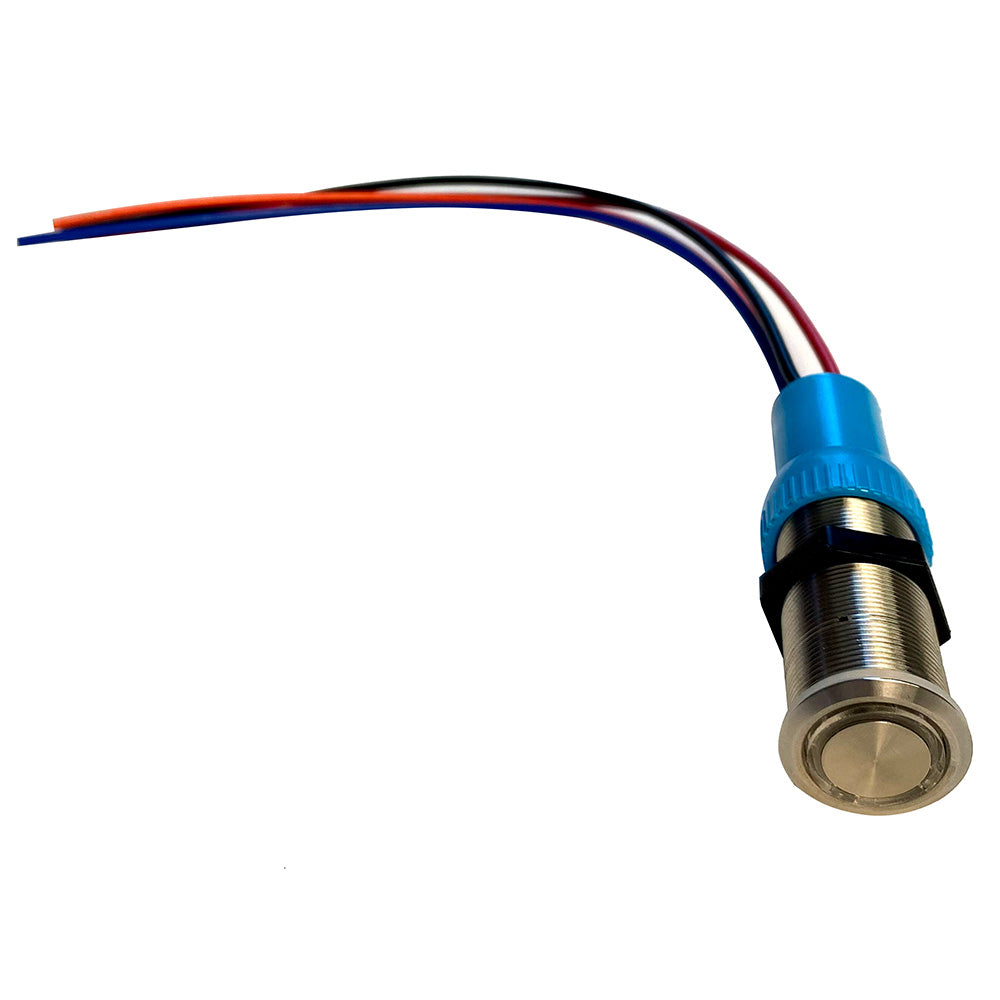

Bluewater 19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1' Lead
Bluewater 19mm Push Button Switch - Off/On/On Contact - Blue/Green/Red LED - 1' Lead
SKU:OM-BLUEWATER-19MMPUSHBUTTON-905731131
Low stock: 3 left
Couldn't load pickup availability
Overview
Manage an Off/On/On function at your boat's dash with the Bluewater 19mm push button switch. Its standard contacts pair with three LED colors, showing blue for off, green for the first on state and red for the second.
Key features
- Standard Off/On/On contacts provide two on states through one button control.
- Separate blue, green and red indications help you identify the selected state.
- LED backlighting makes the control easier to find at night.
- The supplied gasket and switch body together achieve IP69K water protection.
- Color-coded button contacts assist with wiring identification.
Specifications
- Contact function: Off/On/On, standard
- LED colors: Off blue; first on green; second on red
- Switch rating: 15A, 12–24VDC
- Button construction: Stainless-steel-plated metal
- Waterproof rating: IP69K with included gasket
- Lead length: 1 ft.
- Mounting hole diameter: 19mm
- Maximum mounting material thickness: 6mm
- Mechanical life: 50,000 cycles
- Electrical life: 10,000 cycles
- Rear identification mark: Blue dot
- Connections: 3 button contacts and 2 LED contacts
Good to know
Fit the switch into a 19mm hole in mounting material up to 6mm thick. A gasket is included, and installation requires connections to the three button contacts and two LED contacts.
Specifications
| Action | ON-ON-OFF |
|---|---|
| Color | Blue/Green/Red |
| Brand | Bluewater |
| Manufacturer part # | 9057-3113-1 |
| Boxed dimensions | 8 x 4 x 1 in |
| Shipping weight | 0.61 lb |
