• Bluewater 19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1' Lead
  • 101925
1 2

Bluewater

Bluewater 19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1' Lead

Bluewater 19mm Push Button Switch - Off/(On) Momentary Contact - Blue/Red LED - 1' Lead

OM-BLUEWATER-19MMPUSHBUTTON-905721131

$59.01
$63.00 $59.01
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

(ON)-OFFAction
Blue/RedColor

For a boat dash function that needs momentary control, the Bluewater 19mm push button switch provides an Off/(On) contact. Its blue LED backlight helps you locate the control after dark, changing to red when the function is active.

Key features

  • Momentary contact suits functions requiring temporary activation.
  • Blue and red illumination distinguishes the off and active states.
  • The included gasket works with the body to give the switch an IP69K waterproof rating.
  • Color-coded button contacts make connection points easier to identify.

Specifications

  • Contact function: Off/(On), momentary
  • LED colors: Blue when off; red when on
  • Switch rating: 15A, 12–24VDC
  • Button construction: Stainless-steel-plated metal
  • Waterproof rating: IP69K with included gasket

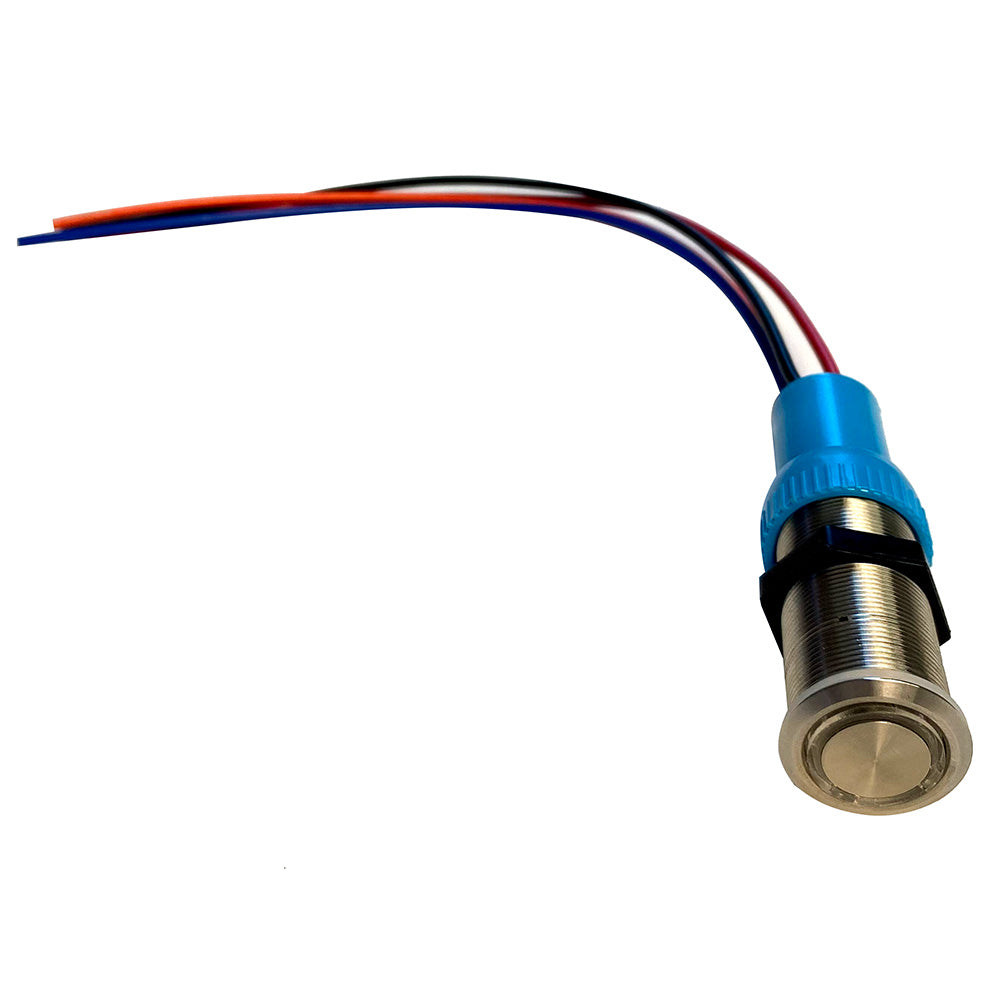

  • Lead length: 1 ft.
  • Mounting hole diameter: 19mm
  • Maximum mounting material thickness: 6mm
  • Mechanical life: 50,000 cycles
  • Electrical life: 10,000 cycles
  • Rear identification mark: Green dot

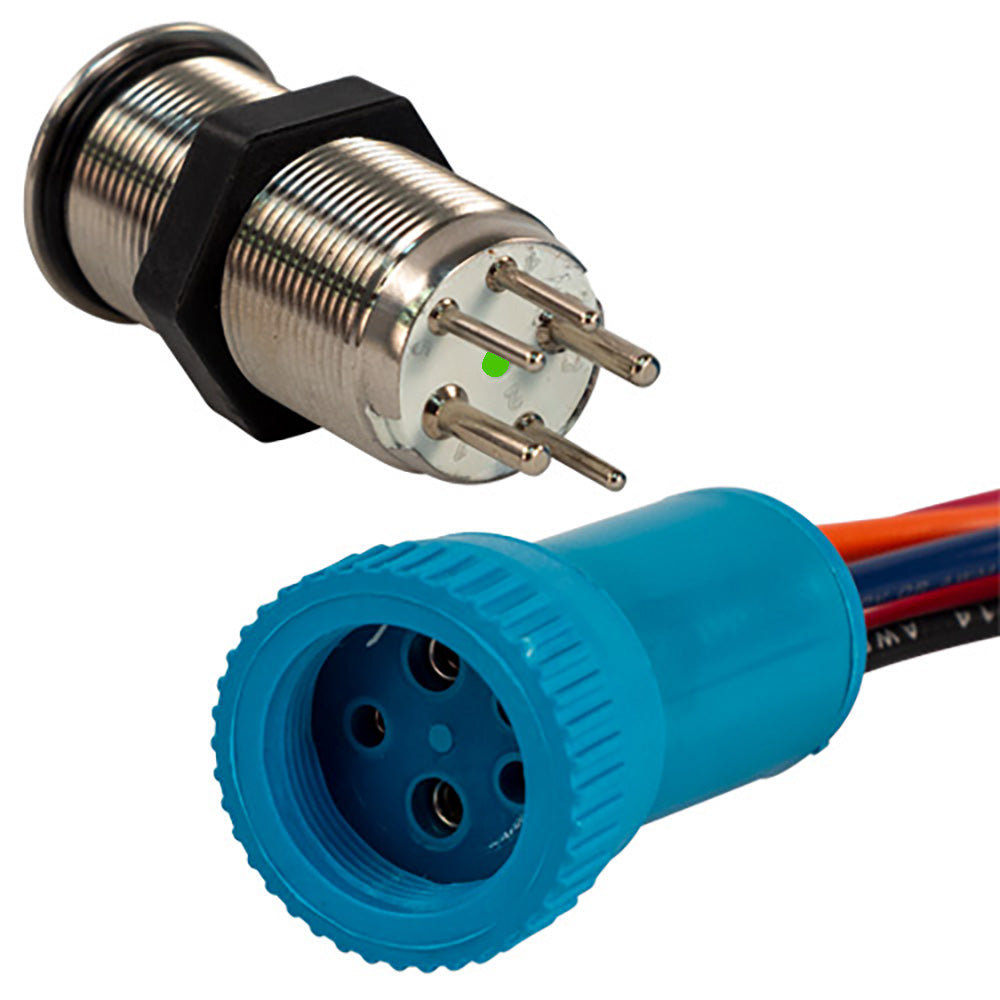

  • Connections: 3 button contacts and 2 LED contacts

Good to know

The supplied gasket forms part of the waterproof installation. Allow for a 19mm mounting hole in material no thicker than 6mm, with wiring for both the button and its LED.

Specifications

Action(ON)-OFF
ColorBlue/Red
BrandBluewater
Manufacturer part #9057-2113-1
Boxed dimensions6 x 1 x 1 in
Shipping weight0.21 lb
Country of originUNITED STATES
