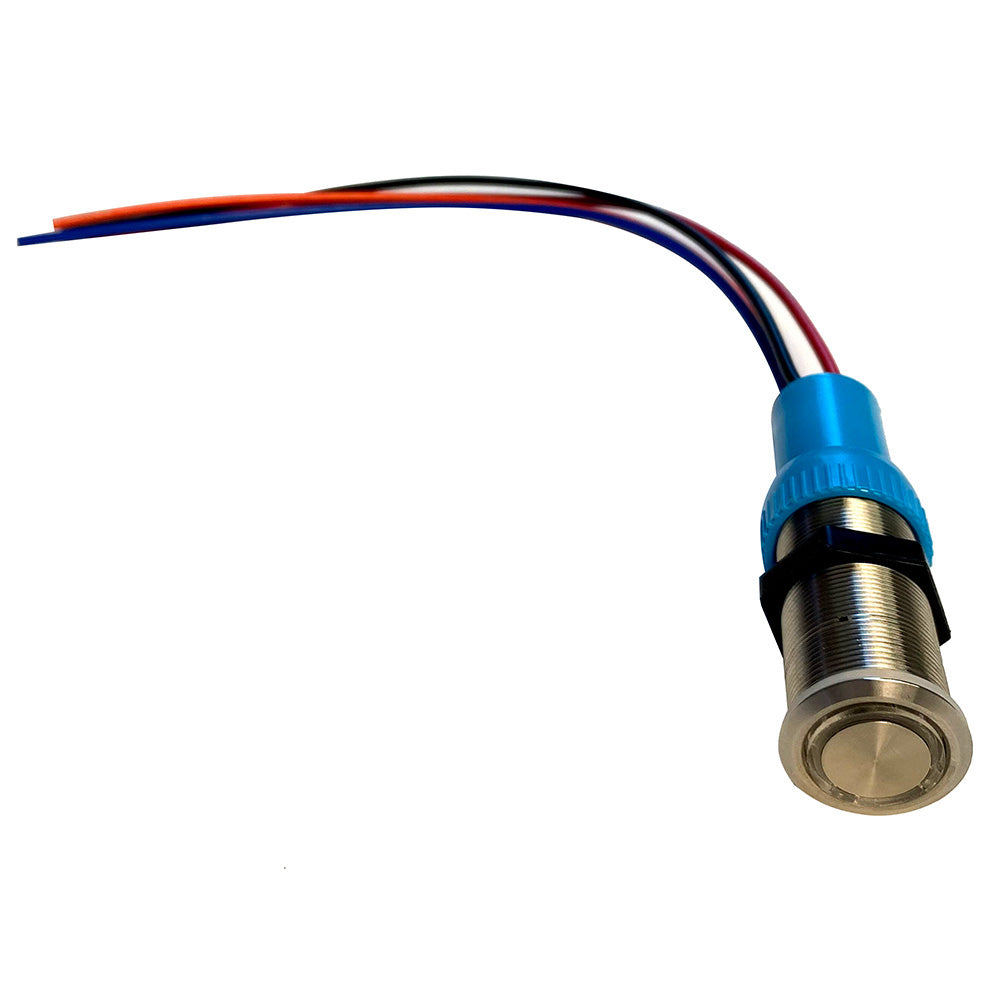

Bluewater 19mm Push Button Switch - Off/On Contact - Blue/Red LED - 4' Lead

Bluewater 19mm Push Button Switch - Off/On Contact - Blue/Red LED - 4' Lead

OM-BLUEWATER-19MMPUSHBUTTON-905711134

$68.28
$69.00 $68.28
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ON-OFFAction
Blue/RedColor

Add illuminated Off/On control to your boat's dash with Bluewater's 19mm push button switch. Blue backlighting helps you locate the button at night, and the light turns red when the controlled function is on.

Key features

  • Standard Off/On contacts provide control for an on/off function.
  • Two LED colors make the switch's off and on states easy to distinguish.
  • The included gasket works with the body to provide IP69K waterproof protection.
  • A 4 ft. lead gives you wiring reach behind the dash.
  • Color-coded button contacts help identify the connections during fitting.

Specifications

  • Switch size: 19mm
  • Contact function: Off/On, standard
  • LED colors: Blue off / red on
  • Switch rating: 15A, 12–24V DC
  • Material: Stainless steel
  • Waterproof rating: IP69K
  • Lead length: 4 ft.
  • Mechanical life: 50,000 cycles
  • Electrical life: 10,000 cycles
  • Rear identification mark: Red dot
  • Mounting hole diameter: 19mm
  • Maximum mounting material thickness: 6mm

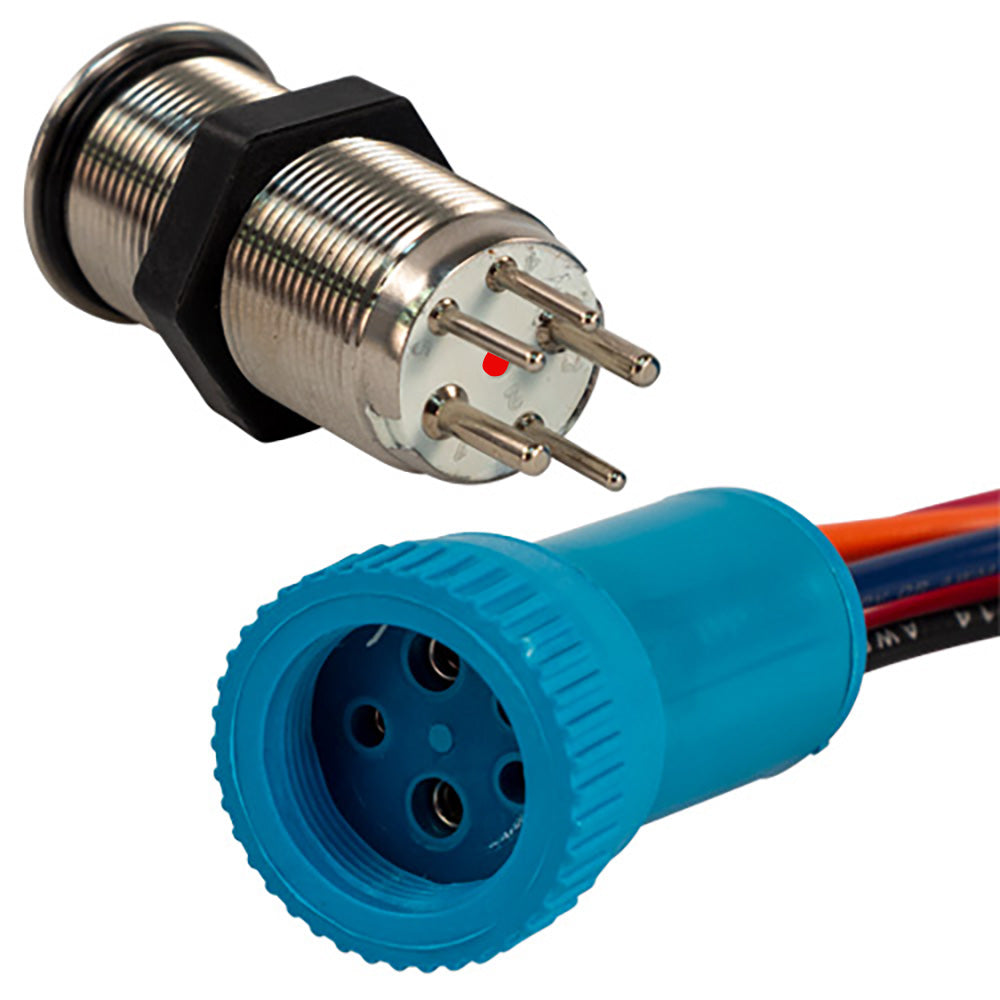

  • Connections: 3 button contacts and 2 LED contacts

Good to know

Fit the switch into a 19mm hole in mounting material up to 6mm thick. The gasket is supplied, and the button and LED use separate contact connections.

Specifications

ActionON-OFF
ColorBlue/Red
BrandBluewater
Manufacturer part #9057-1113-4
Boxed dimensions6 x 5 x 2 in
Shipping weight0.41 lb
