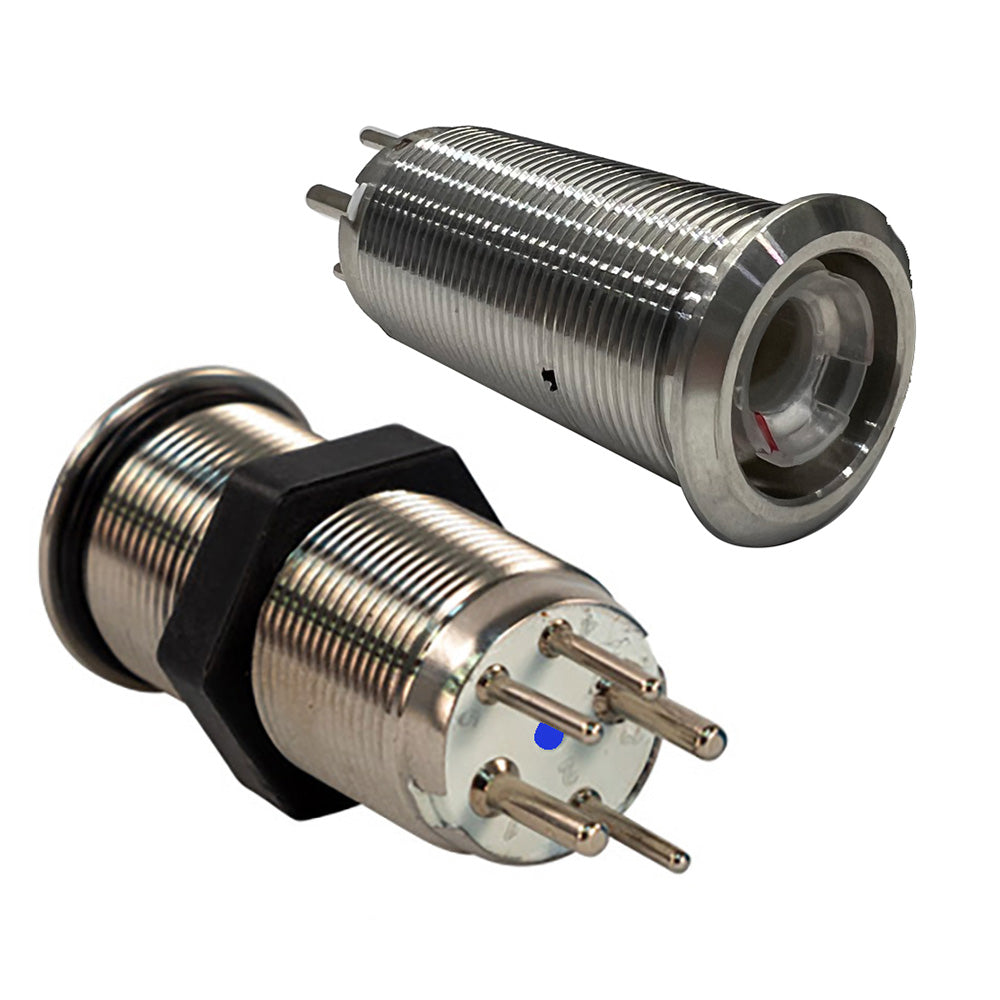

Bluewater 19mm Inrush Push Button Switch Off/On/On - Blue/Green/Red LED - Switch Body Only

Bluewater 19mm Inrush Push Button Switch Off/On/On - Blue/Green/Red LED - Switch Body Only

OM-BLUEWATER-19MMINRUSHPUSH-90573113

$45.11
$48.00 $45.11
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 5 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ON-ON-OFFAction
Blue/Green/RedColor

When panel space is limited, the Bluewater 9057 Series 19mm inrush push button switch body provides Off/On/On control in a compact format. Boat owners and marine installers can use its illuminated feedback to locate the control and check its active status.

Key features

  • Off/On/On operation provides the switching sequence specified for this model.
  • Blue illumination makes the control visible, with red lighting indicating an active state.
  • Bluewater's Deutsch-style connectors provide IP69K sealing for marine exposure, including salt spray and washdowns.
  • The actuator detaches fully to allow customization.
  • A 19mm mounting hole accommodates installation where panel space is tight.

Specifications

  • Series: 9057
  • Operation: Off/On/On
  • Switch rating: 15A, 12-24VDC
  • Single-channel current rating: 15A
  • Dual-channel current rating: 7.5A per channel
  • Switch contacts: 1 NO, 1 NC | 2 NO, 2 NC
  • Mechanical life: 50,000 cycles
  • Electrical life: 10,000 cycles
  • Waterproof rating: IP69K
  • LED colors: Blue, green and red
  • Mounting hole diameter: 19mm
  • Maximum panel thickness: 6mm

Good to know

Only the switch body is supplied under this listing. The installation instructions specify three color-coded contacts for the button and two contacts for the LED.

Specifications

ActionON-ON-OFF
ColorBlue/Green/Red
BrandBluewater
Manufacturer part #9057-3113
UPC810196330801
Boxed dimensions2 x 1 x 1 in
Shipping weight0.1 lb
