• Bluewater 19mm Inrush Push Button Switch Off/On - Blue/Red LED - Switch Body Only
1 1

Bluewater

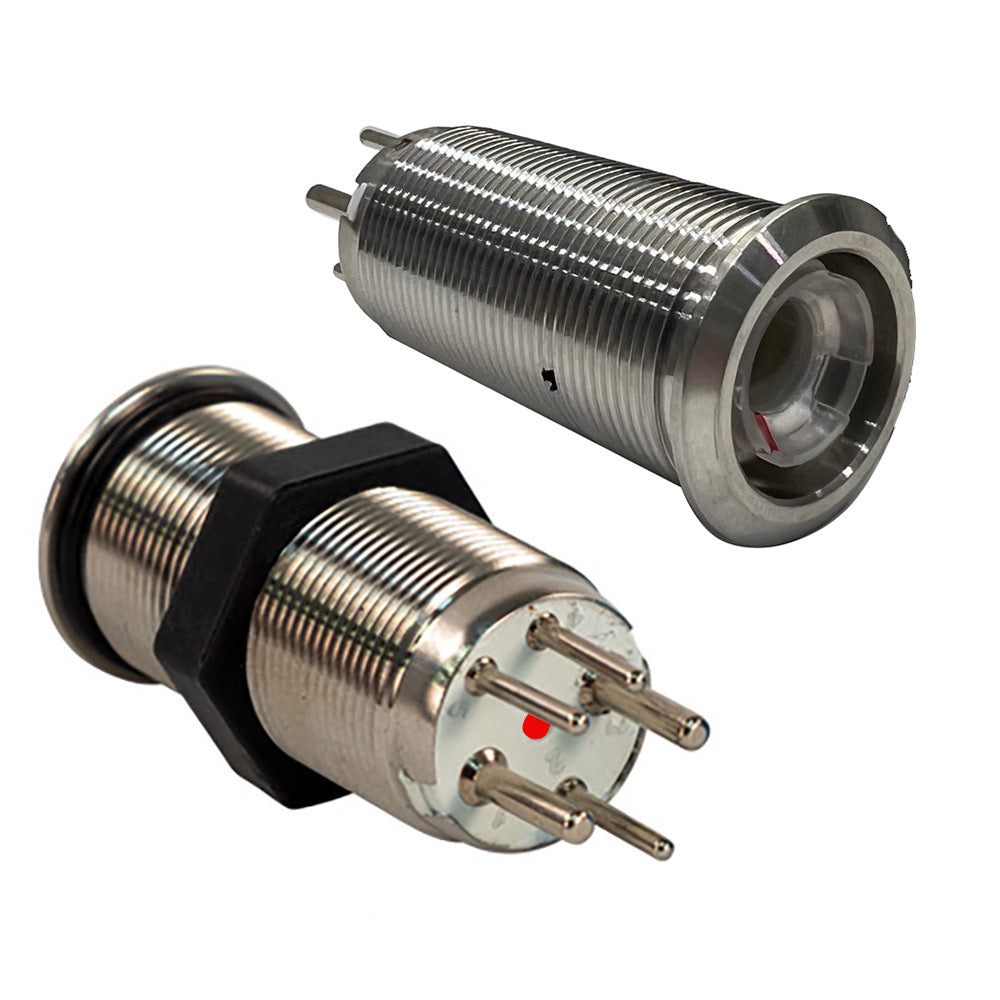

Bluewater 19mm Inrush Push Button Switch Off/On - Blue/Red LED - Switch Body Only

Bluewater 19mm Inrush Push Button Switch Off/On - Blue/Red LED - Switch Body Only

OM-BLUEWATER-19MMINRUSHPUSH-90571113

$45.11
$48.00 $45.11
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 5 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

ON-OFFAction
Blue/RedColor

Give a crowded boat panel an Off/On control with the Bluewater 9057 Series 19mm push button switch body. For marine electrical installations and upgrades, it combines blue backlighting with a red active indicator so you can see the control and check its status.

Key features

  • A 19mm mounting hole allows installation where panel space is limited.
  • Blue backlighting helps you locate the button, while red illumination indicates when it is active.
  • IP69K sealing with Bluewater's proprietary Deutsch-style connectors suits exposed marine locations.
  • The detachable actuator allows customization of the control.
  • Single- and dual-channel current ratings accommodate different electrical configurations.

Specifications

  • Series: 9057
  • Switch operation: Off/On
  • LED colors: Blue/red
  • Voltage: 12-24VDC
  • Current rating: 15A single channel; 7.5A per channel dual channel
  • Waterproof rating: IP69K
  • Mechanical life: 50,000 cycles
  • Electrical life: 10,000 cycles
  • Mounting hole diameter: 19mm
  • Maximum panel thickness: 6mm
  • Supply format: Switch body only

Good to know

Installation uses three color-coded button contacts and two LED contacts. Check the mounting panel thickness before drilling the 19mm hole.

Specifications

ActionON-OFF
ColorBlue/Red
BrandBluewater
Manufacturer part #9057-1113
UPC810196330757
Boxed dimensions2 x 1 x 1 in
Shipping weight0.1 lb
