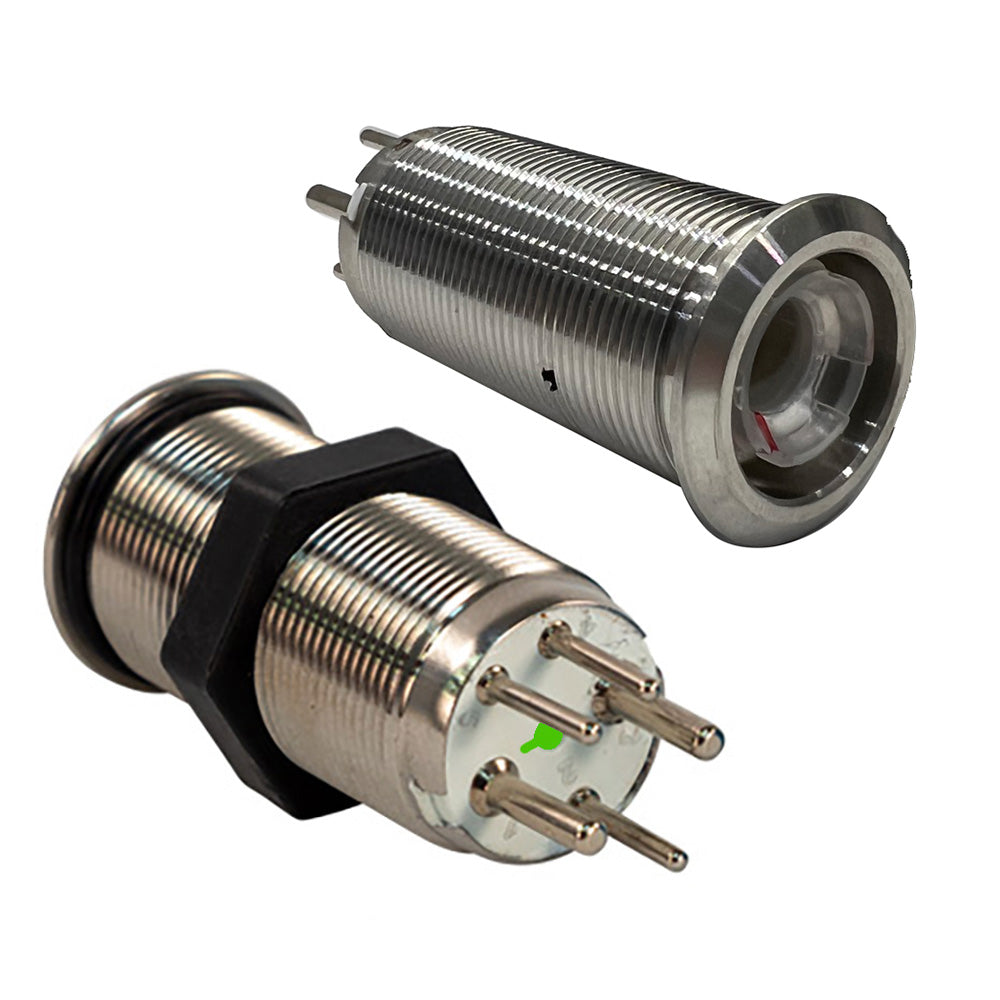

• Bluewater 19mm Inrush Push Button Switch Momentary Off(On)(On) - Blue/Red/Green LED - Switch Body Only
1 1

Bluewater

Bluewater 19mm Inrush Push Button Switch Momentary Off(On)(On) - Blue/Red/Green LED - Switch Body Only

Bluewater 19mm Inrush Push Button Switch Momentary Off(On)(On) - Blue/Red/Green LED - Switch Body Only

OM-BLUEWATER-19MMINRUSHPUSH-90572123

$45.11
$48.00 $45.11
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 5 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

(ON)-(ON)-OFFAction
Blue/Green/RedColor

Give a crowded marine electrical panel momentary control with the Bluewater 9057 Series 19mm inrush push button switch body. For boat builders, technicians and owners updating onboard controls, it combines Off(On)(On) operation with LED feedback in a compact format.

Key features

  • Momentary Off(On)(On) operation suits applications requiring momentary button control.
  • Blue backlighting helps you locate the switch, while red illumination shows when it is active.
  • IP69K sealing with Bluewater's Deutsch-style connectors suits exposure to salt spray and washdowns.
  • A detachable actuator allows customization of the control.
  • Single- and dual-channel current ratings support different electrical configurations.

Specifications

  • Series: 9057
  • Operation: Momentary Off(On)(On)
  • Switch rating: 15A, 12-24VDC
  • Single-channel current rating: 15A
  • Dual-channel current rating: 7.5A per channel
  • Switch contacts: 1 NO, 1 NC | 2 NO, 2 NC
  • Mechanical life: 50,000 cycles
  • Electrical life: 10,000 cycles
  • Waterproof rating: IP69K
  • LED colors: Blue, green and red
  • Mounting hole diameter: 19mm
  • Maximum panel thickness: 6mm

Good to know

This listing is for the switch body only. Installation uses three button contacts and two LED contacts; the button contacts are color coded.

Specifications

Action(ON)-(ON)-OFF
ColorBlue/Green/Red
BrandBluewater
Manufacturer part #9057-2123
Boxed dimensions2 x 1 x 1 in
Shipping weight0.1 lb
