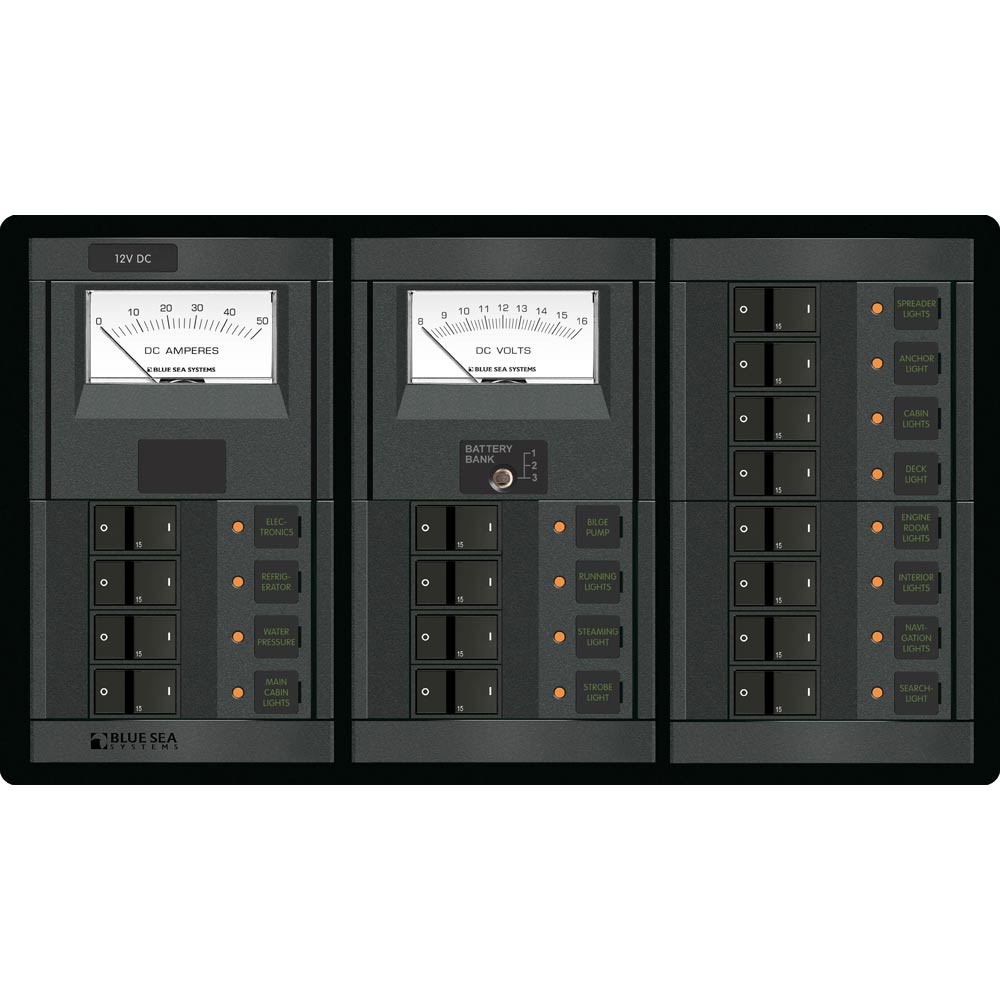

Blue Sea 1201 12V DC 16 Position - w/DC Analog Voltmeter & Ammeter

12 Volt DC 16 Position w/DC Analog Voltmeter & Ammeter

Features:

• 4 to 32 branch circuits with installed 15 Ampere circuit breakers

• Available with voltmeters, ammeters, and digital multimeters

• Includes 4205-Square Format Label Set

Specifications:

• Positions: 16

• Nominal Voltage: 12V DC

• Maximum Amperage*: 50A per bus

• Height: 7.75" (196.85mm)

• Width: 13.63" (346.2mm)

• Depth: 3.00" (76.2mm)

• Weight: 6.58lb (2.98kg)

* Maximum amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

Includes:
(16) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 8003 - DC Analog Voltmeter - 8 to 16V DC (Meter)
(1) - 8022 - DC Analog Ammeter - 0 to 50A with Shunt (Meter)
