Overview

7aAmperage

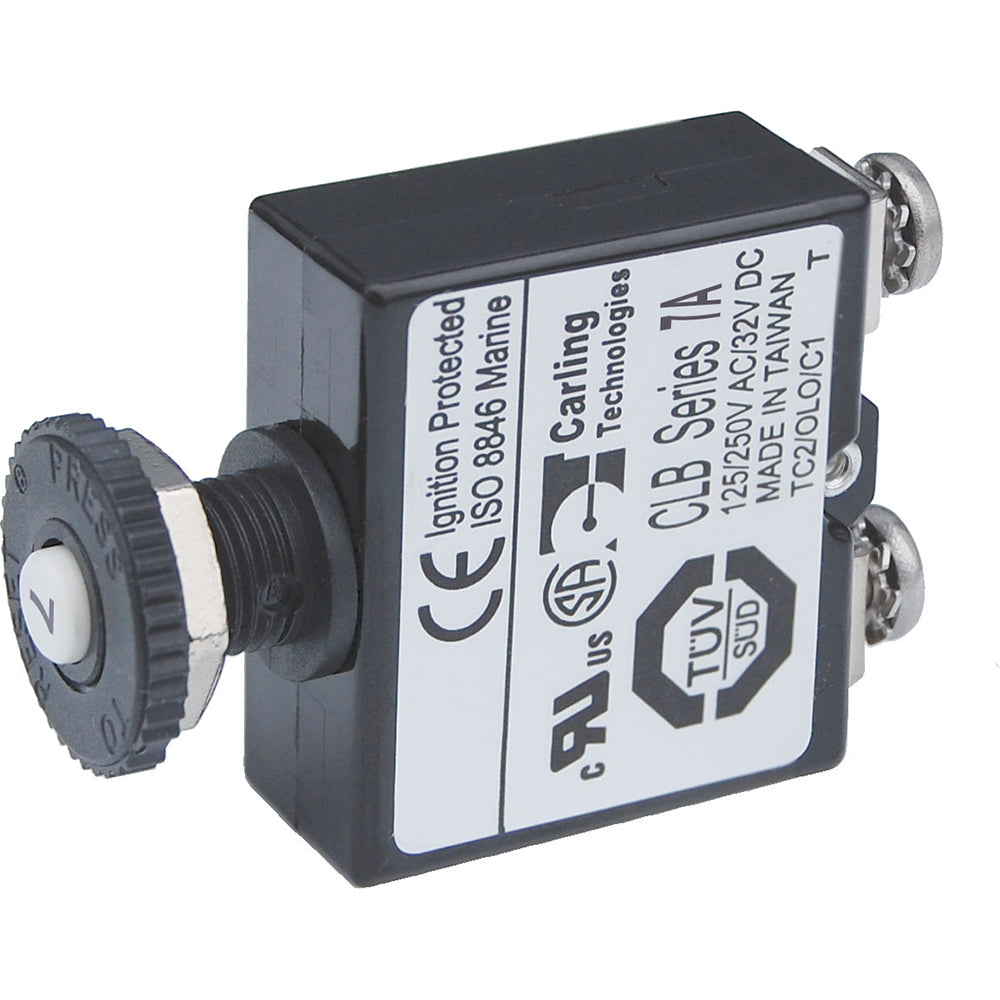

Protect a boat's branch circuit with this 7-amp Blue Sea Systems push-button circuit breaker. It uses a thermal trip mechanism with manual reset and is also suitable for circuits that need 24-hour protection.

Key features

  • Push-button reset allows manual resetting after a trip.
  • The trip-free mechanism prevents the breaker from being held on while fault current is present.
  • Ignition protection permits installation aboard gasoline-powered boats.
  • A compact body allows multiple protection devices to be arranged closely together.
  • Screw terminals provide the wiring connection points.
  • An optional waterproof boot adds protection in wet locations.

Specifications

  • Brand: Blue Sea Systems
  • Current rating: 7 A
  • Maximum voltage: 32 V DC
  • Mounting: Panel mount, 3/8-27 UNS
  • Breaker type: Thermal trip, manual push-button reset only
  • Terminal type: #8 screw
  • Interrupt capacity: 3000 A at 14.7 V / 2500 A at 28 V
  • Operating temperature: -10°C to 60°C
  • Screw terminal torque: 6 in-lb / 0.68 Nm
  • Weight: 0.09 lb / 0.04 kg

Good to know

The optional Push Button Waterproof Boot takes the place of the mounting dress nut and resists cracking and discoloration.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Amperage7a
BrandBlue Sea Systems
Manufacturer part #2131
UPC632085021313
Boxed dimensions5 x 3 x 1 in
Shipping weight0.1 lb
Country of originMEXICO
