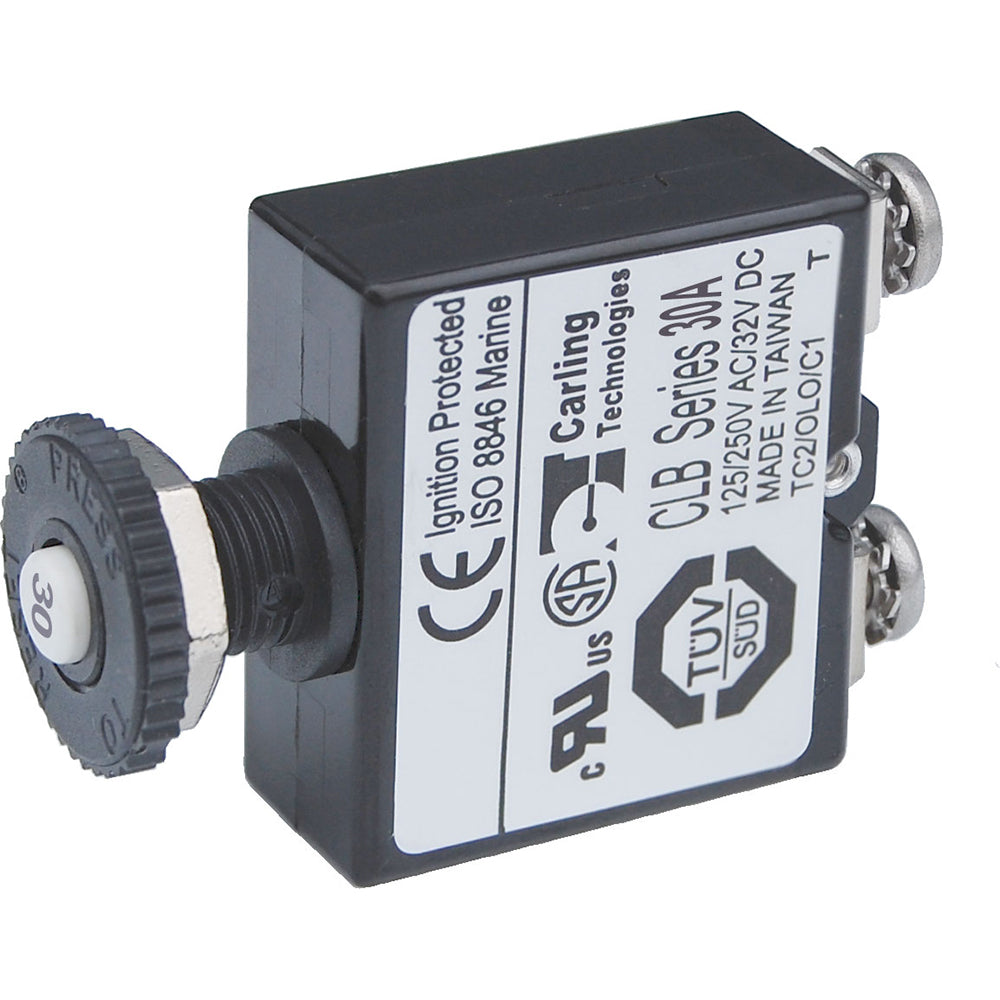

• Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 30 Amps
1 1

Blue Sea Systems

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 30 Amps

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 30 Amps

OM-BLUESEA-PUSHBUTTONRESE-2136

$18.52
$18.52
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 3 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

30aAmperage

The Blue Sea Systems Push Button Reset Only Circuit Breaker provides 30 amp DC branch circuit protection in a compact panel-mount format. It uses #8 screw terminals, manual push-button reset operation, and a trip-free design that cannot be held on during a fault.

  • Product type: Thermal trip circuit breaker
  • Amperage: 30A
  • Maximum voltage: 32V DC
  • Mounting: Panel mount, 3/8-27 UNS
  • Reset type: Manual push-button reset only
  • Terminal type: #8 screw terminal
  • Interrupt capacity: 3000A @ 14.7V / 2500A @ 28V
  • Operating temperature: -10°C to 60°C
  • Screw terminal torque: 6 in-lb (0.68 Nm)
  • Weight: 0.09 lb (0.04 kg)
  • Design: Trip-free operation cannot be held on during a fault current condition
  • Ignition protection: Safe for installation aboard gasoline powered boats
  • Panel compatibility: Used in Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Optional accessory: Push Button Waterproof Boot protects the breaker in wet environments, replaces the dress nut mounting, and resists discoloration and cracking
  • Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm

Specifications

Amperage30a
BrandBlue Sea Systems
Manufacturer part #2136
UPC632085021368
Boxed dimensions5 x 3 x 1 in
Shipping weight0.1 lb
Country of originMEXICO
