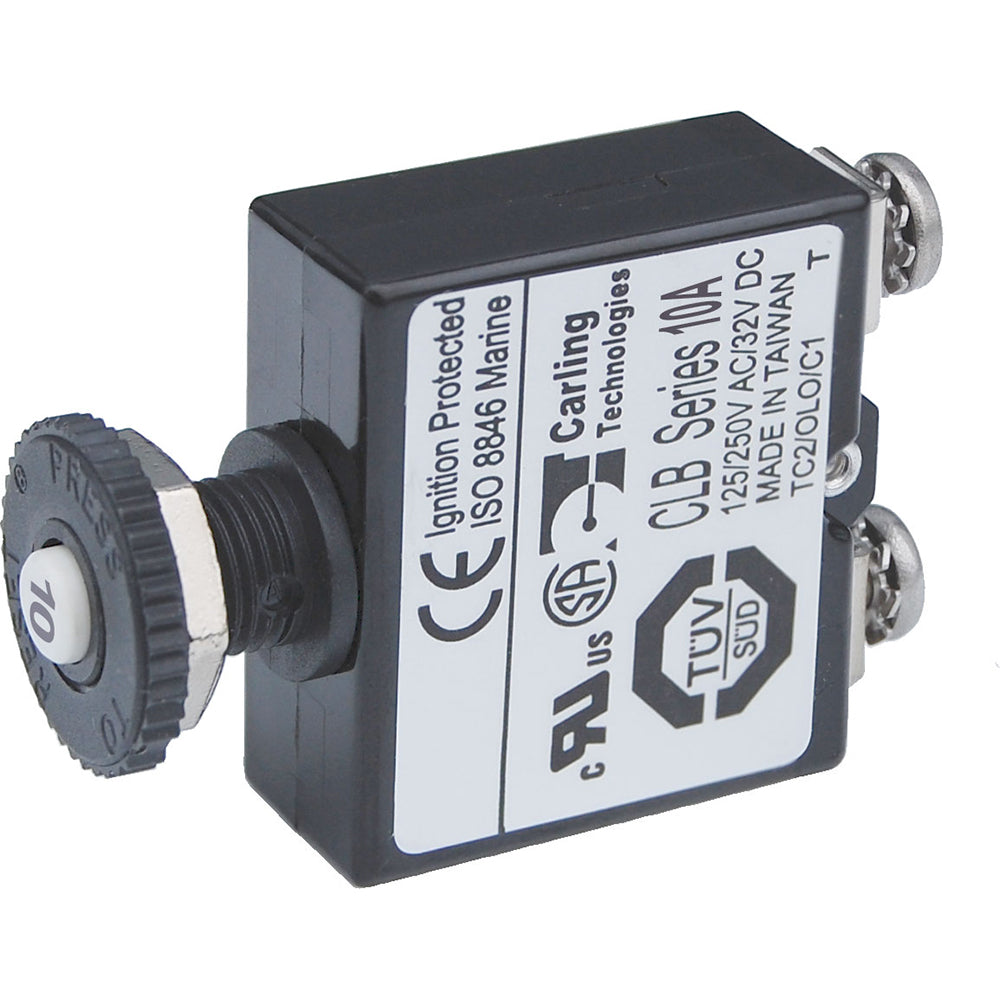

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 10 Amps

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 10 Amps

OM-BLUESEA-PUSHBUTTONRESE-2132

$18.52
$18.52
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 10 left
Free standard shipping · every U.S. order, no minimum
Sourced from authorized U.S. distributors
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

10aAmperage

Protect a boat's branch circuit with this 10-amp Blue Sea Systems circuit breaker. Its thermal trip and manual push-button reset suit branch or 24-hour circuit protection, while screw terminals provide the wiring connection.

Key features

  • Push-button operation provides a manual reset after the breaker trips.
  • Trip-free operation prevents the breaker from being held on during a fault.
  • Compact dimensions allow circuit protection to be arranged closely within a panel.
  • Ignition protection permits installation aboard gasoline-powered boats.
  • An optional waterproof boot adds protection in wet locations and resists cracking and discoloration.

Specifications

  • Current rating: 10A
  • Maximum voltage: 32V DC
  • Mounting: Panel mount, 3/8-27 UNS
  • Breaker operation: Thermal trip, manual push-button reset only
  • Terminals: #8 screw
  • Interrupt capacity: 3000A at 14.7V; 2500A at 28V
  • Operating temperature: -10°C to 60°C
  • Screw terminal torque: 6 in-lb (0.68 Nm)
  • Weight: 0.09 lb (0.04 kg)

Good to know

The optional push-button waterproof boot replaces the breaker's dress nut for mounting.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

Amperage10a
BrandBlue Sea Systems
Manufacturer part #2132
UPC632085021320
Boxed dimensions4 x 3 x 1 in
Shipping weight0.3 lb
Country of originMEXICO
