• Blue Sea PowerBar 1000 - 8 5/16" Terminal Studs w/Cover
  • 54615
1 2

Blue Sea Systems

Blue Sea PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

Blue Sea PowerBar 1000 - 8 5/16" Terminal Studs w/Cover

OM-BLUESEA-POWERBAR10008-1992

$154.20
$235.99 $154.20
Sale
FREE Standard Shipping On every U.S. order — no minimum. Faster delivery options are available at checkout for qualifying orders.

Low stock: 1 left
Free standard shipping · every U.S. order, no minimum
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments
View full details

Overview

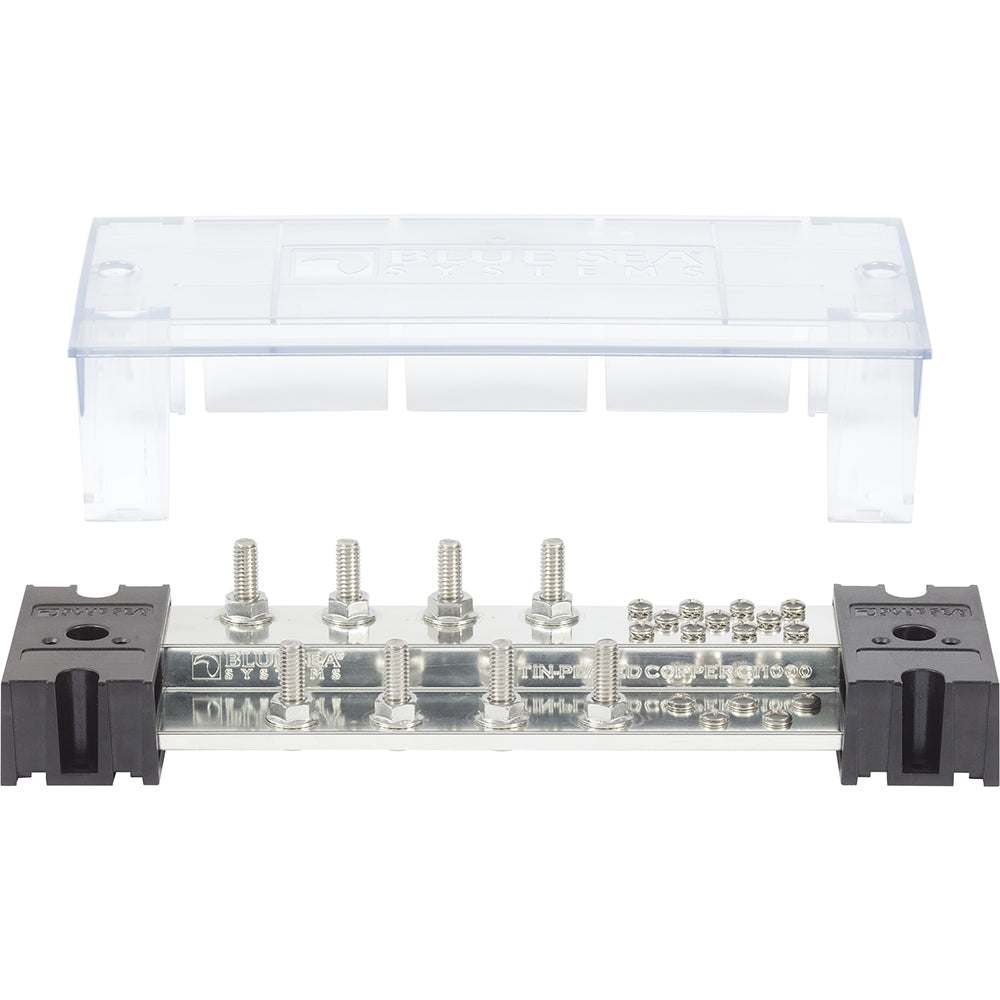

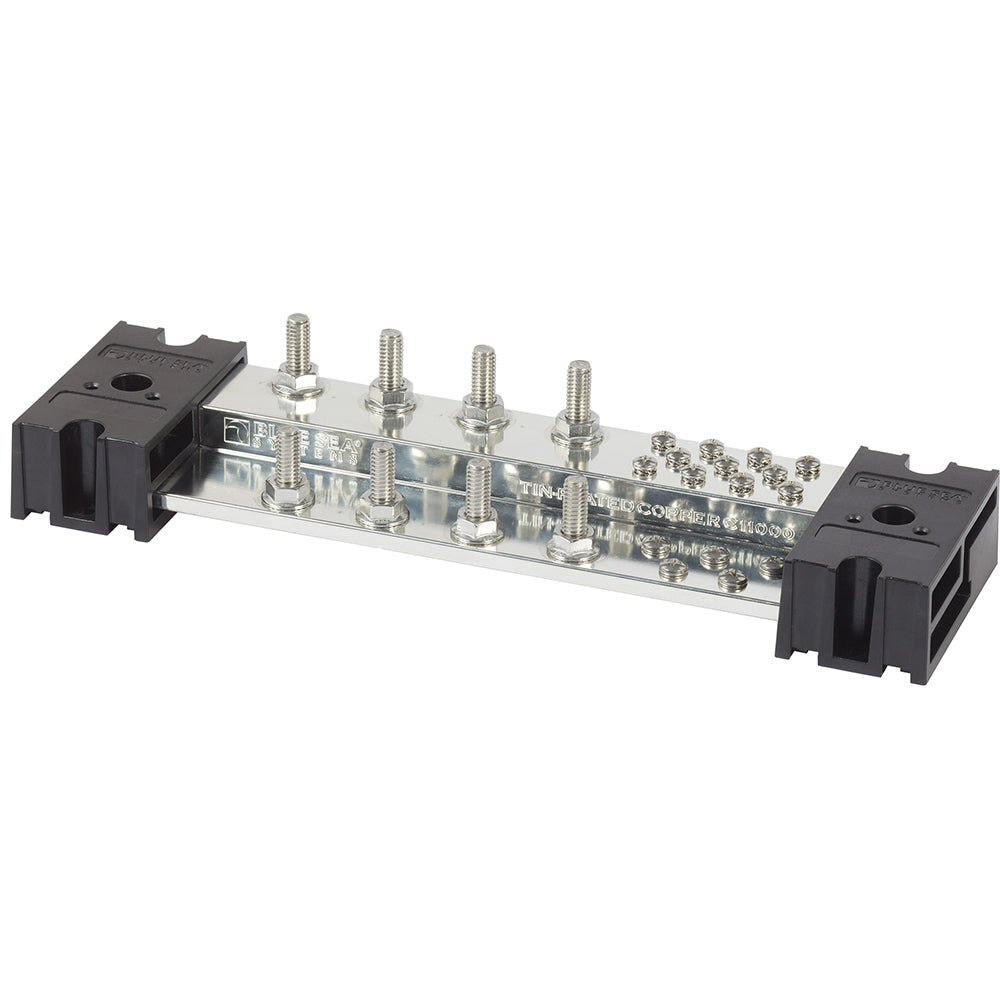

The Blue Sea Systems PowerBar 1000 is a high-capacity busbar for organizing large and small conductors in a complex electrical system. This version includes eight 5/16 in. terminal studs, smaller-wire screw positions, and a snap-on insulating cover.

  • Continuous rating: 1000A
  • Terminal studs: 8
  • Terminal stud size: 5/16 in.
  • Bus material: Tin-plated copper C11000
  • Mounting holes: Accept #10 (M5) screws
  • Small-wire connections: Stainless steel 8-32 screws with captive lock washers
  • Design: Stepped bus with two conductor elevations
  • Cover: Snap-on insulating cover with label recess
  • Compliance noted: Cover meets ABYC and USCG requirements
  • Configuration: Busbar may be cut shorter and end caps support ganging additional busbars

Specifications

BrandBlue Sea Systems
Manufacturer part #1992
UPC632085019921
Boxed dimensions16 x 5 x 3 in
Shipping weight4.1 lb
Country of originTH
