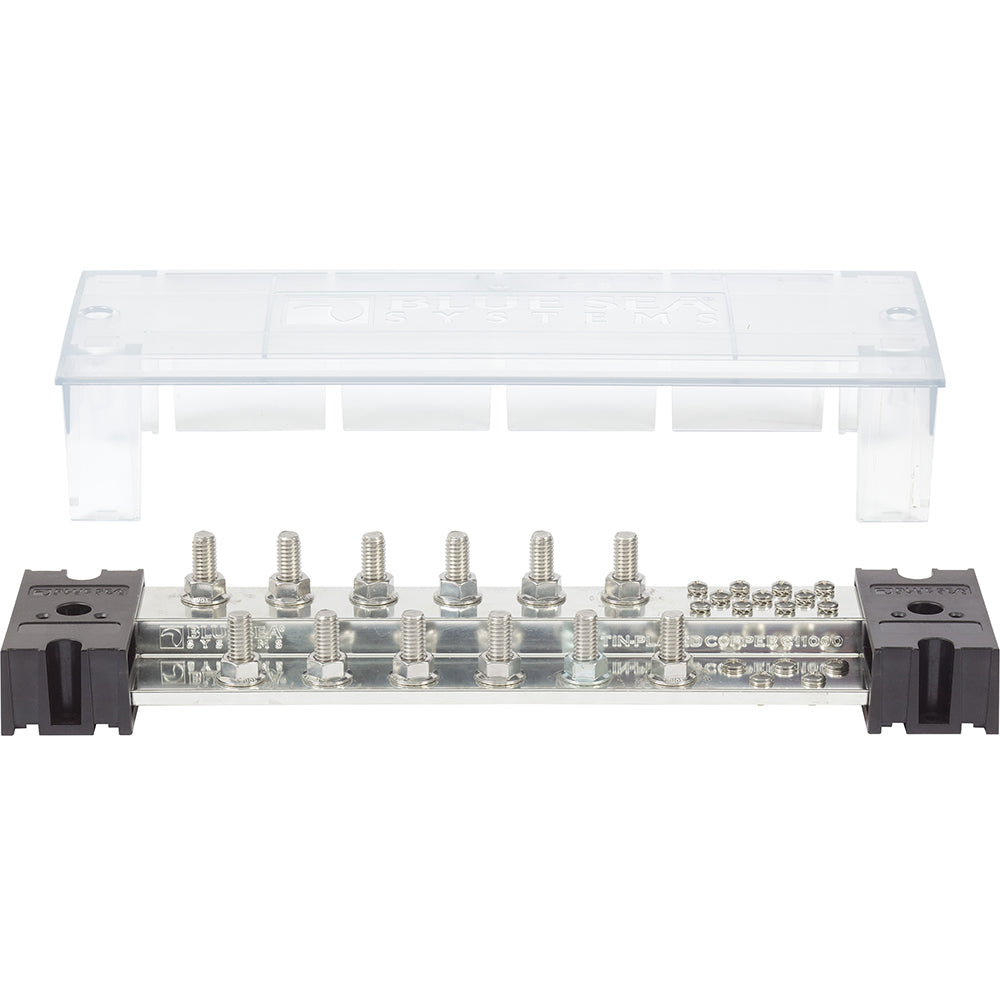

Blue Sea PowerBar 1000 - 12 3/8" Terminal Studs w/Cover

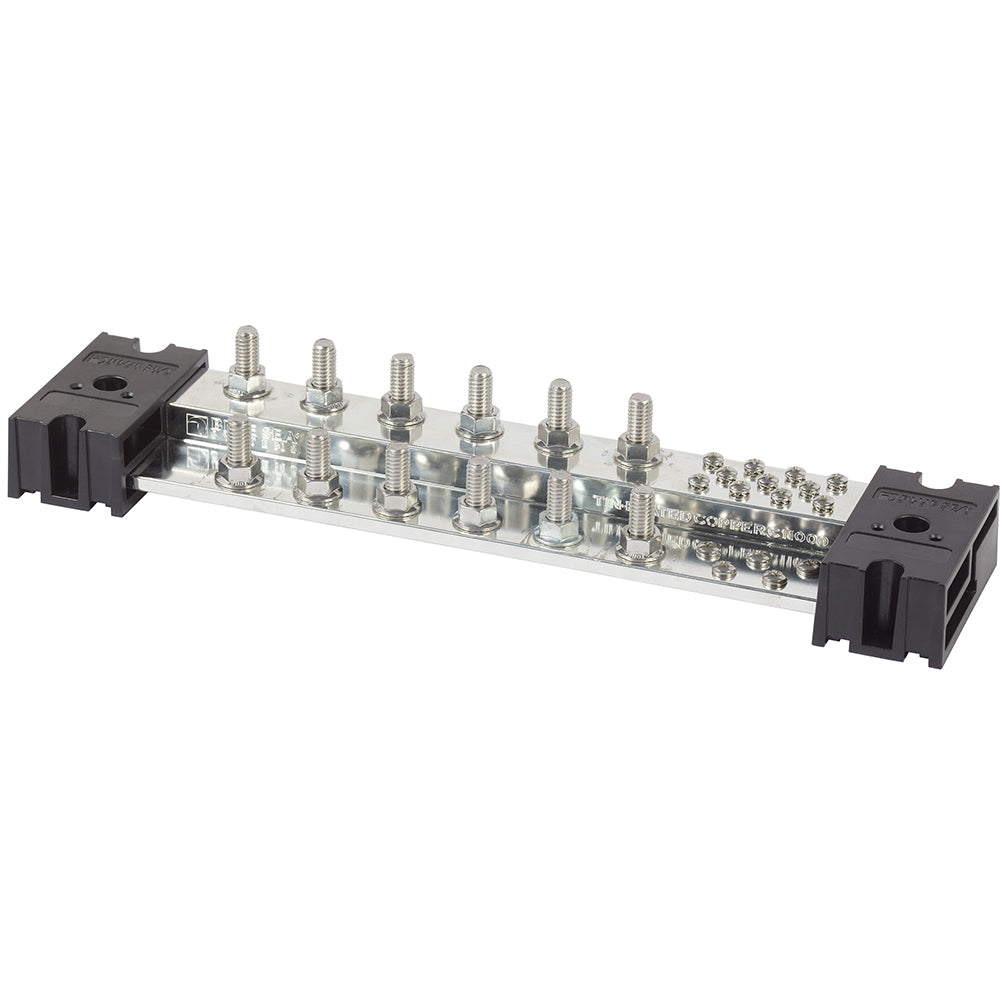

The Blue Sea Systems PowerBar 1000 is a high-capacity busbar for bringing multiple conductors together in demanding marine electrical systems. This version includes 12 terminal studs sized at 3/8 inch and comes with an insulating cover.

• Product type: 1,000 Amp busbar
• Terminal studs: 12
• Terminal stud size: 3/8 inch
• Continuous rating: 1000A
• Bus material: Tin-plated C11000 pure electrical copper
• Mounting holes: Accepts #10 (M5) screws
• Design: Stepped bus layout provides two conductor elevations
• Fuse block use: Busbar and fuse block elevations match common fuse blocks
• Included hardware: One-piece serrated flange nuts
• Small wire attachment: Stainless steel 8-32 screws with captive lock washers
• Cover: Snap-on insulating cover with label recess
• Standards note: Cover meets ABYC and USCG requirements
• Installation flexibility: Busbar may be cut shorter for tight spaces
• Expansion: Bi-directional end caps allow additional busbars to be ganged
• Warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
