• Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A
1 1

Blue Sea Systems

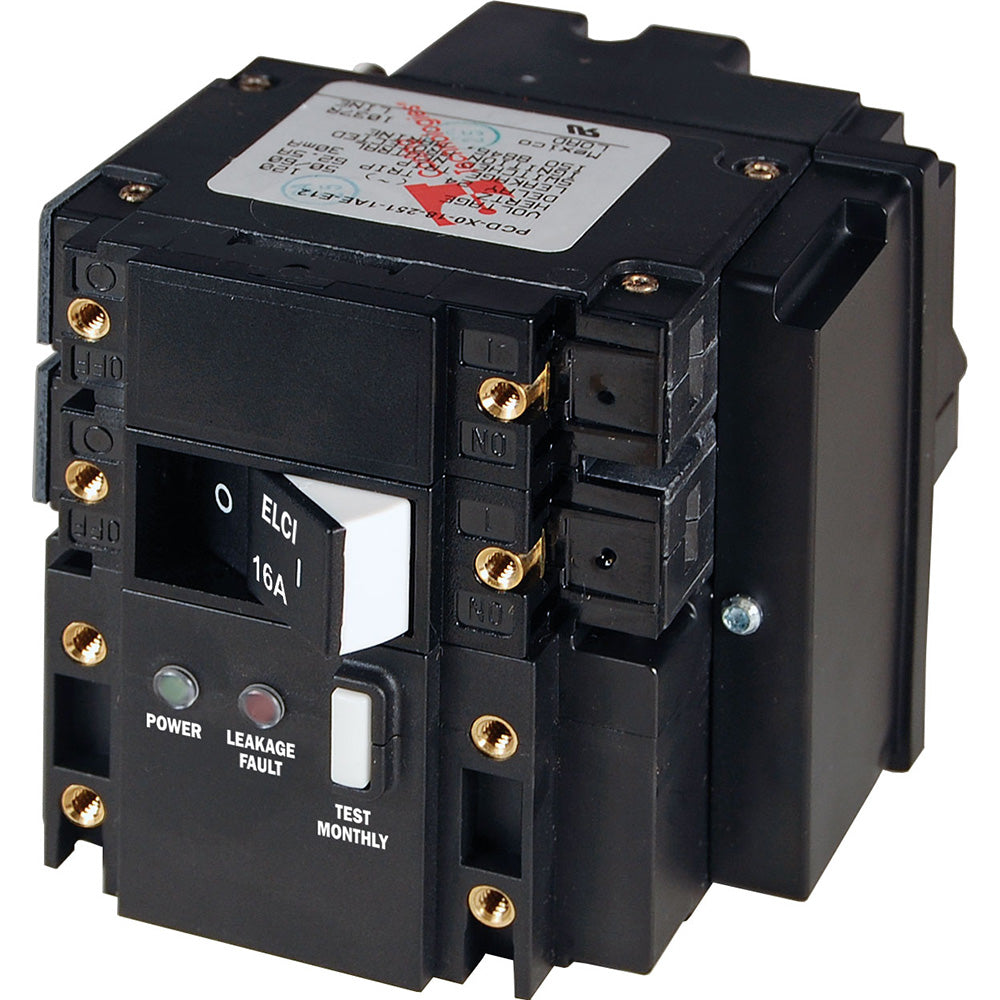

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

Blue Sea C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

108094

$1,114.99 USD
$1,114.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 1 left
Authorized Blue Sea Systems Dealer
Genuine product · full manufacturer warranty
Secure checkout via Shopify Payments

C-Series ELCI Main Circuit Breaker - Double Pole 230V AC 16A

Features:

  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 16A
  • Actuator Style: Flat rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Maximum Voltage: 240V AC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Maximum Operating Temperature: 66 degrees C
  • Leakage Trip Amps: 30mA
  • Mounting Screw: #6-32 Stainless Steel
  • Mounting Screw Torque: 6in-lb (0.68 Nm)
  • Switching Cycles: 10000
  • Weight: 0.90 lbs (0.41kg)
