Overview

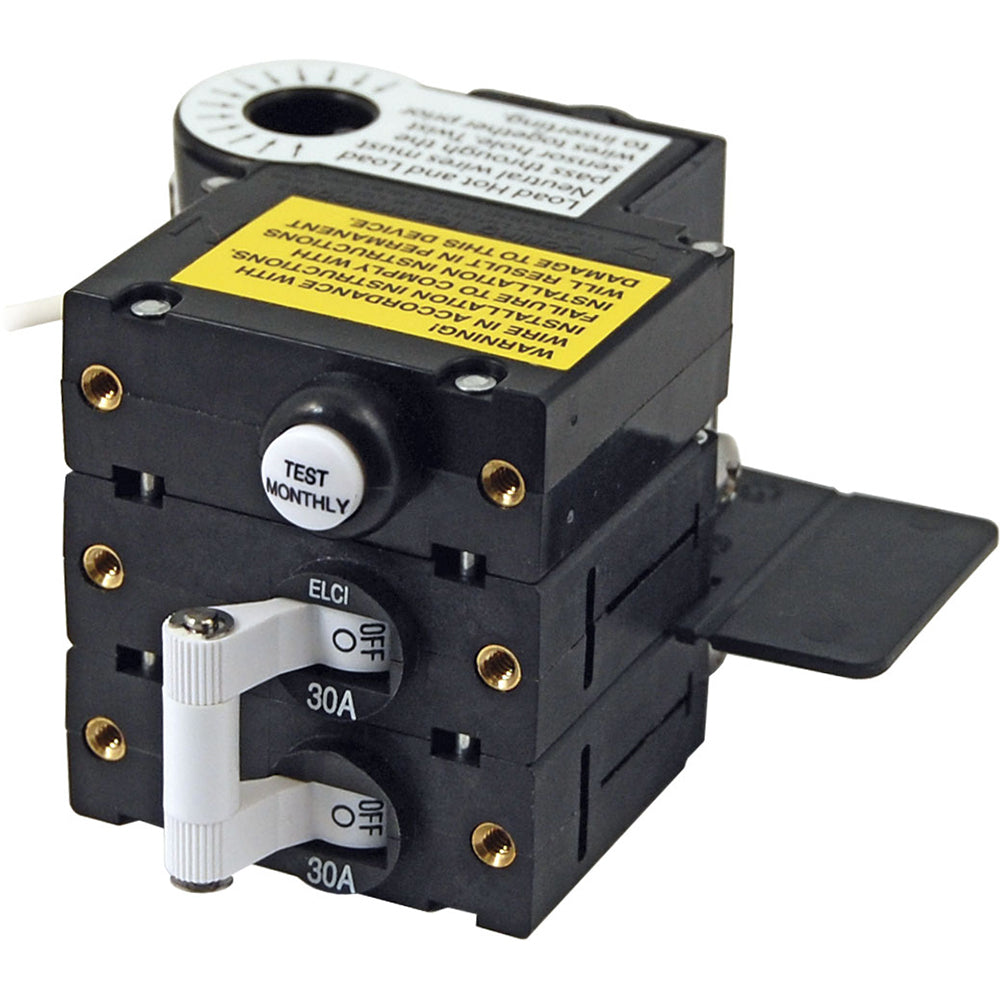

Protect a boat's power distribution circuit with the Blue Sea Systems A-Series ELCI main circuit breaker. This double-pole, 30A breaker trips in response to a short circuit, overload or leakage to ground and mounts through the front of a distribution panel.

Key features

  • Trips on short circuits and overloads to interrupt the affected circuit.
  • Ground-leakage detection adds a trip response at 30mA.
  • A front-panel mounting arrangement puts the toggle at the distribution panel.
  • The trip-free mechanism allows the breaker to trip even if the toggle is held on.

Specifications

  • Series: A-Series ELCI
  • Application: Main circuit breaker
  • Title voltage: 120V AC
  • Amperage: 30A
  • Poles: 2
  • Maximum voltage: 240VAC / 120VAC per pole
  • Breaker type: Magnetic hydraulic, trip-free
  • Interrupt capacity: 5000A
  • Leakage trip current: 30mA
  • Ignition protected: Yes
  • Actuator: Toggle
  • Color: White
  • Operating temperature: -35°C to 65°C
  • Mounting: Front panel, in a power distribution panel

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov .

Specifications

BrandBlue Sea Systems
Manufacturer part #3106100
UPC632085310615
Boxed dimensions6 x 5 x 4 in
Shipping weight0.8 lb
Country of originMEXICO
